Operation principle and hardware description
5
FlashDrop connection
6
EMC filter grounding screw (EMC)
7
Varistor grounding screw (VAR)
8
I/O connections
9
Input power connection (U1, V1, W1), brake resistor
connection (BRK+, BRK-) and motor connection (U2,
V2, W2)
10
I/O clamping plate
11
Clamping plate
12
Clamps
Product overview
Layout

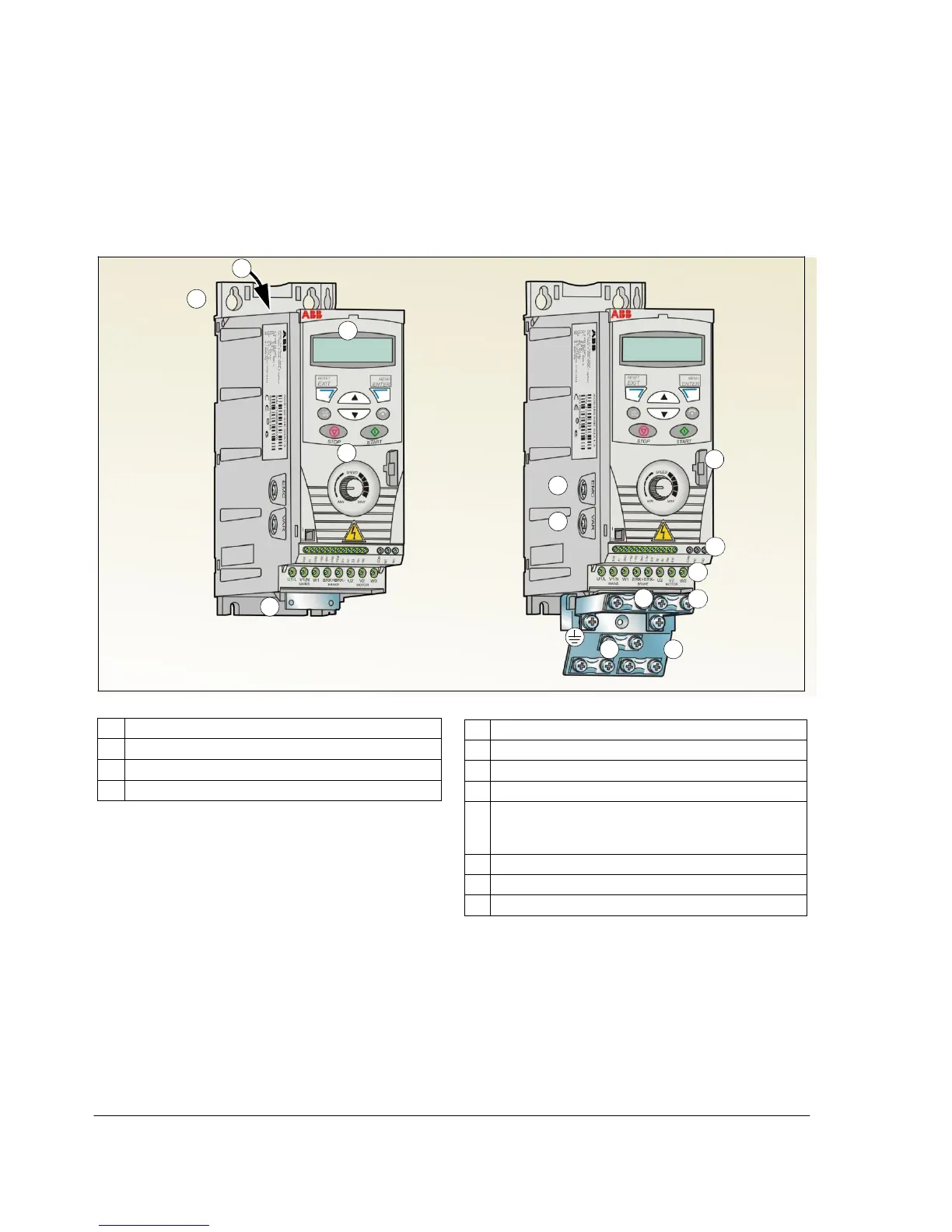

The layout of the drive is presented below. The construction of frame sizes R0…R2
varies to some extent.
1
2
3
4
5
6
7
8
9
2
12 10
12 11
Without plates (R0 and R1)
With plates (R0 and R1)
1
Cooling outlet through top cover
2
Mounting holes
3
Integrated control panel
4
Integrated potentiometer
