Control panel

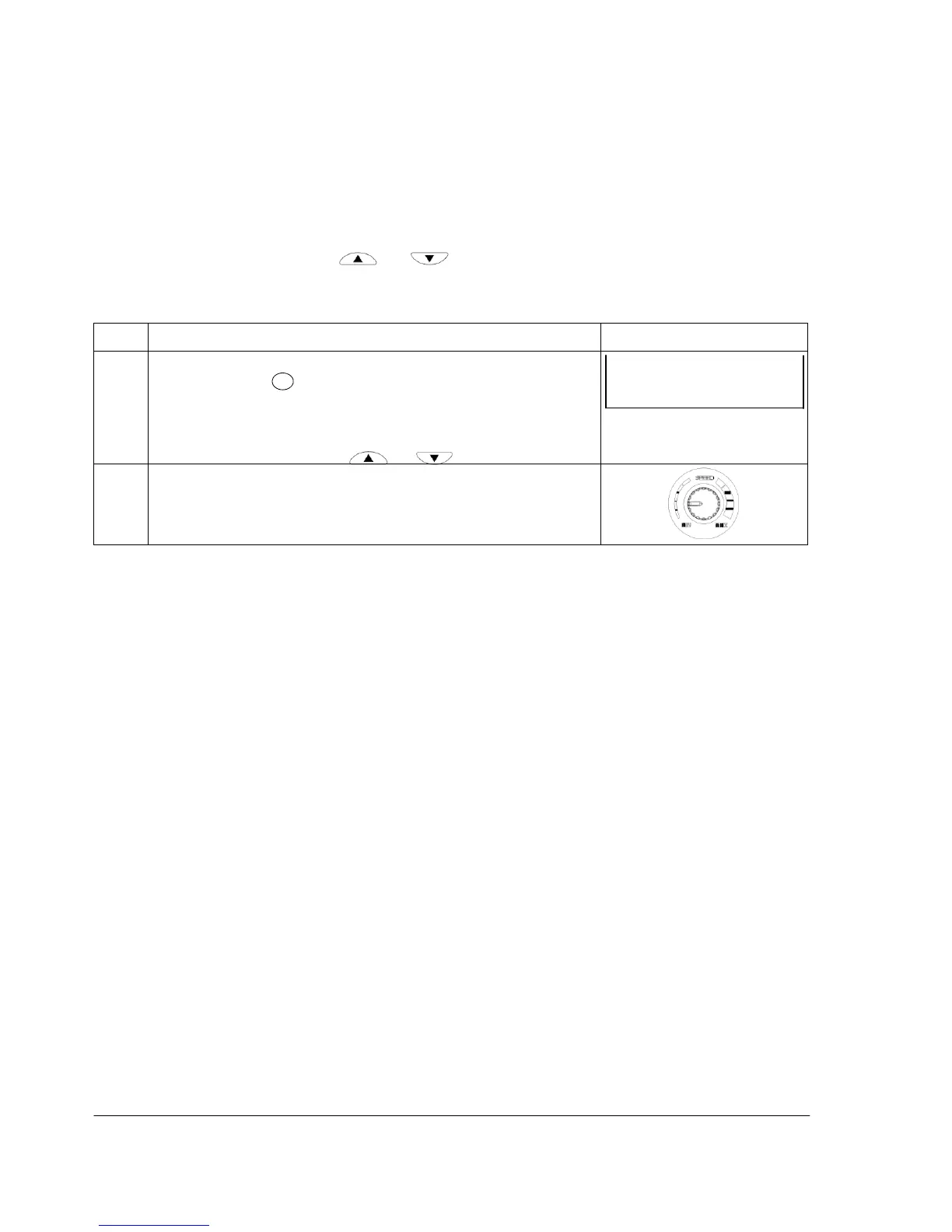

How to set the frequency reference
You can set the local frequency reference with the integrated potentiometer in any
mode when the drive is in local control if parameter 1109 LOC REF SOURCE has
the default value 0 (POT).
If parameter 1109 LOC REF SOURCE has been changed to 1 (KEYPAD), so that
you can use keys and for setting the local reference, you have to do it in
the Reference mode (see page 64).
To view the current local reference, you have to go to the Reference mode.
Step
Action
Display
1.
If the drive is in remote control (REM shown on the left), switch to local
control by pressing
LOC
. The display briefly shows “LoC” before switching
REM
to local control.
Note: With group 11 REFERENCE SELECT, you can allow changing of the
remote (external) reference in remote control (REM) for example, using the
integrated potentiometer or keys and .
LOC
PAr S
MENU FWD
2.
• To increase the reference value, rotate the integrated potentiometer
clockwise.
• To decrease the reference value, rotate the integrated potentiometer
counterclockwise.
