Motor potentiometer macro
This macro provides a cost-effective interface for PLCs that vary the speed of the
drive using only digital signals. To enable the macro, set the value of parameter 9902
APPLIC MACRO to 4 (MOTOR POT).
For the parameter default values, see section Default parameter values with different
macros on page 79. If you use other than the default connections presented below,
see section I/O terminals on page 44.

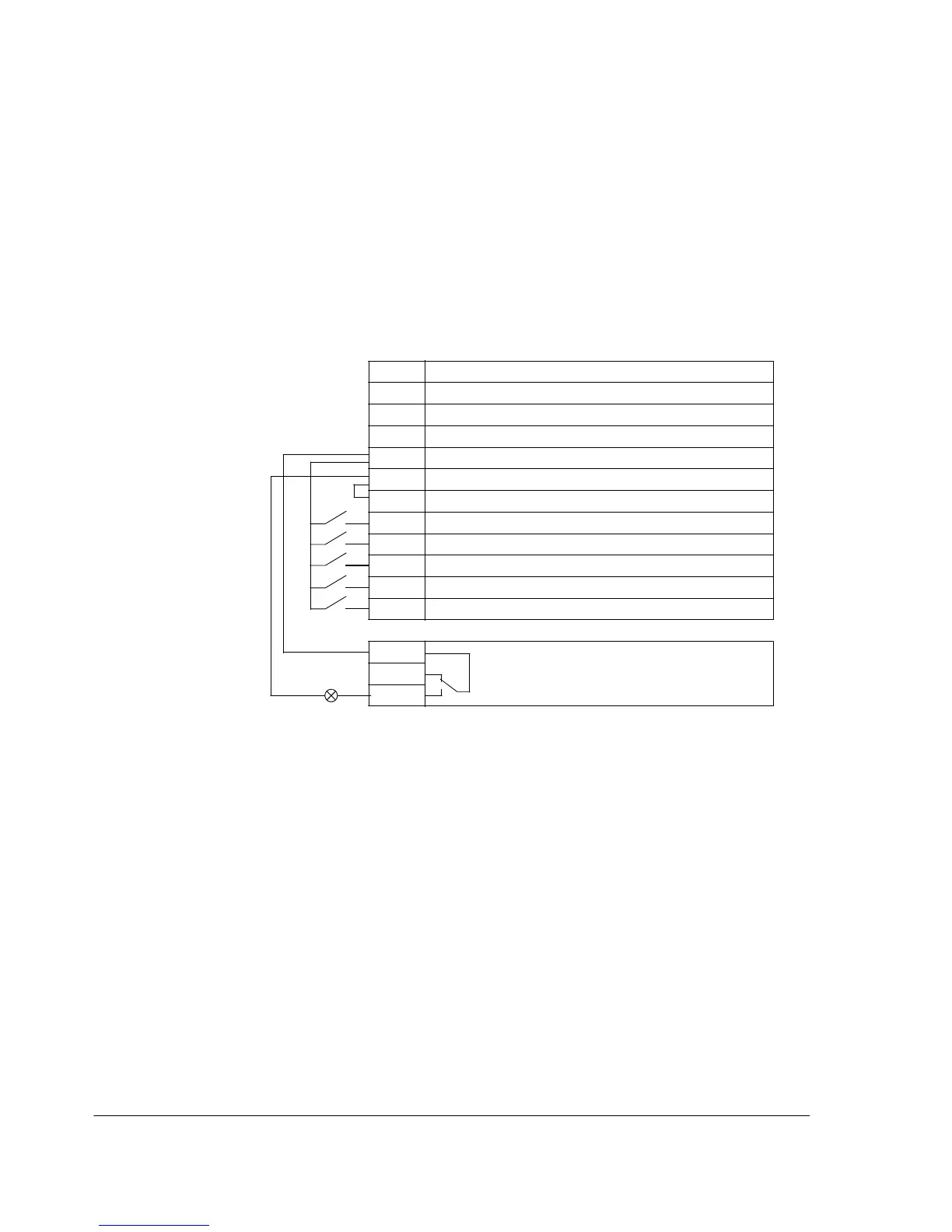

Default I/O connections
I/O connection
2)
SCR Signal cable shield (screen)
AI Not in use by default: 0…20 mA
GND Analog input circuit common
+10V Reference voltage: +10 V DC, max. 10 mA
+24V Auxiliary voltage output: +24 V DC, max. 200 mA
GND Auxiliary voltage output common
COM Digital input common
DI1 Stop (0) / Start (1)
DI2 Forward (0) / Reverse (1)
DI3 Frequency reference up
1)
DI4 Frequency reference down
1)
DI5 Constant speed 1: parameter 1202 CONST SPEED 1
Relay connection
3)
COM Relay output
NC
No fault [Fault (-1)]
NO
1)
If DI3 and DI4 are both active or inactive, the
frequency reference is unchanged.
The existing frequency reference is stored
during stop and power down.
2)
Tightening torque: 0.22 N·m / 2 lbf·in
3)
Tightening torque: 0.5 N·m / 4.4 lbf·in
