Checking the delivery
Check that there are no signs of damage. Notify the shipper immediately if damaged
components are found.
Before attempting installation and operation, check the information on the type
designation label of the drive to verify that the drive is of the correct type. See
section Type designation label on page 22.
Installing
The instructions in this manual cover drives with the IP20 degree of protection. To
comply with NEMA 1, use the MUL1-R1 option kit, which is delivered with
multilingual installation instructions (3AFE68642868).
Install the drive
Install the drive with screws or on a DIN rail as appropriate.
Note: Make sure that dust from drilling does not enter the drive during the
installation.
With screws
For installing the drive horizontally, see section Horizontally on page 27.

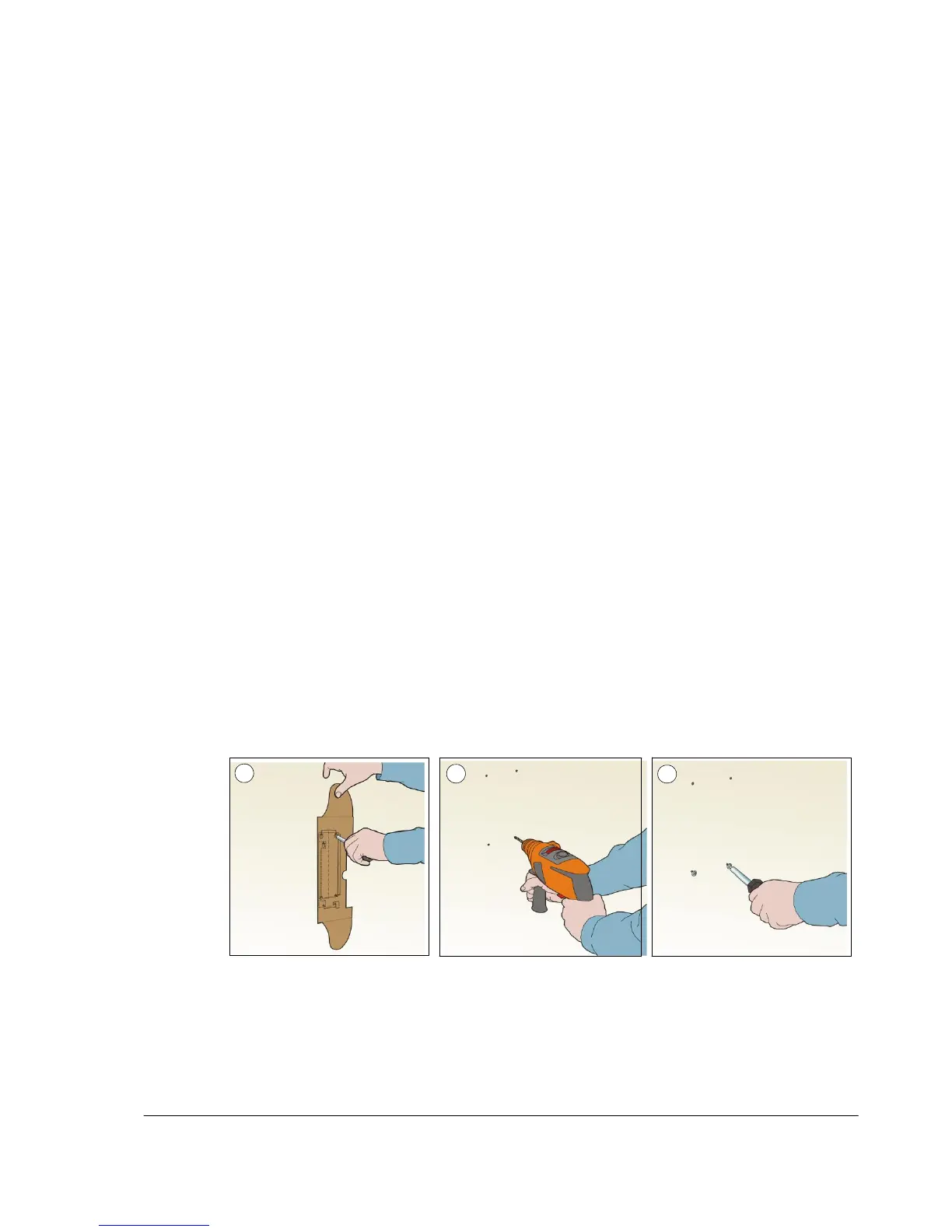

1. Mark the hole locations using for example, the mounting template cut out from the
package. The locations of the holes are also shown in the drawings in chapter
Dimension drawings on page 155. The number and location of the holes used
depend on how the drive is installed:
a) back mounting: four holes
b) side mounting: three holes; one of the bottom holes is located in the clamping
plate.
2. Fix the screws or bolts to the marked locations.
1
2
2
