Electrical installation

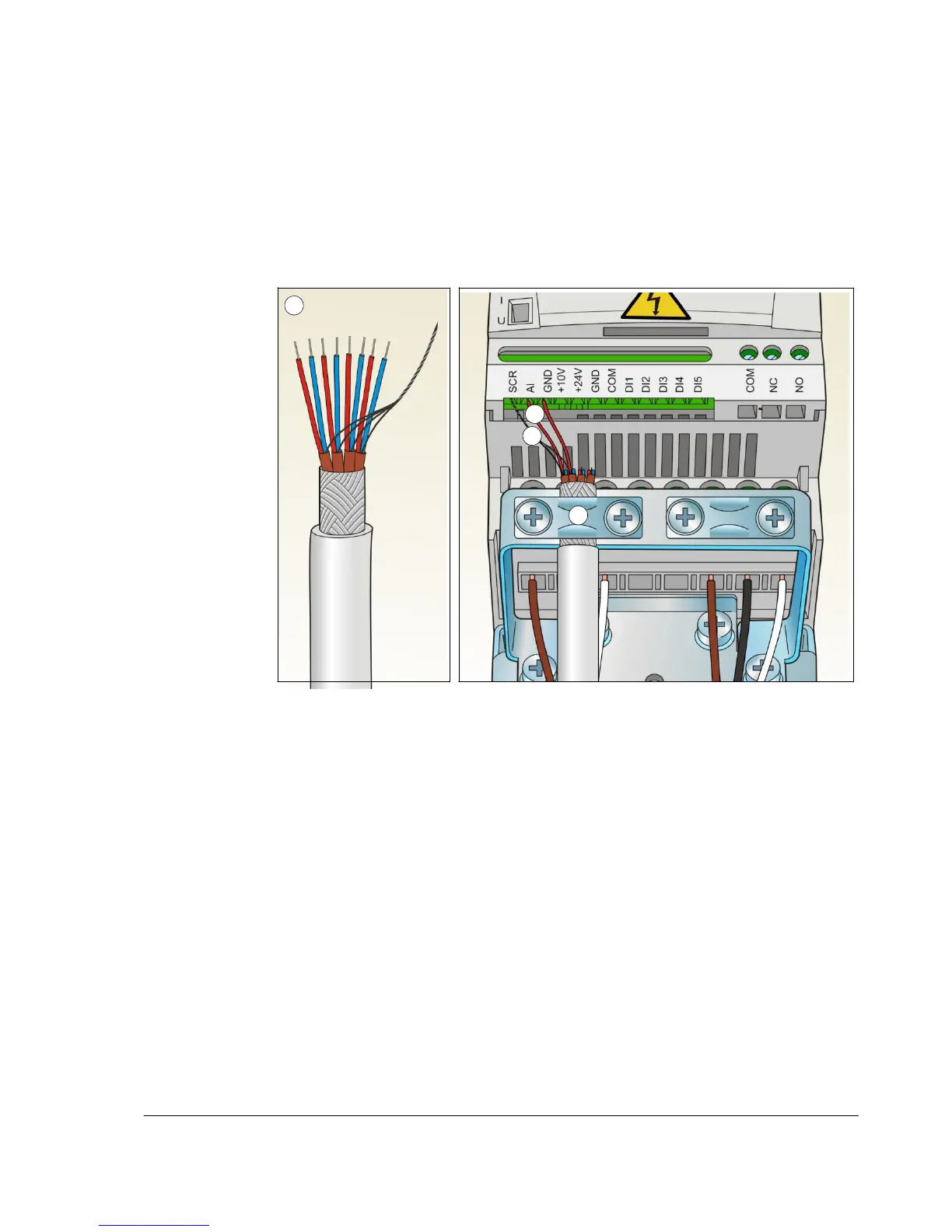

Connection procedure
1. Analog signal (if connected): Strip the outer insulation of the analog signal cable
360 degrees and ground the bare shield under the clamp.
2. Connect the conductors to the appropriate terminals.
3. Twist the grounding conductors of the used pairs in the analog signal cable
together and connect the bundle to the SCR terminal.
1
2
3
1
