Actual signals and parameters
Parameters in the Long parameter mode
Index
Name/Selection
Description
Def
7 = STARTED
The drive has received a start command. Relay is energized even if Run
enable signal is off. Relay is de-energized when drive receives a stop
command or a fault occurs.
8 = SUPRV 1 OVER
Status according to supervision parameters 3201 SUPERV 1 PARAM, 3202
SUPERV 1 LIM LO and 3203 SUPERV 1 LIM HI.
9 = SUPRV 1 UNDER
See selection SUPRV 1 OVER.
10 = SUPRV 2 OVER
Status according to supervision parameters 3204 SUPERV 2 PARAM, 3205
SUPERV 2 LIM LO and 3206 SUPERV 2 LIM HI.
11 = SUPRV 2 UNDER
See selection SUPRV 2 OVER.
12 = SUPRV 3 OVER
Status according to supervision parameters 3207 SUPERV 3 PARAM, 3208
SUPERV 3 LIM LO and 3209 SUPERV 3 LIM HI.
13 = SUPRV 3
UNDER
See selection SUPRV 3 OVER.
14 = AT SET POINT
Output frequency is equal to the reference frequency.
15 = FAULT(RST)
Fault. Automatic reset after the autoreset delay. See parameter group
31 AUTOMATIC RESET.
16 = FLT/ALARM
Fault or alarm
17 = EXT CTRL
Drive is under external control.
18 = REF 2 SEL
External reference REF2 is in use.
19 = CONST FREQ
A constant speed is in use. See parameter group 12 CONSTANT SPEEDS.
20 = REF LOSS
Reference or active control location is lost.
21 = OVERCURRENT
Alarm/Fault by overcurrent protection function
22 = OVERVOLTAGE
Alarm/Fault by overvoltage protection function
23 = DRIVE TEMP
Alarm/Fault by drive overtemperature protection function
24 =UNDERVOLTAGE
Alarm/Fault by undervoltage protection function
25 = AI1 LOSS
Analog input AI1 signal is lost.
27 = MOTOR TEMP
Alarm/Fault by motor overtemperature protection function. See parameter
3005 MOT THERM PROT.
28 = STALL
Alarm/Fault by stall protection function. See parameter 3010 STALL
FUNCTION.
29 = UNDERLOAD
Alarm/Fault by underload protection function. See parameter 3013
UNDERLOAD FUNC.
30 = PID SLEEP
PID sleep function. See parameter group 40 PROCESS PID SET 1.
33 = FLUX READY
Motor is magnetized and able to supply nominal torque.
1404 RO 1 ON DELAY
Defines the operation delay for relay output RO.
0.0 s
0.0…3600.0 s

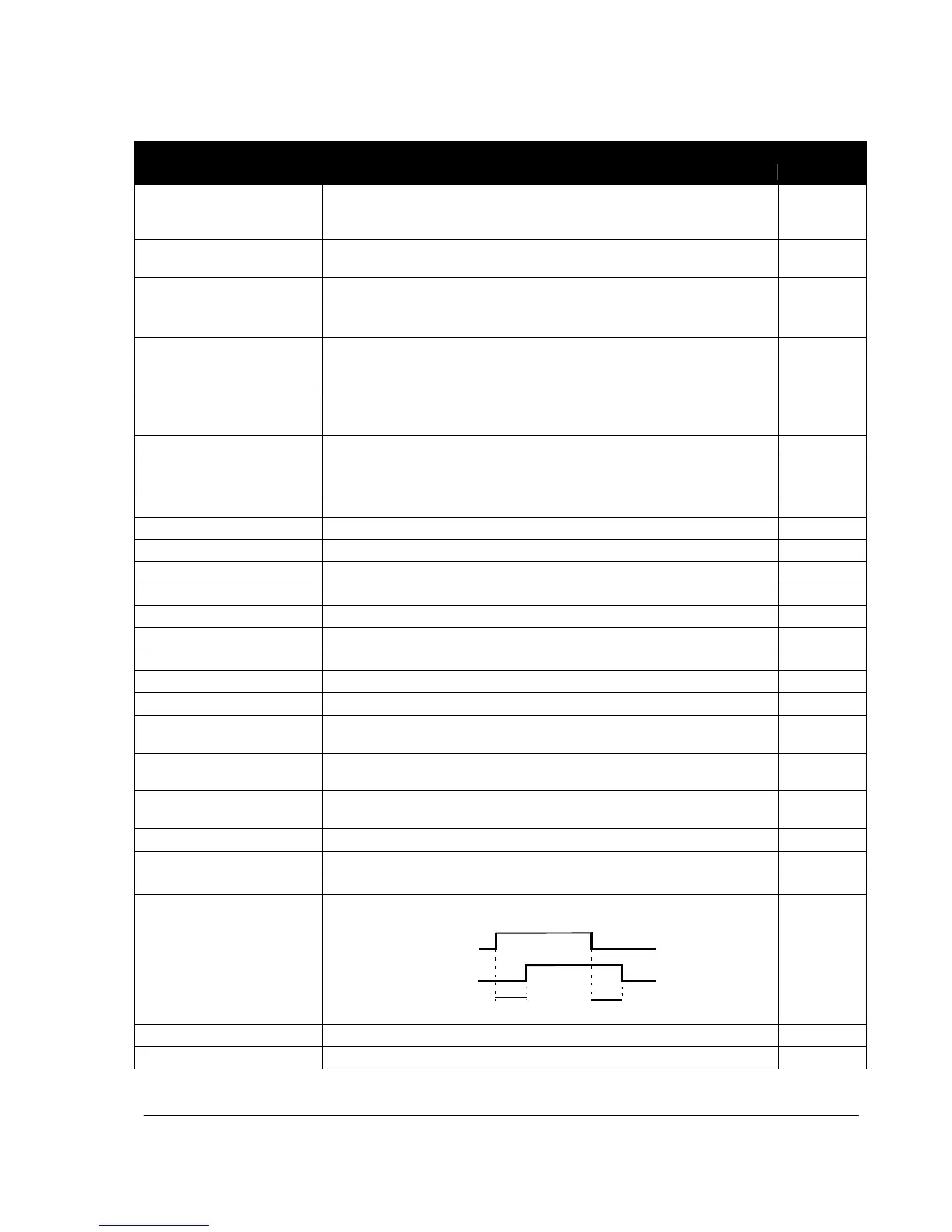

Delay time. The figure below illustrates the operation (on) and release (off)
delays for relay output RO.
Control event
Relay status
1404 On delay
1405 Off delay
1405 RO 1 OFF DELAY
Defines the release delay for relay output RO.
0.0 s
0.0…3600.0 s
Delay time. See the figure for parameter 1404 RO 1 ON DELAY.
