Positive Read response to DP-V1 Read request:
The values 190h (400), 1F4h (500) and 1Eh (30) are returned.
DP
header

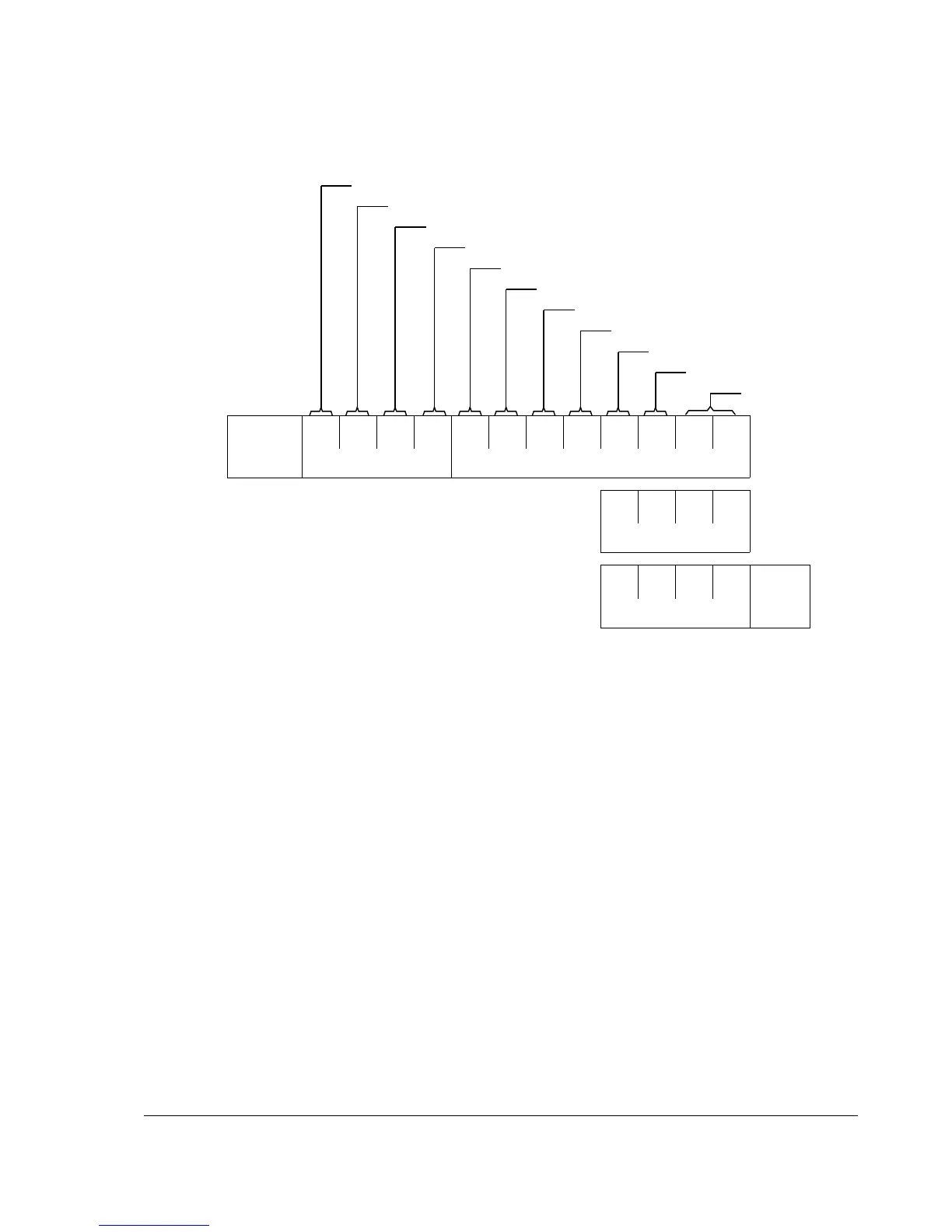

5F 01 2F 10 06 01 01 03 42 01 01 90
•••
DP-V1 Response PROFIdrive V3 Parameter Channel
•••
42 01 01 F4
•••
(Par. Channel cont’d)
•••
42 01 00 30
DP
trailer
(Par. Channel cont’d)
Parameter value
Number of values
Format (42h = Word)
Number of parameters
Drive object ID
Response ID
Response reference (mirrored)
Data length
Index
Slot number
Function number
