Communication profiles
54
The following sections describe the Control word, the Status word,
references and actual values for the PROFIdrive and ABB Drives
communication profiles. Refer to the drive manuals for details on
the DCU communication profile.

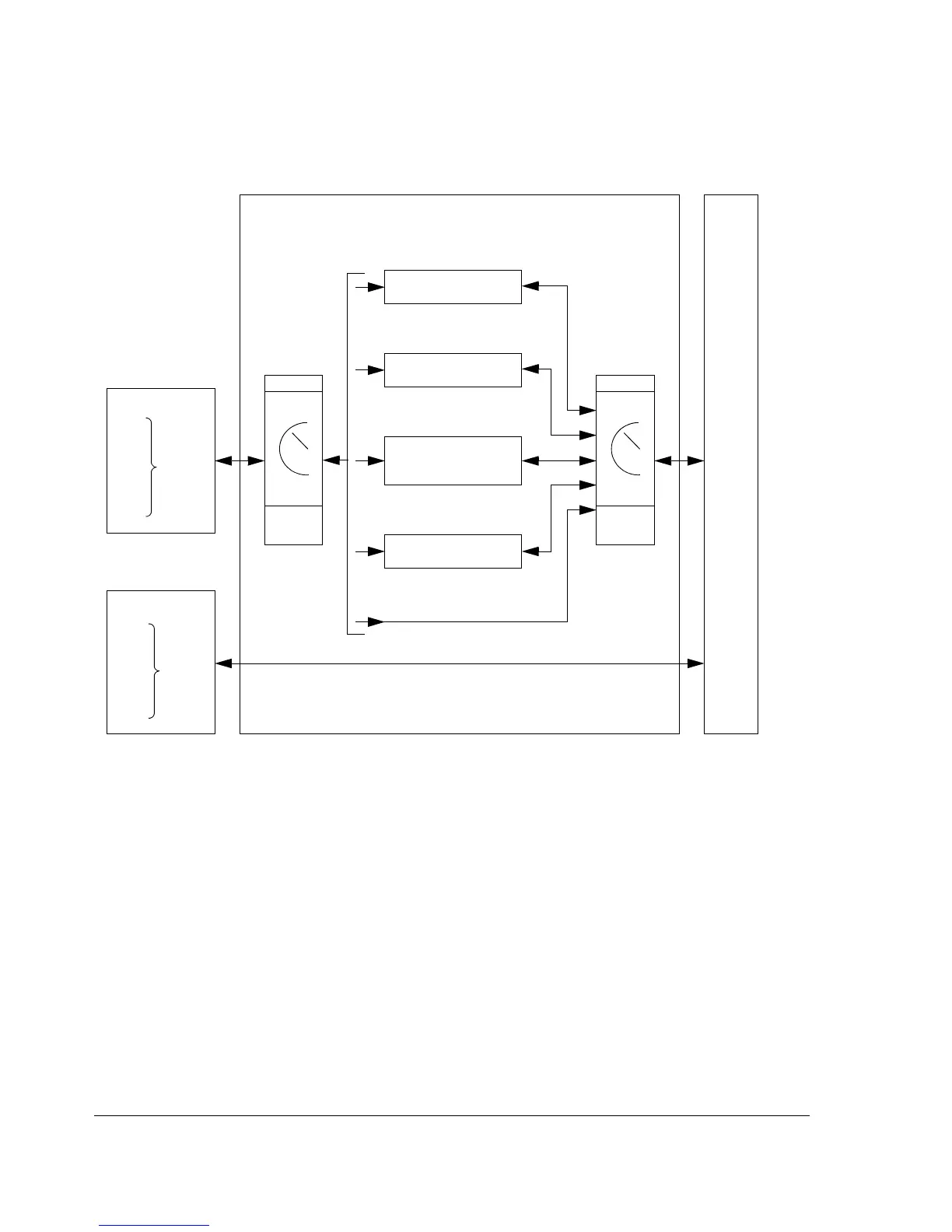

FPBA-01 Drive
FPBA-01 profile selection:
Data conversion
Data conversion
PROFIdrive
ABB Drives
Transparent32
*DCU or FBA profile
Optional reference/
actual value scaling
Transparent16
Select
Group
A, Par. 5
Data conversion
PROFIdrive positioning
PROFIBUS
CW
REF1
REF2
SW
ACT1
ACT2
16/32-
bit
Select
Group
A, Par. 5
PROFIBUS
PZDx
PZD10
*
*
*
Note: The diagram is applicable only when PPO messaging is
used. If Standard Telegrams (ST) are used, the communication
profile is selected automatically.
16/32-
bit
