122 Safety functions

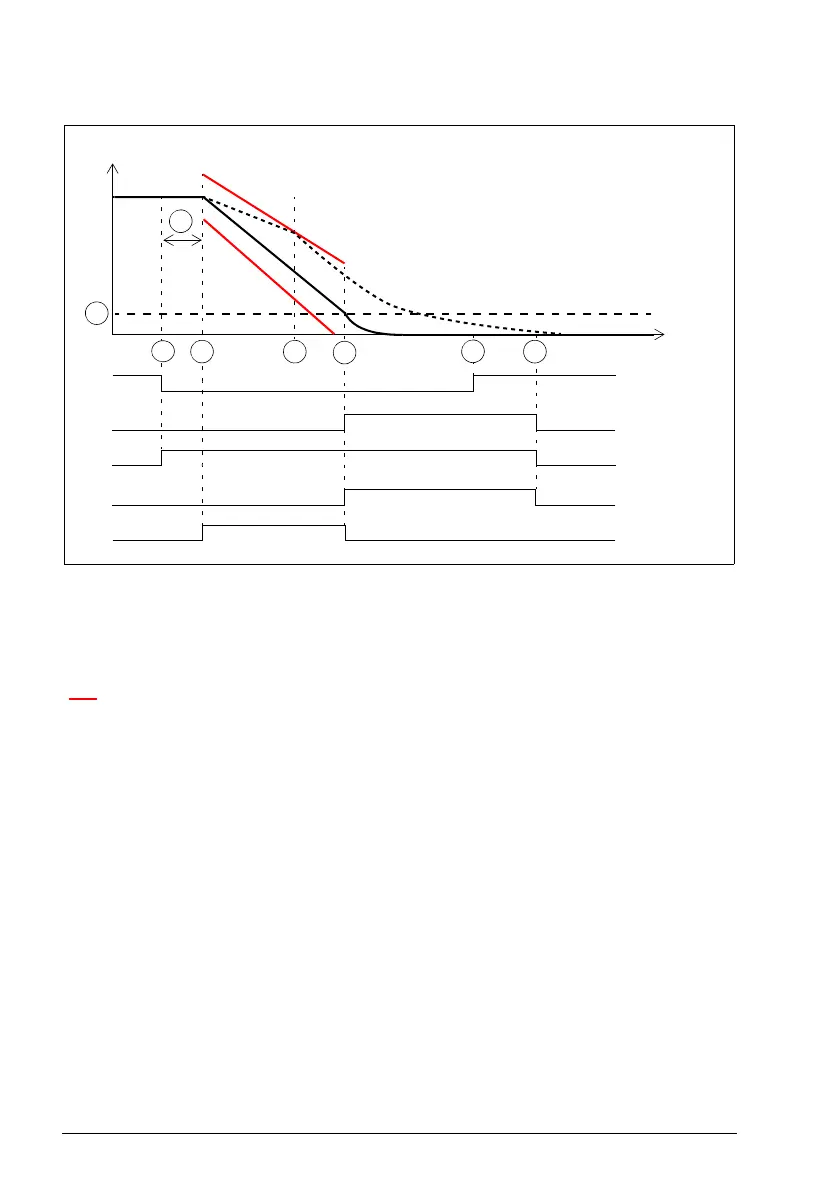

With an encoder
A Zero speed with encoder (parameter FSOGEN.52): Speed limit for activating the drive
STO function. The safety function is completed, ramp monitoring is stopped and the SSE
completed indication (parameter SSE.22) goes on. The acknowledgment becomes
allowed.
B Response time (depends on system configuration, see page 532)
Ramp monitoring limits
& indication
SSE request
Motor speed
Time
SSE state &
indication
1
2 5
A
B
SSE completed
indication
3
2b
SAR0
monitoring
4
- -> Safe torque off (STO)
