18. Set F-Parameters of the FENA module:

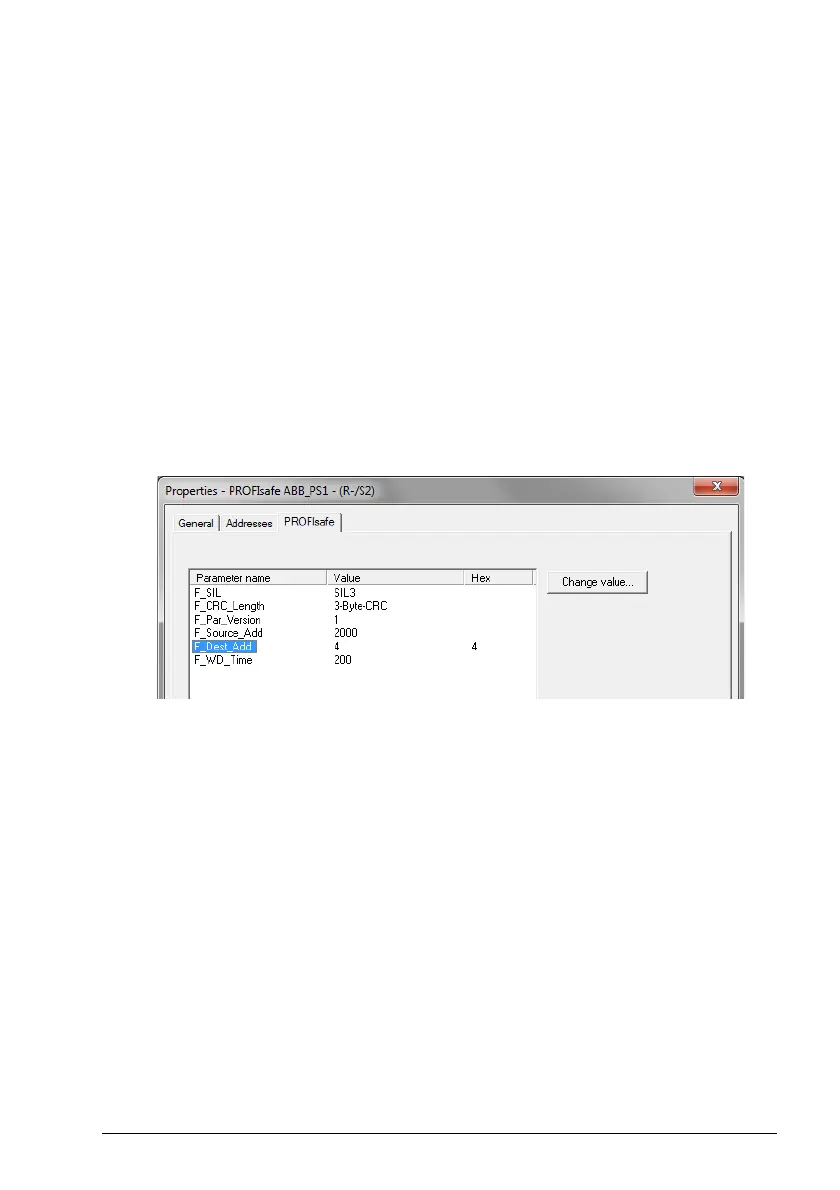

• In the hardware configuration, double-click PROFIsafe ABB_PS1 to open the
Properties window.
• On the PROFIsafe tab, modify the F_Dest_Add and F_WD_Time values as
needed.
• F_Source_Add is the address of the safety controller station. You can
modify this in the host F Parameters tab.
• F_Dest_Add is the address of the FENA module. This is defined by FSO
parameter PROFIsafe.11, see section Configuring the safety fieldbus
communication on page 318.
These two define the codename for the PROFIsafe relationship of this
particular FENA module and the safety controller station.
• F_WD_Time is the PROFIsafe watchdog time. See section Calculating the
watchdog time on page 227 for instructions on how to calculate the correct
watchdog time.
