ABB i-bus
®
KNX
Commissioning
28 2CDC509086D0201 | ABA/S 1.2.1
6.3.1 Network settings
DHCP ("Obtain an IP address automatically") is enabled on the device as standard. So the device obtains
its IP address from a DHCP server which is often integrated into a network switch or router. If there is no
DHCP server, the device is assigned an automatic IP address, usually 169.254.xxx.yyy.
Settings for the IP address are made directly in ETS, where you can also give the device a fixed address.
If you do, please ensure that the IP is suitable for the network topology, otherwise the device cannot
subsequently be accessed.

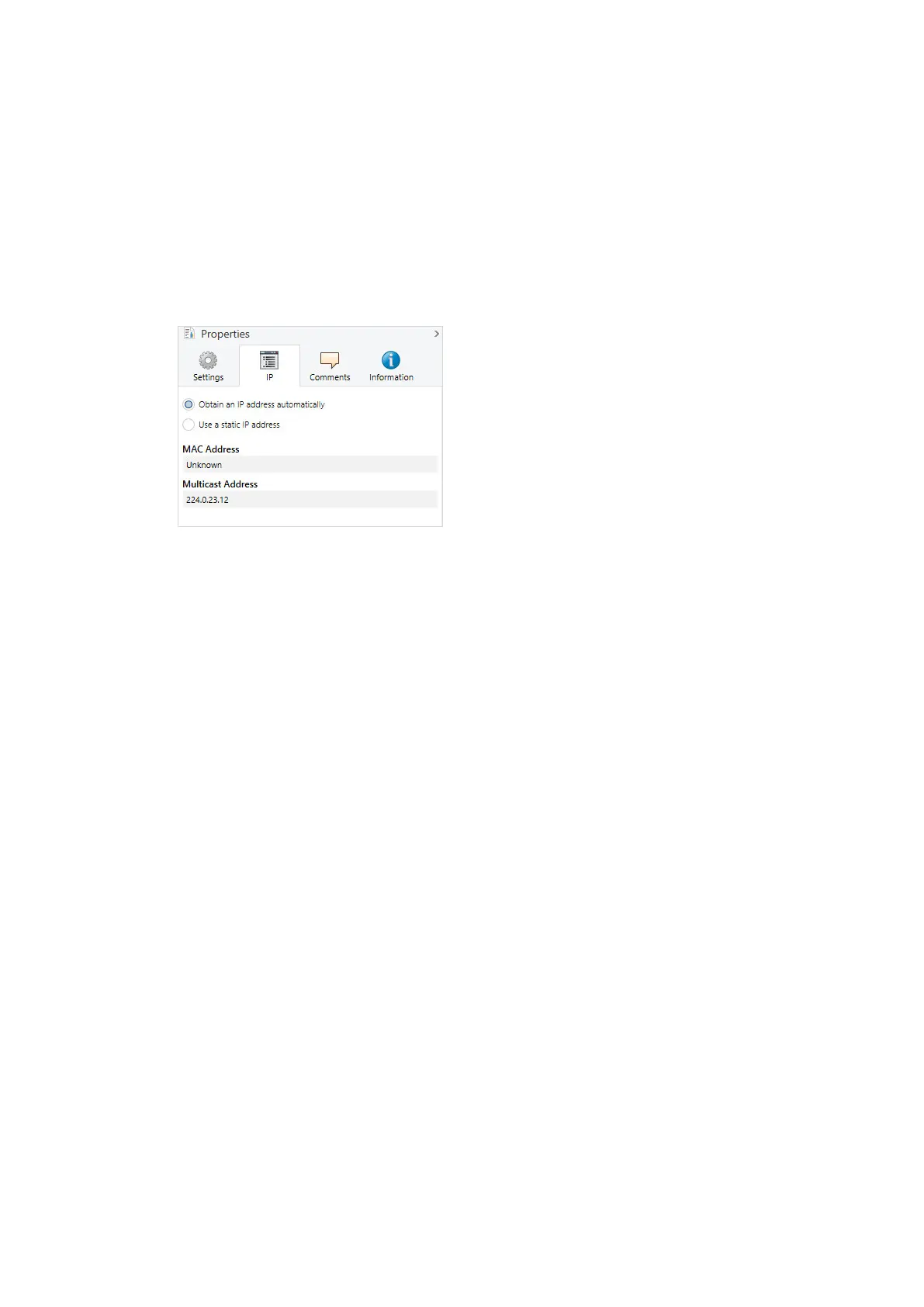

Fig. 5: Network settings
If you have set a fixed IP address, it will be loaded onto the device when you program the physical
address. The logic controller is now accessible via the LAN.
If you wish to program the device directly via LAN without a connection to the KNX bus line, select "Use
direct IP connection if available" in Bus/Connection Options.
6.4 Software/application
6.4.1 Download response
Due to the complexity of the device, the progress bar for the download may take up to one and a half
minutes before it appears depending on the PC used.
