ABB i-bus
®
KNX
Parameters
74 2CDC509086D0201 | ABA/S 1.2.1

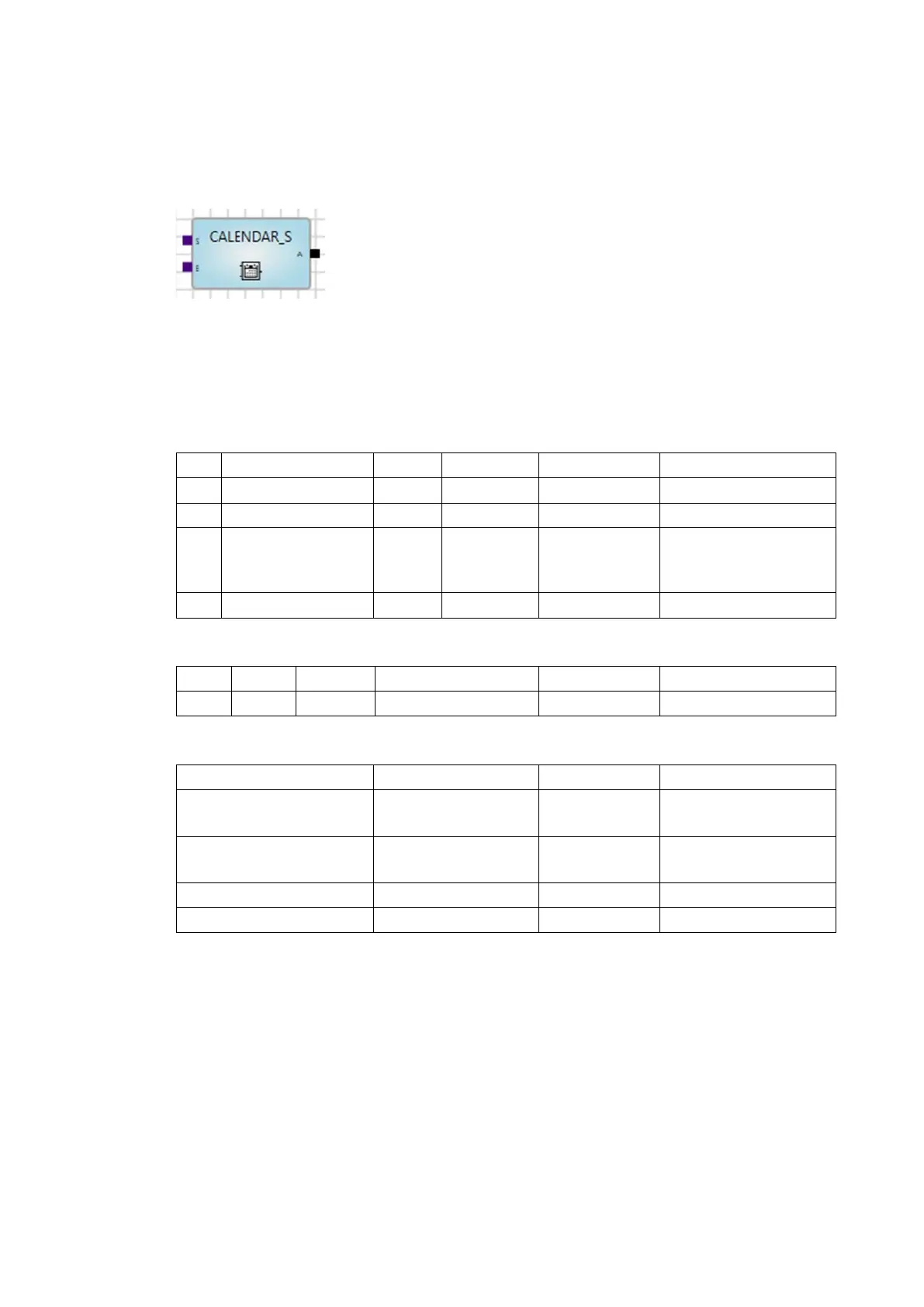

7.10.28 Calendar, simple (CALENDAR_S)
Description
Simple comparison of a start time and an end time.
Triggers daily events (for the whole day or at specific times).
The output value is 1 if the device time is between Start and End and the other conditions are met.
Inputs
No. DPT Abbr. Name Visible Description
1 Time S
Start Parametrizable
2 Time E End Parametrizable
3 1 bit A Active Parametrizable
A 0 disables the element;
the output remains
unchanged.
4 1 bit WT Whole time Parametrizable Output is always 1
Outputs
No. DPT Abbr. Name Visible Description
1 1 bit O Output Always
Parameters
Name Value Visible As input*
Start
Time (hh:mm:ss)
Default = 00:00:00
Always Yes
End
Time (hh:mm:ss)
Default = 00:00:00
Always Yes
Active Checkbox Always Yes
Whole time Checkbox Always Yes
* As input = If yes: the parameter is an input.
