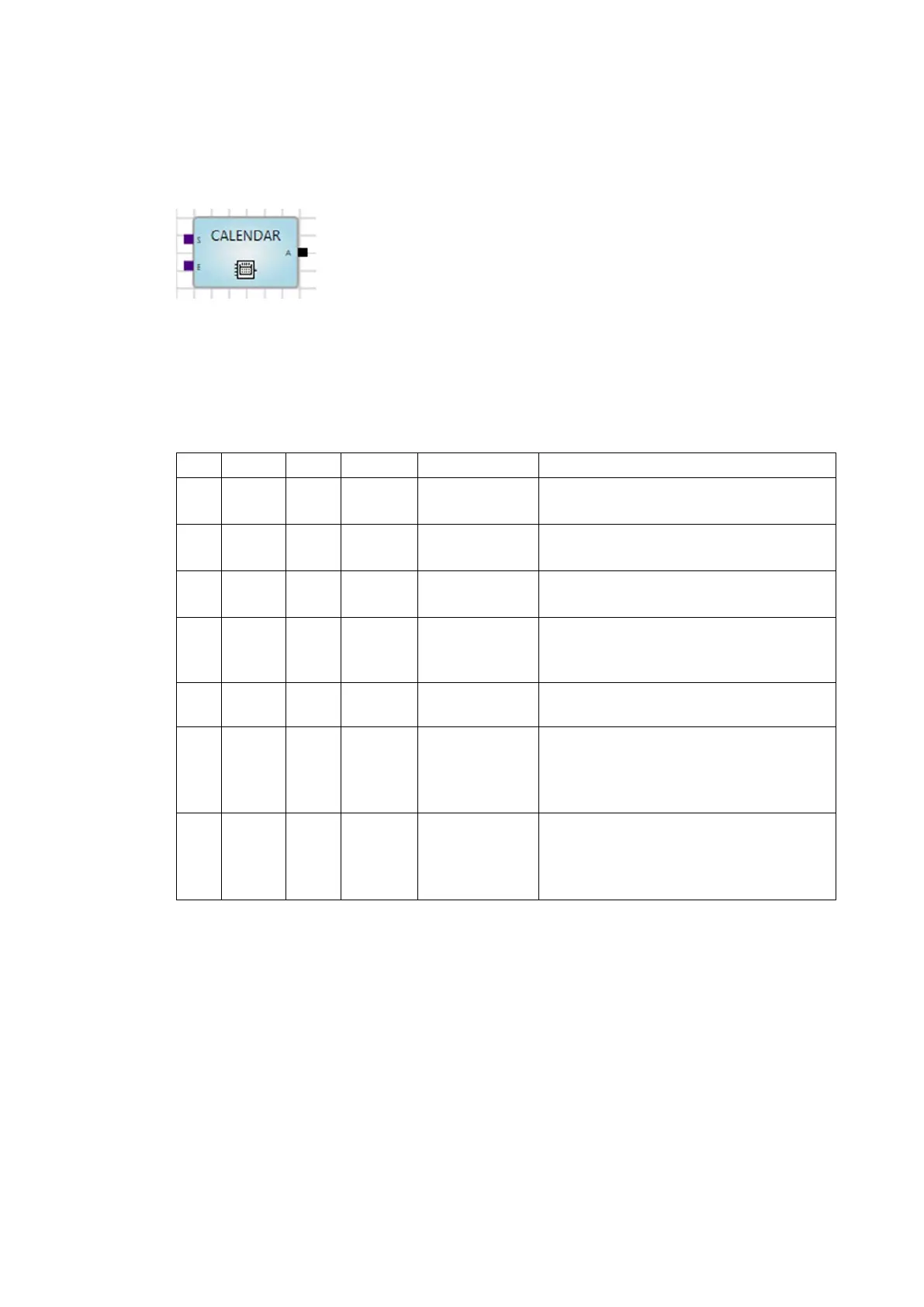

7.10.29 Calendar (CALENDAR)
Description
Used for events that occur periodically or on specific dates. A wide variety of settings is possible.
The calendar uses the logic controller's internal clock. It can be changed via the bus (group objects).
The output value is 1 if the device time is between Start and End and the other conditions are met.
Inputs
No. DPT Abbr. Name Visible Description
1 Time S Start Parametrizable
Defines the start time;
refers to corresponding parameters
2 Time E End Parametrizable
Defines the end time;
refers to corresponding parameters
3 1 bit A Active Parametrizable
If Active = 0 the output is always 0;
refers to corresponding parameters
4 1 bit WT
Whole
time
Parametrizable
If Whole time = 1, Start = 00:00:00 and
End = 24:00:00;
refers to corresponding parameters
5-7
Recurrence (Daily, Weekly, Monthly, Yearly);
see below
8 Date B Begin Parametrizable
Defines the date for activation of the Calendar
element (sets a duration);
before this date, the output value is 0;
refers to corresponding parameters
9 Date U Until Parametrizable
Defines the date for deactivation of the
Calendar element (sets a duration);
before this date, the output value is 0;
refers to corresponding parameters
