ABB i-bus KNX ABA/S 1.2.1 User Manual

ABB i-bus
®
KNX
Parameters
ABA/S 1.2.1 | 2CDC509086D0201 41

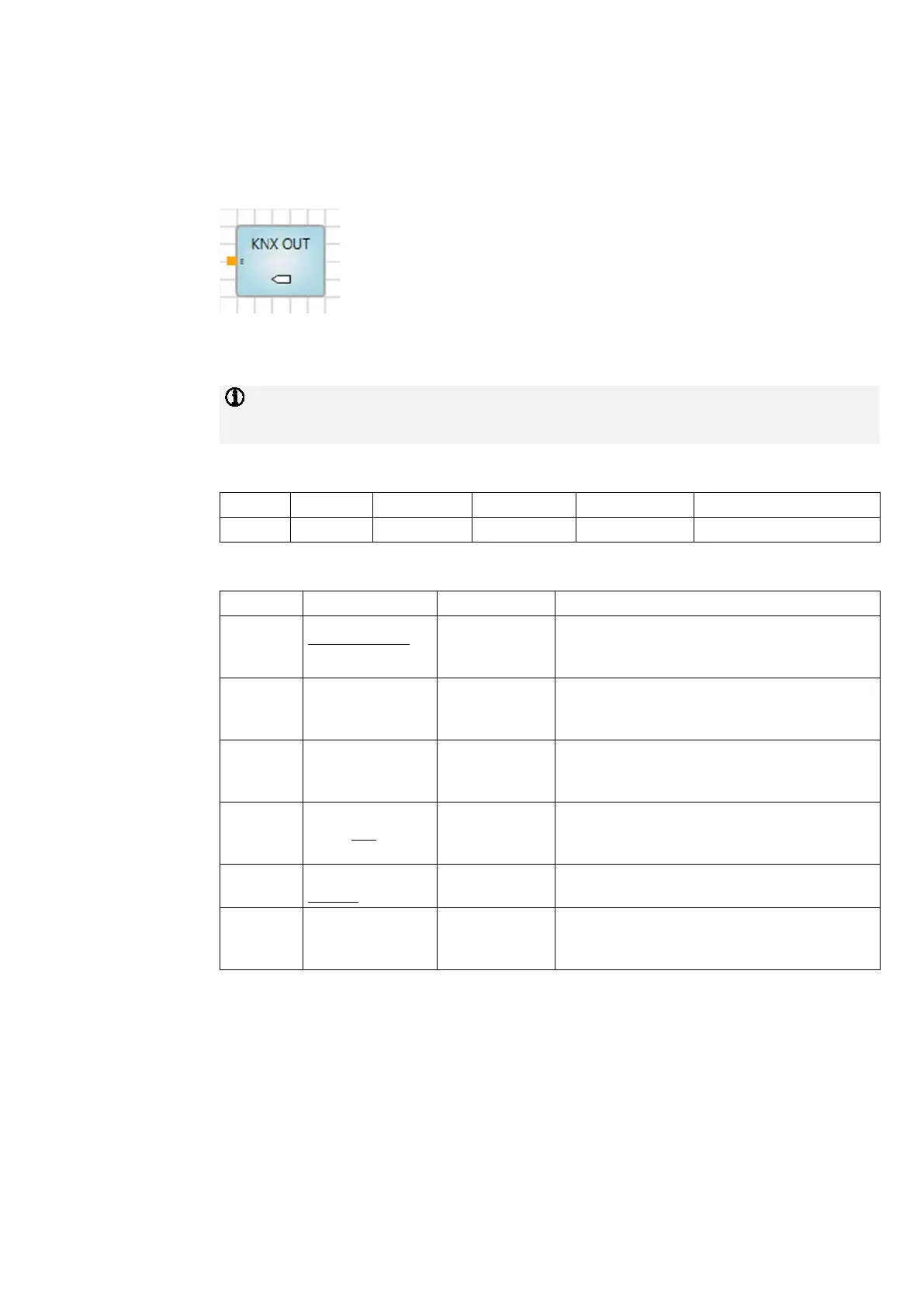

7.10.2 KNX output (KNX OUT)
Description
Selects the KNX output element based on the required datapoint type. Received values from the logic
engine are forwarded. Enables a corresponding group object in ETS.
Note
You can enter a unique name for the element in the Name field in the properties. The name will also be
written into the Group Object Description in ETS.
Inputs
No. DPT Abbr. Name Visible Description
1 Any I Input Always
Parameters
Name Value Visible Description
Send
behavior
Send on change
Always
Always
Values can always be sent, i.e. after every
recalculation of the link results, or only when a
value in the results changes.
Change
defined in
Absolute
Relative (%)
If Send behavior
= Send on
change*
If Send on change is selected for Send behavior,
an absolute or relative value can be output after a
value change.
Change
absolute
Value dependent
on DPT, default = 1
If Change
defined in
= Absolute
A value is sent if Change defined in is greater or
less than the number entered in Change absolute.
Change in
%
[0.1 %, 0.2 %,
0.5 %, 1 %, 2 %, ...,
20 %]
If Change
defined in =
Relative (%)
A value is sent if the Change defined in
percentage of the last value sent is greater or less
than the percentage selected in Change in %.
Cyclic
sending
1 (true)
0 (false)
Always
Cyclic sending can be enabled by selecting the
checkbox.
Cycle time
min:sec, minimum
value = 00:09
If Cyclic sending
= true (1)
If the Cyclic sending checkbox is selected, the
cycle time can be set from a minimum value of
00:09 (in min:sec).
*AND the datapoints are integers or float values (1 to 4 bytes).
