Parameters
ABA/S 1.2.1 | 2CDC509086D0201 89

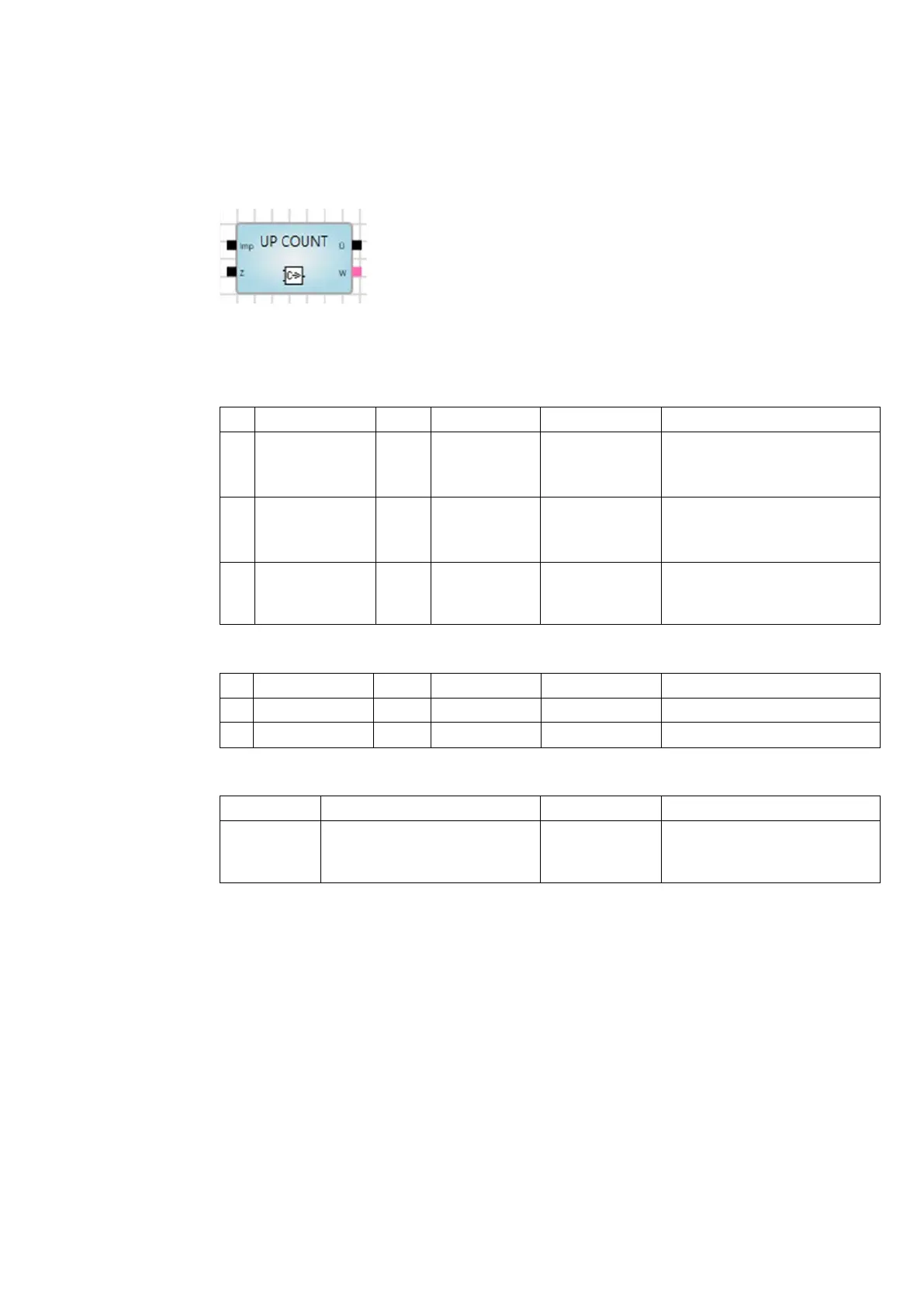

7.10.32 Up Counter (UP COUNT)
Description
Counts upward from 0 to an adjustable threshold. Only counts value changes from 0 to 1.
Inputs
No. DPT Abbr. Name Visible Description
1 1 bit Tr Trigger Always
Trigger input.
Value change from 0 to 1
increments the counter by 1.
2 1 bit R Retrigger Always
0 = counter counts
1 = resets the counter to 0 and
disables it
3 8 bit or higher Th Threshold Parametrizable
Counter threshold. Reaching this
threshold triggers an overflow at
the output.
Outputs
No. DPT Abbr. Name Visible Description
1 8 bit or higher V Output value Always Counter value, integer
2 1 bit Ov Overflow Always Counter threshold reached
Parameters
Name Value Visible Description
Threshold
Integer value. Same data type as
the counter value.
Always
Selecting the corresponding
checkbox activates the Threshold
input.
