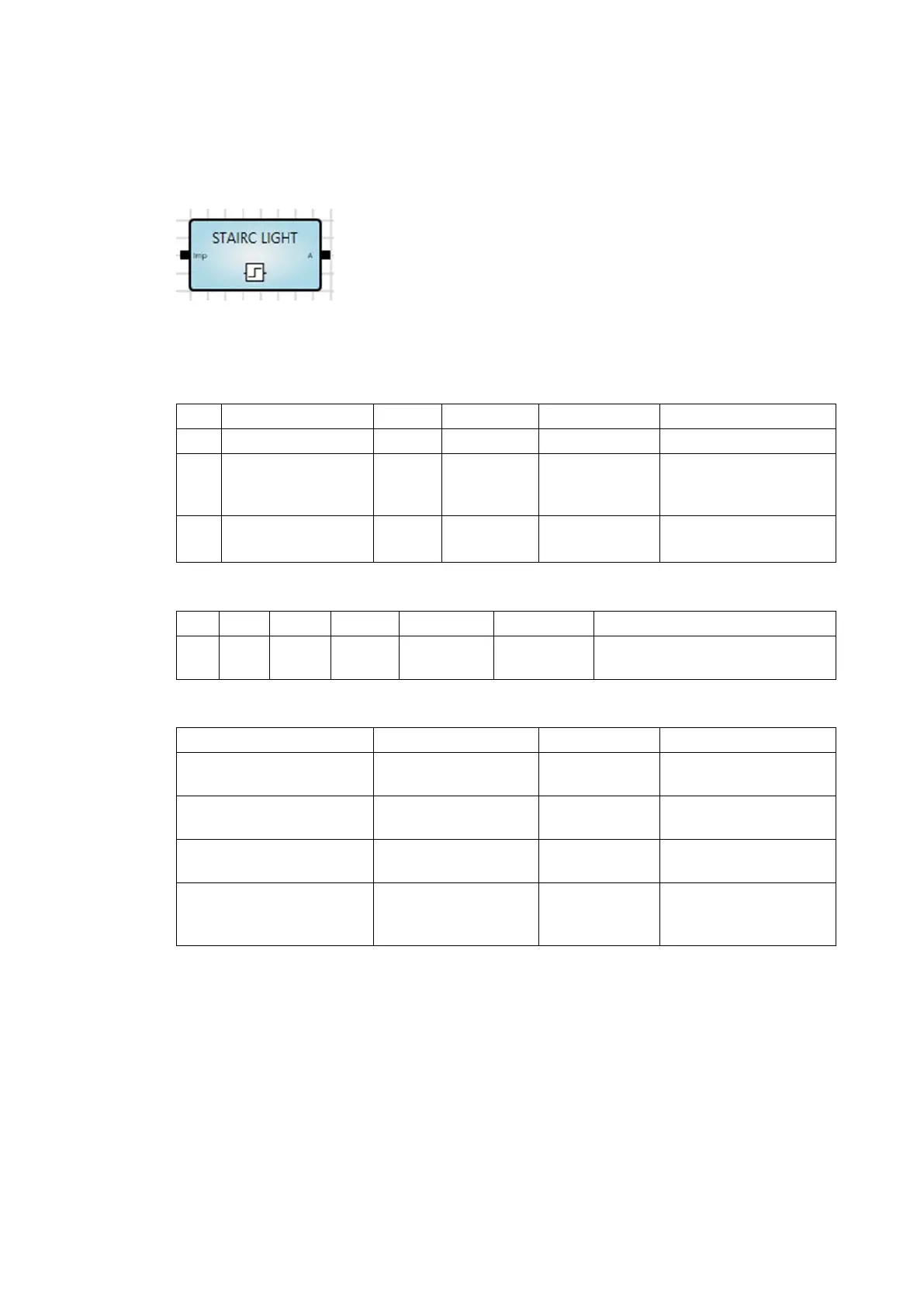

7.10.27 Staircase Light (STAIRC LIGHT)
Description
A timer which automatically resets the output to 0 (false) after a specified time has elapsed.
Inputs
No. DPT Abbr. Name Visible Description
1 1 bit Tr Trigger Always
2 4 byte unsigned T On-time Parametrizable
Value in seconds;
according to KNX DPT
13.100
3 1 bit R Retrigger Parametrizable
1 = yes
0 = no
Outputs
No. DPT Abbr. Name Invertible Visible Description
1 1 bit O Output
Yes
Always
1 (true), as long as the timer is
running
Input parameters
Name Value Visible Description
On-time Checkbox Always
Activates input T
(On-time)
Unsigned integer in [s]
If the checkbox is
deselected
Retrigger Checkbox Always
Activates input R
(Retrigger)
Checkbox 2
If checkbox 1 is
deselected
When the Retrigger input
receives a value, the timer
resets to 0.
If the On-time checkbox is selected, the time value fields are not visible. The same applies to the Retrigger
checkbox.
