ABB i-bus KNX ABA/S 1.2.1 - Multiplexer, N-Fold (N-MUX)

ABB i-bus
®
KNX
Parameters
ABA/S 1.2.1 | 2CDC509086D0201 61

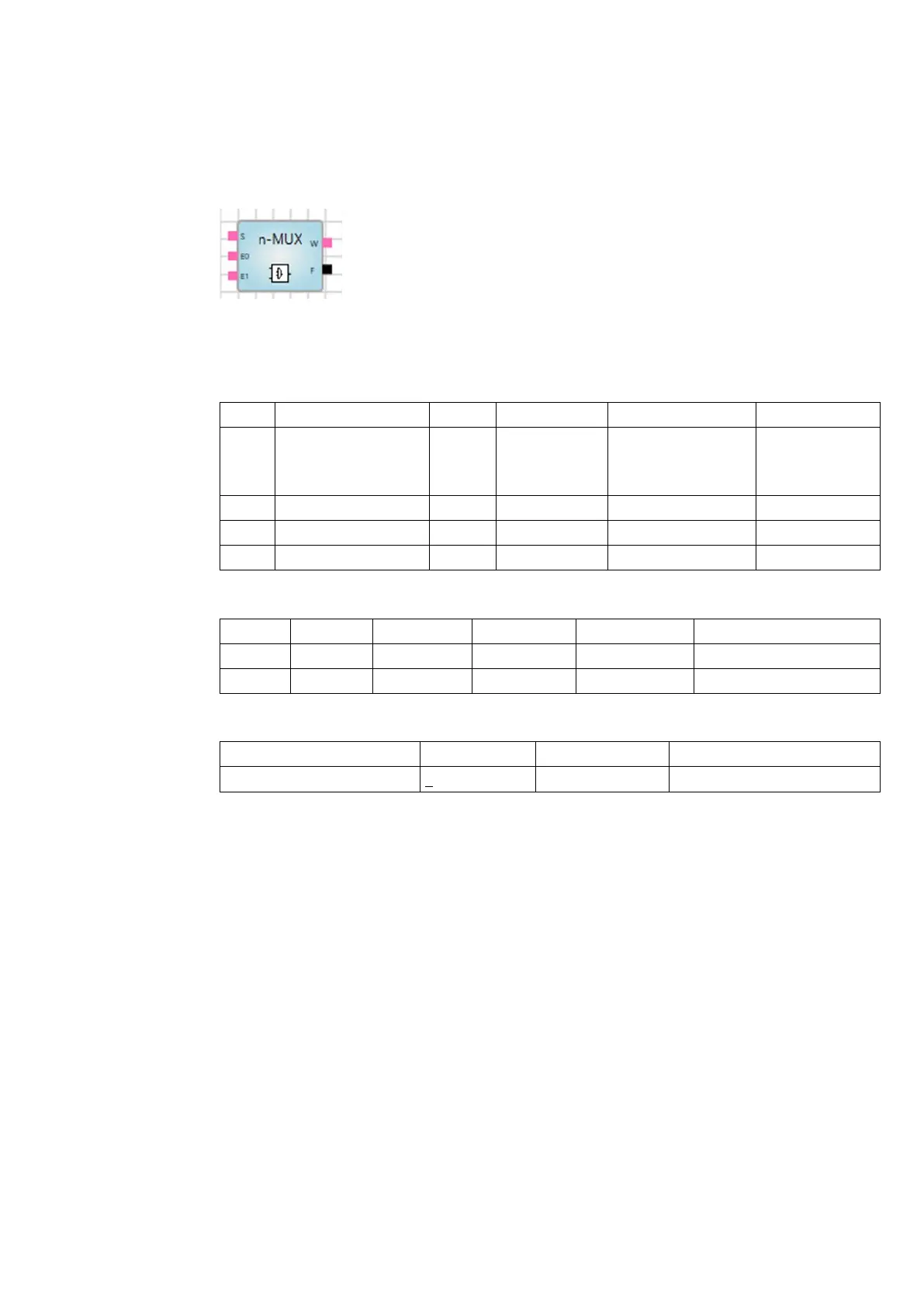

7.10.18 Multiplexer, n-fold (n-MUX)
Description
Selects a value from up to 16 input values.
Inputs
No. DPT Abbr. Name Visible Description
1
1 byte unsigned
2 byte unsigned
4 byte unsigned
S Select Always
2 Any I
0
Input value Always
3 Any I
1
Input value Always
4-17 Any I
n
Input value Parametrizable n = 2...15
Outputs
No. DPT Abbr. Name Visible Description
1 Any V Value Always
2 1 bit E Error Always
Parameters
Name Value Visible Description
Input Count 2…16 Always
