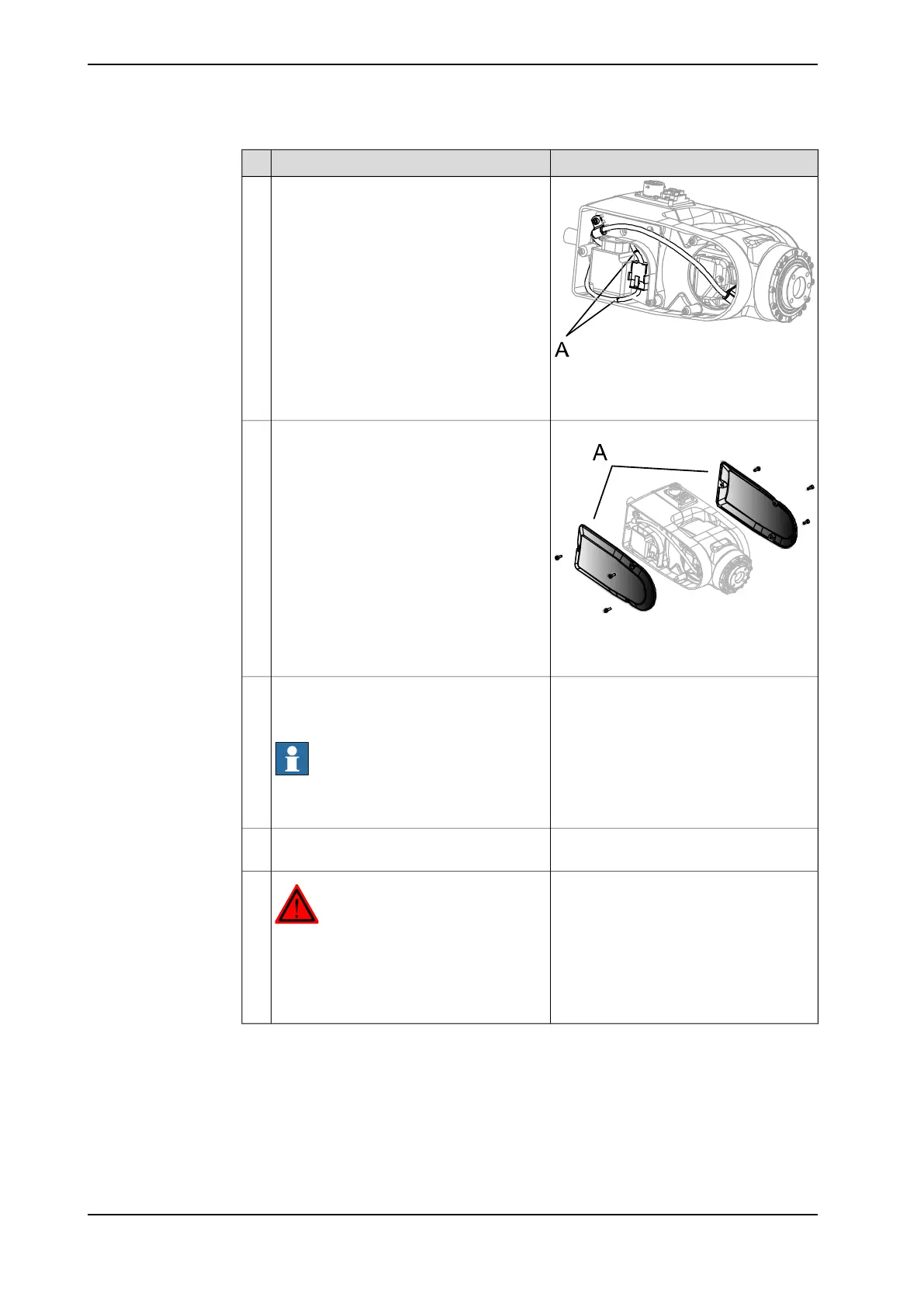

Secure the cables with cable straps.11
Parts:
• A: Cable straps (2 pcs)
Tightening torque: 1 Nm.
xx0900000886
Refit the wrist side covers.12
Parts:
• A: Wrist side covers (2 pcs)
Clean Room robots: seal and paint the joints
that have been opened. See Replacing parts
on the robot on page 118
Note
After all repair work, wipe the robot free
from particles with spirit on a lint free cloth.
13
See chapter:
• Calibration on page 225.
Recalibrate the robot.14
DANGER
Make sure all safety requirements are met
when performing the first test run. These
are further detailed in the section DANGER
- First test run may cause injury or damage!
on page 47.
15
