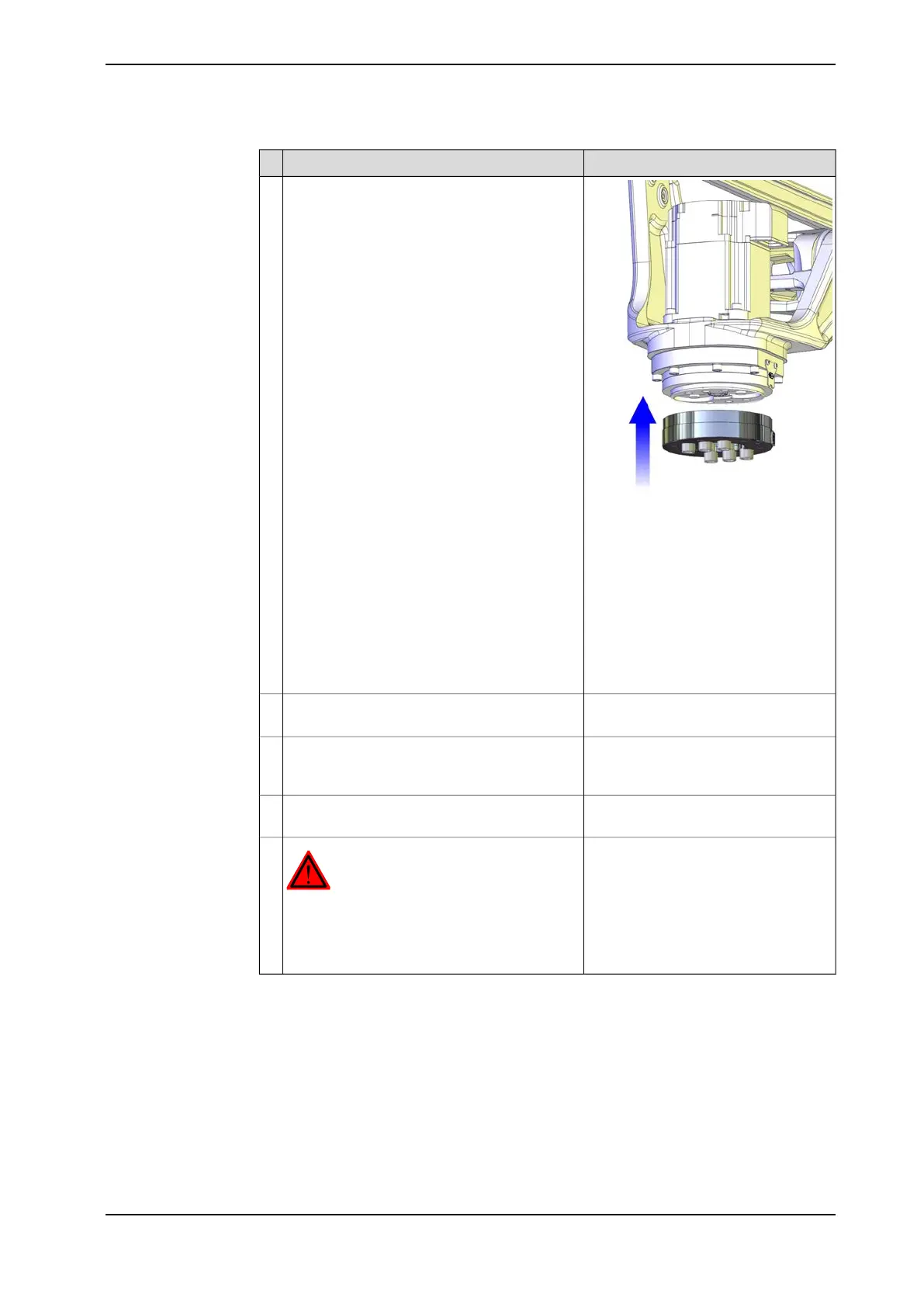

xx1100000078
Attachment screws M10x25 quality 12.9
(6 pcs)
Tightening torque:
• 175 Nm
Reused screws may be used, providing
they are lubricated as detailed in sec-
tion Screw joints on page 379 before fit-
ting.
Secure the turning disk with its attachment
screws.
5
Detailed in the section Performing a
leak-down test on page 140.
Perform a leak-down test of the gearbox axis
6.
6
See section
• Changing oil, gearbox axis 6 on
page 130
Refill the axis 6 gearbox with oil.7
Refit any equipment removed during disas-
sembly to the turning disk.
8
DANGER
Make sure all safety requirements are met when
performing the first test run. These are further
detailed in the section First test run may cause
injury or damage on page 26.
9
Product manual - IRB 460 187
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.1 Replacing the turning disk
Continued
