NoteAction
xx1100000080

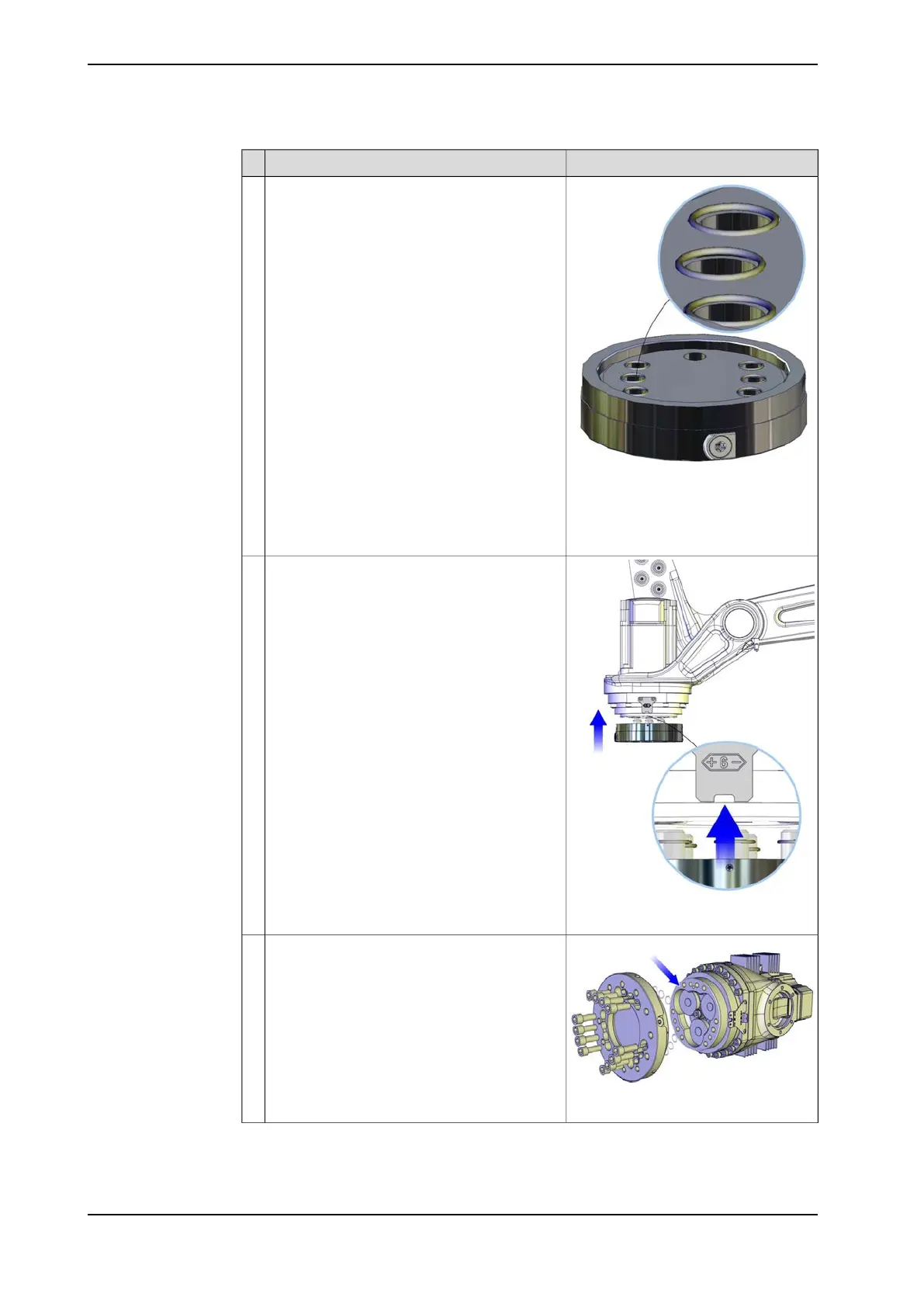

Put some grease on the o-rings (6 pcs) and fit
them in turning disk as shown in the figure.
2
xx1100000139
Locate the calibration mark on the turning disk
and place the turning disk at the tilthouse so
that the calibration mark matches the calibration
scale at the tilthouse.
The hole pattern of the turning disk allows the
turning disk to be fitted in three different rotated
positions. Matching the calibration marks
guarantees that the turning disk is fitted at the
correct turn, provided that the axis 6 was set
in calibration position before the turning disk
was removed!
3
xx1400000995
Foundry Plus:
Apply Loctite 574 flange sealant on the contact
surface.
4
Continues on next page
186 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.1 Replacing the turning disk
Continued
