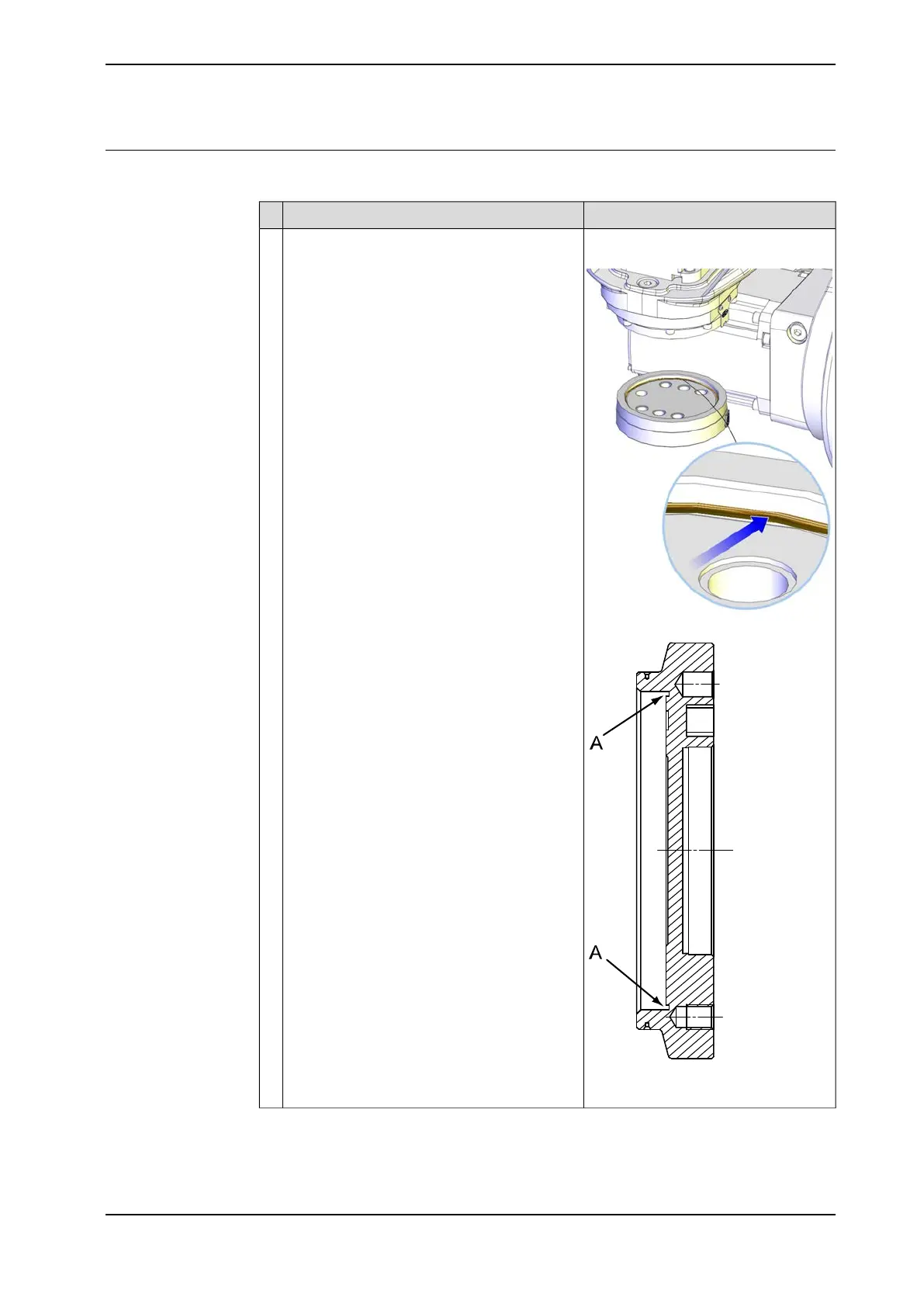

Refitting, turning disk
Use this procedure to refit the turning disk.
NoteAction
Art. no. is specified in Required equip-
ment on page 182.
xx1100000140
Lubricate the o-ring of the turning disk with
grease and fit it to the turning disk.
1
xx0200000218
• A: Sealing surface, o-ring
Continues on next page
Product manual - IRB 460 185
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.1 Replacing the turning disk
Continued
