ABB IRB 460 Series - Page 184

NoteAction
See section
• Changing oil, gearbox axis
6 on page 130
Drain the axis 6 gearbox.5
xx1100000075

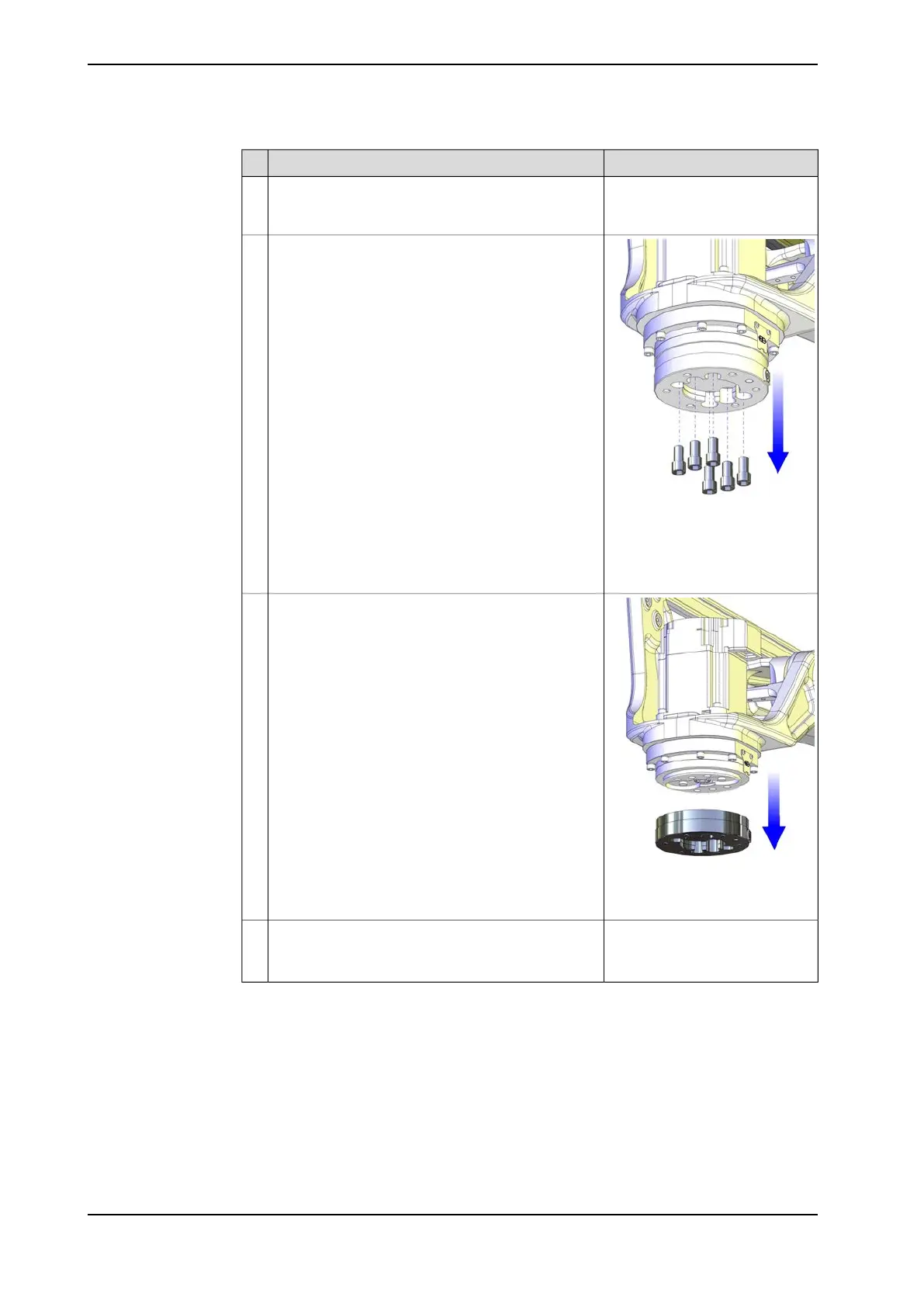

Remove the attachment screws that secure the
turning disk.
6
Shown in the figure Location of
turning disk on page 182.
xx1100000076
Remove the turning disk.7
Foundry Plus:8
Remove old flange sealant residues and other con-
tamination from the contact surfaces.
