NoteAction
xx1100000227

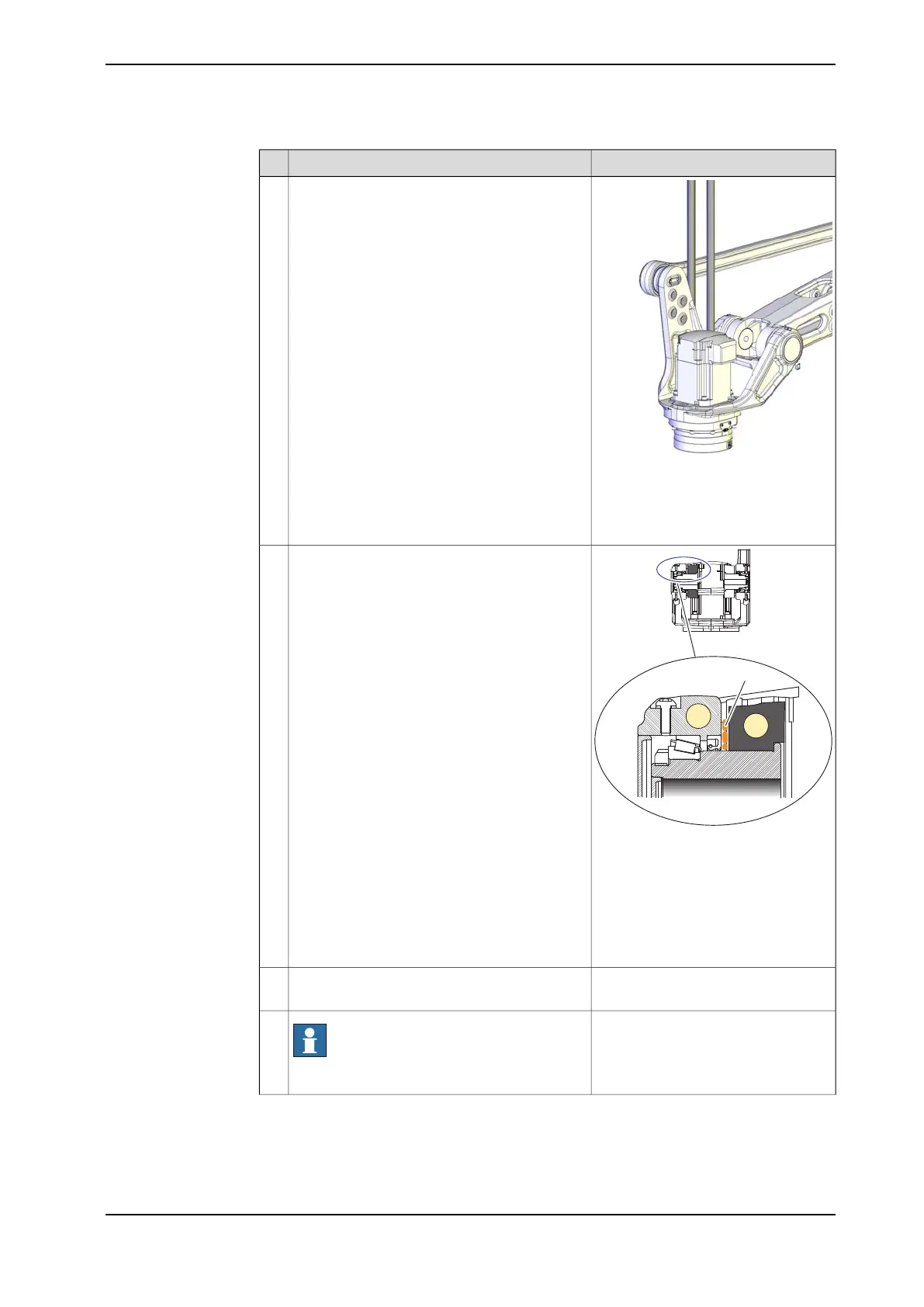

Secure the tilthouse with a roundsling in an
overhead crane or similar and lift it to its
mounting position on the upper arm and let it
rest on a workbench, some pallets or similar
(as when removing it).
2
xx1100000248
Apply rust preventive (Dinitrol 490) on the sur-
face where the tilthouse faces the upper arm.
3
Parts:
A: Dinitrol 490
B: Tilthouse
C: Upper arm
Art. no. is specified in Required
equipment on page 192.
Apply some grease in the hole for the shaft in
the upper arm.
4
See Location of axes 2 and 3 sides of
the robot on page 190.
Note
Refit the axis 2 side first!
5
Continues on next page
Product manual - IRB 460 205
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
