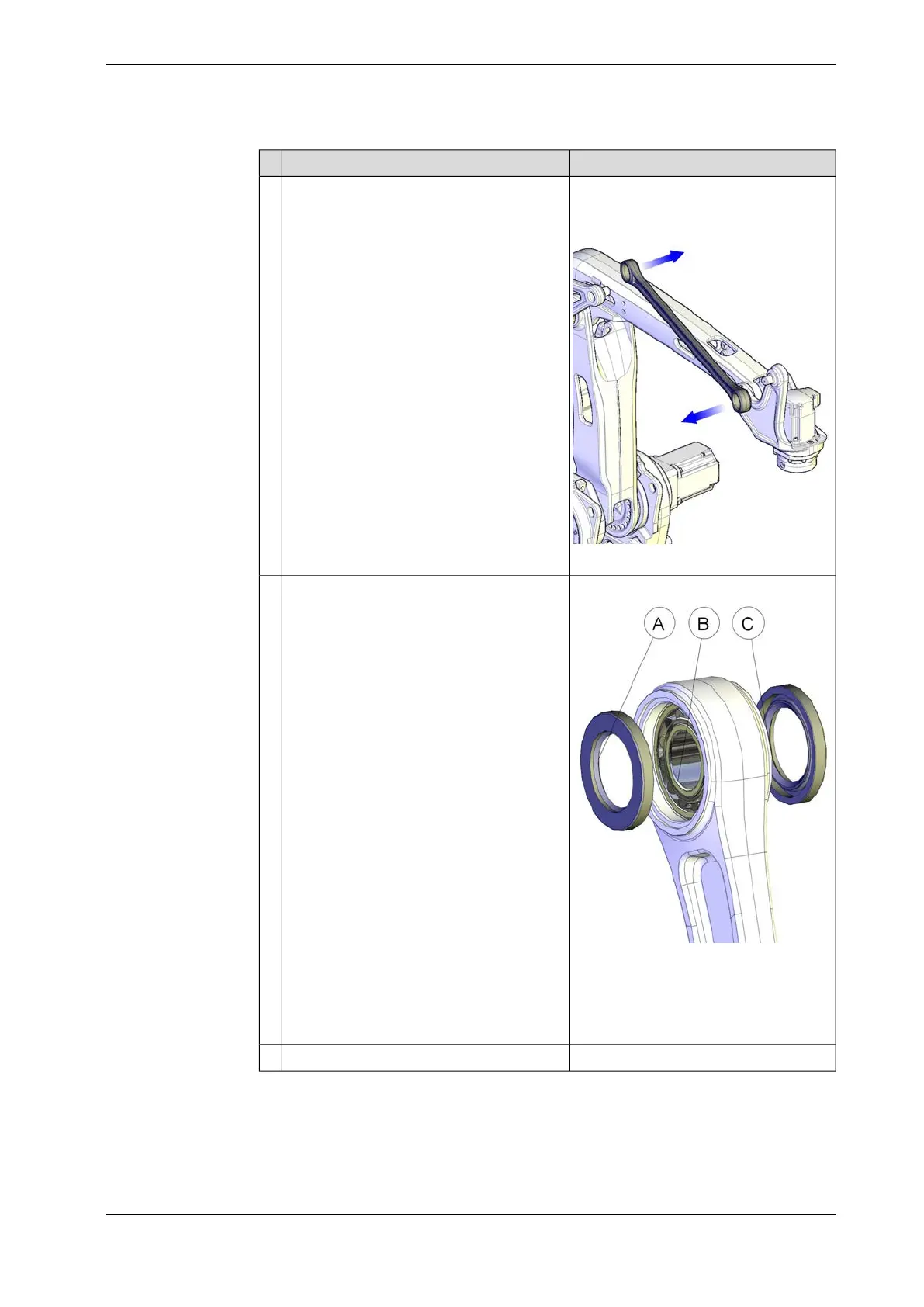

Remove the upper link arm as shown in the
figure.
A three legged bearing puller will be needed
to remove the link arm from the link. To re-
move it from the tilthouse a plastic mallet can
be used.
7
xx1100000172
Remove the radial sealing rings.8
Parts:
A Radial sealing ring
B Bearing
C Radial sealing ring
Remove residual grease.9
