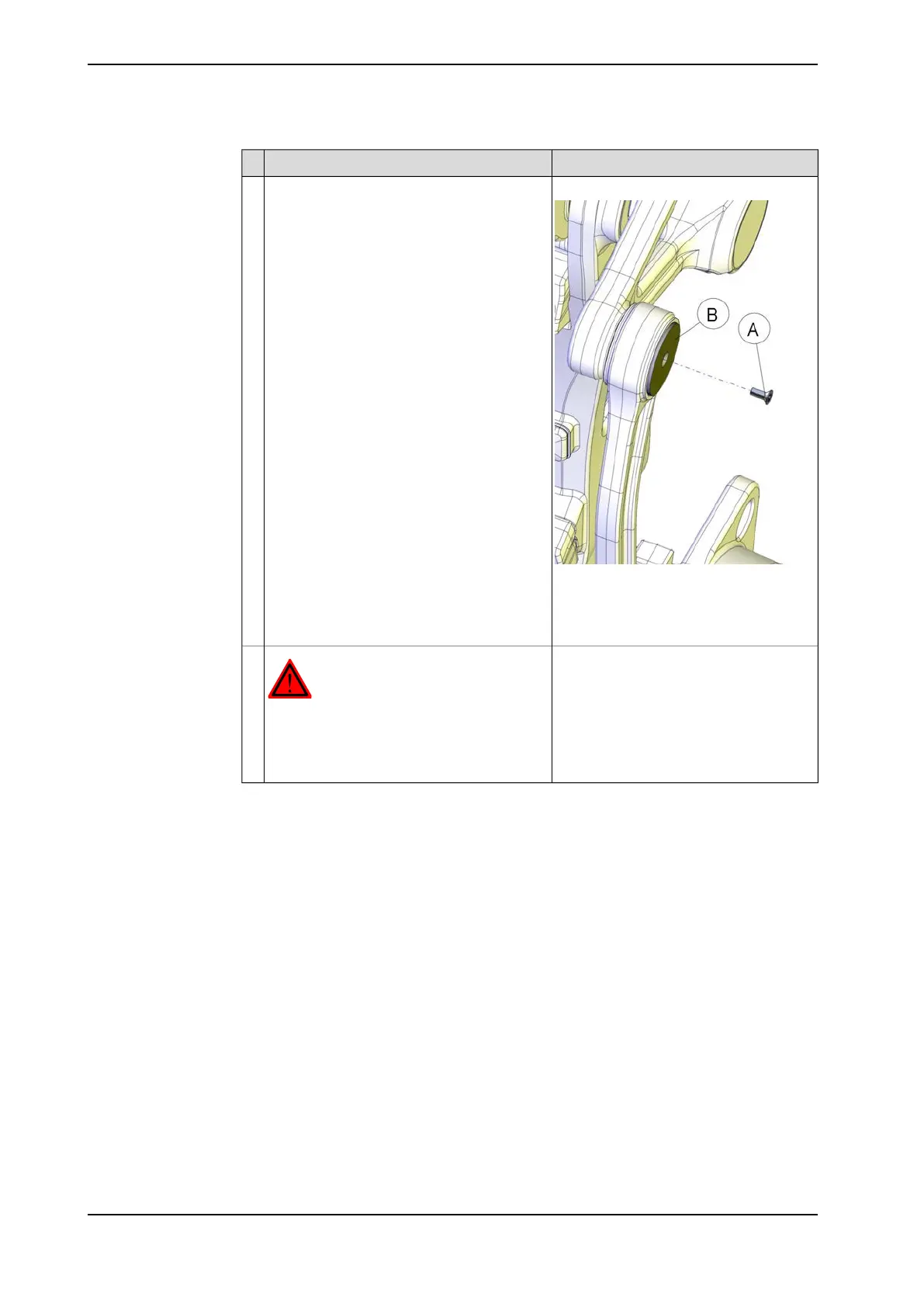

NoteAction
Tightening torque: 25 Nm.
xx1100000170
Secure the locking washer with the lock
screw.
7
Parts:
A Lock screw
B Locking washer
DANGER
Make sure all safety requirements are met
when performing the first test run. These are
further detailed in the section First test run
may cause injury or damage on page 26.
