NoteAction
Loctite 243Apply locking liquid on the lock screw.6
Tightening torque: 25 Nm.
xx1100000170

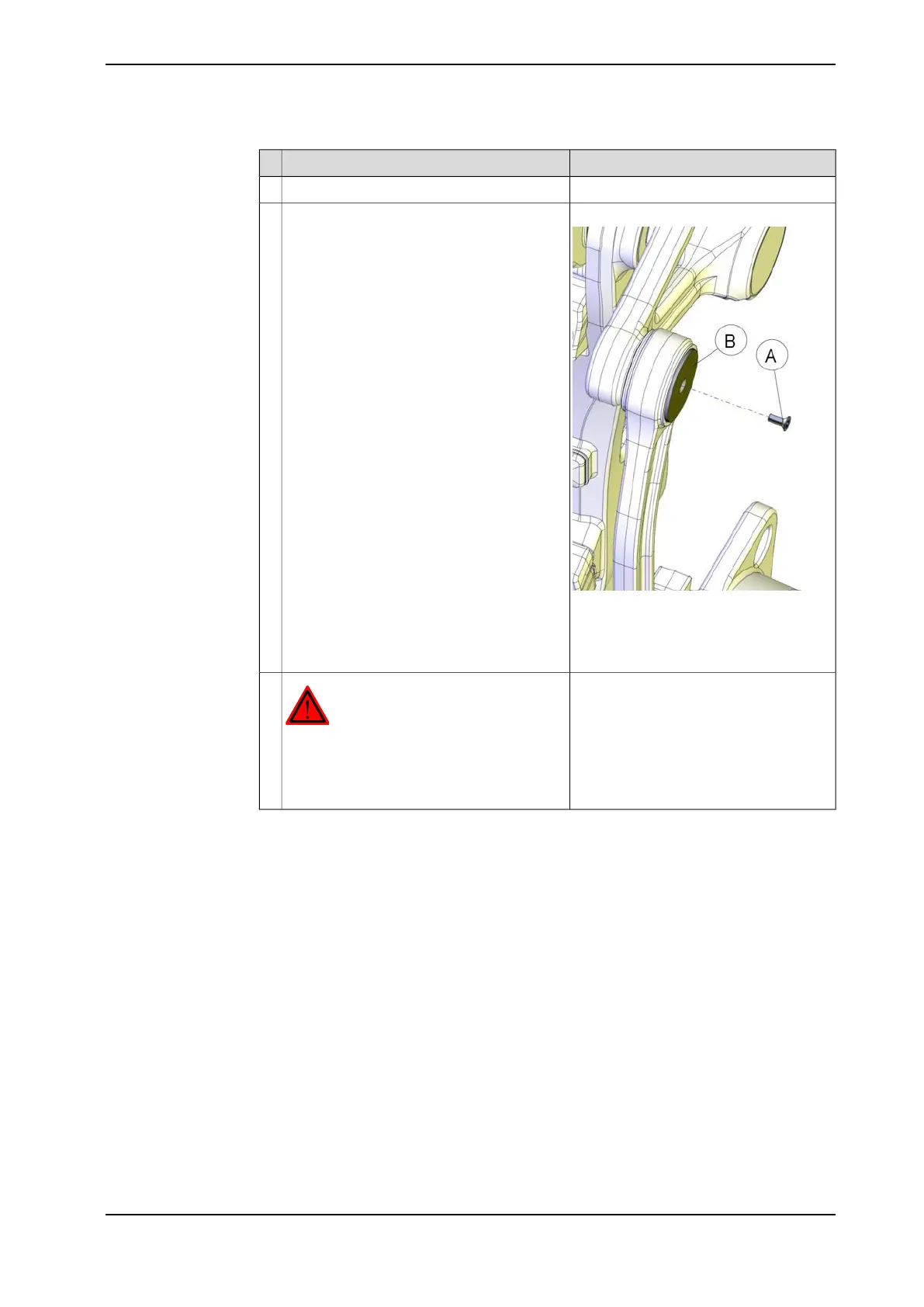

Secure the locking washer with the lock
screw.
7
Parts:
A Lock screw
B Locking washer
DANGER
Make sure all safety requirements are met
when performing the first test run. These are
further detailed in the section First test run
may cause injury or damage on page 26.
8
Product manual - IRB 460 239
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.5 Replacing linkage - lower link arm
Continued
