NoteAction
Loctite 243
xx1100000197

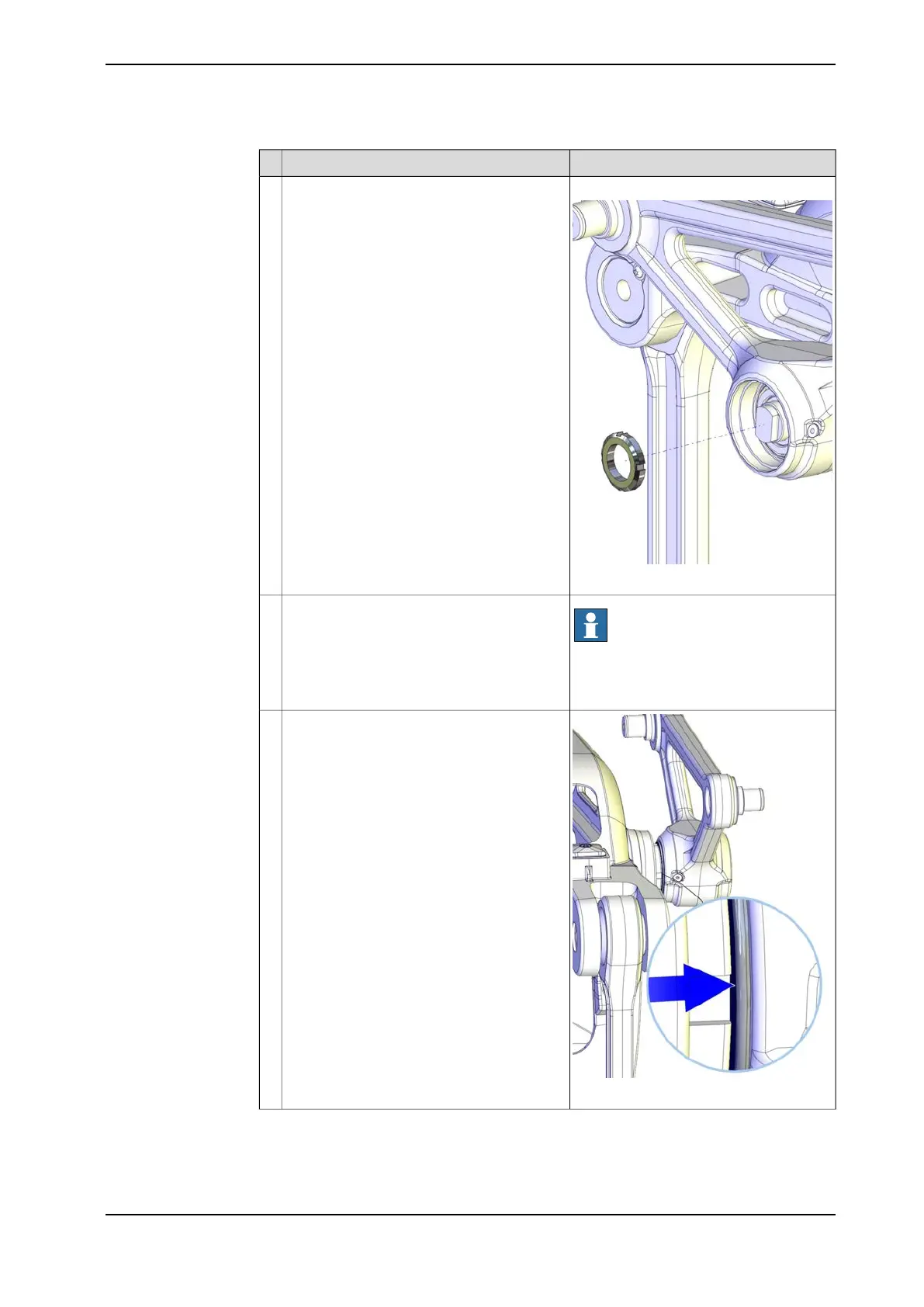

Apply locking liquid on the lock nut.11
Note
The recommended order of tightening the
lock nut is important to follow to avoid
future problems with the shaft.
Secure the lock nut in these three steps:
1 Tighten with a torque of 300 Nm, while
rotating the link at the same time.
2 Unscrew the lock nut
3 Tighten the lock nut finally with a
tightening torque of 90 Nm.
12
xx1100000204
Valid for design with POM sealing.
Use a screwdriver carefully to fit the POM
sealing into its final position.
13
Continues on next page
Product manual - IRB 460 253
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.6 Replacing the linkage - link
Continued
