NoteAction
Art, no, is specified in Required equip-
ment on page 242.
xx1100000201

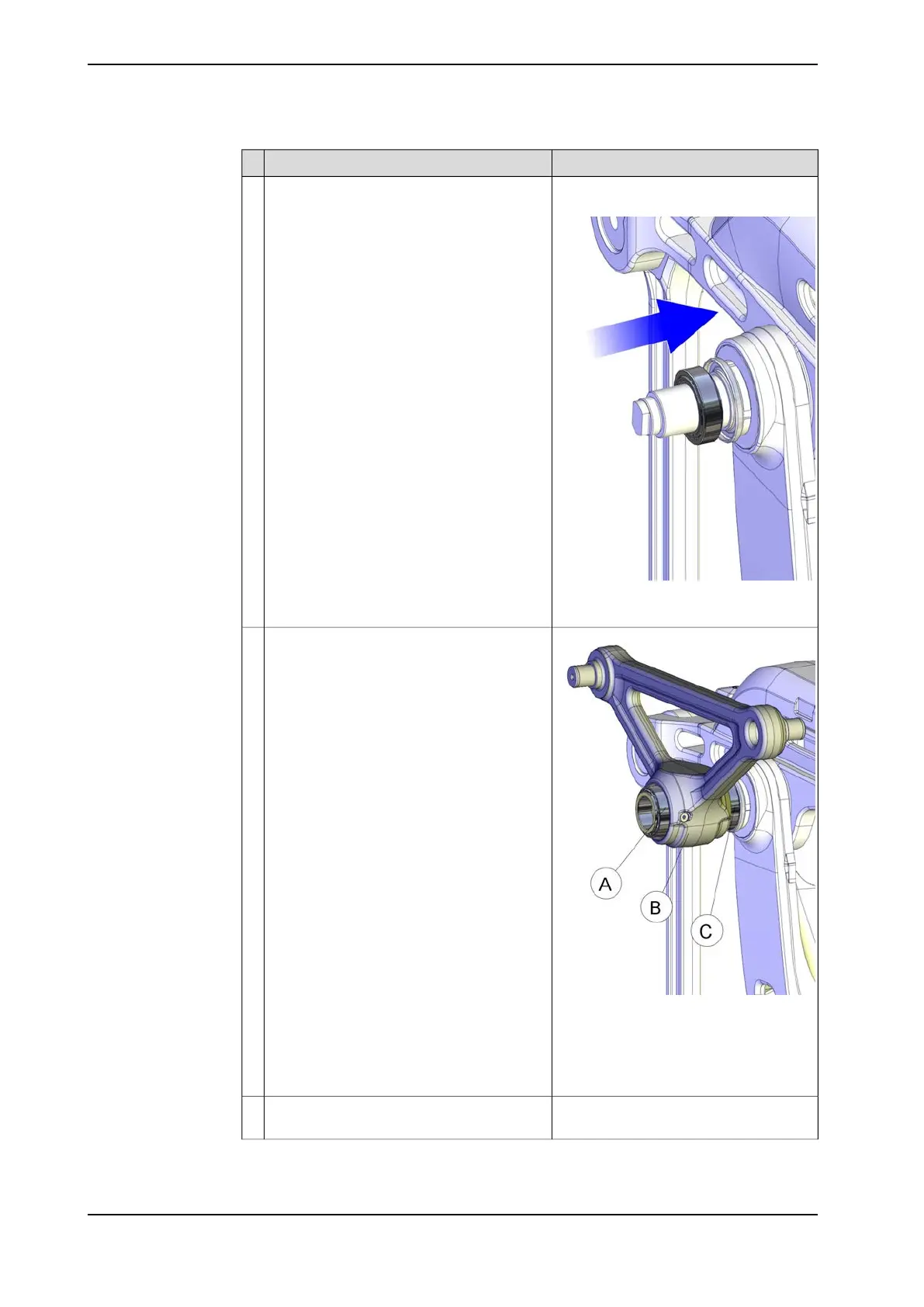

Place the inner race of the inner bearing on
the shaft and press it in position using the
press tool link.
8
Auxiliary shaft not shown in this figure.
xx1100000202
Place the inner race of the outer bearing and
link, in the following order on the shaft:
• link
• bearing
9
Parts:
A: Inner race of outer bearing
B: Link
C: Inner bearing complete
Art.no. is specified in Required equipment
on page 242.
Press the parts together with the press tool,
link.
10
Continues on next page
252 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.6 Replacing the linkage - link
Continued
