NoteAction
xx1300000004

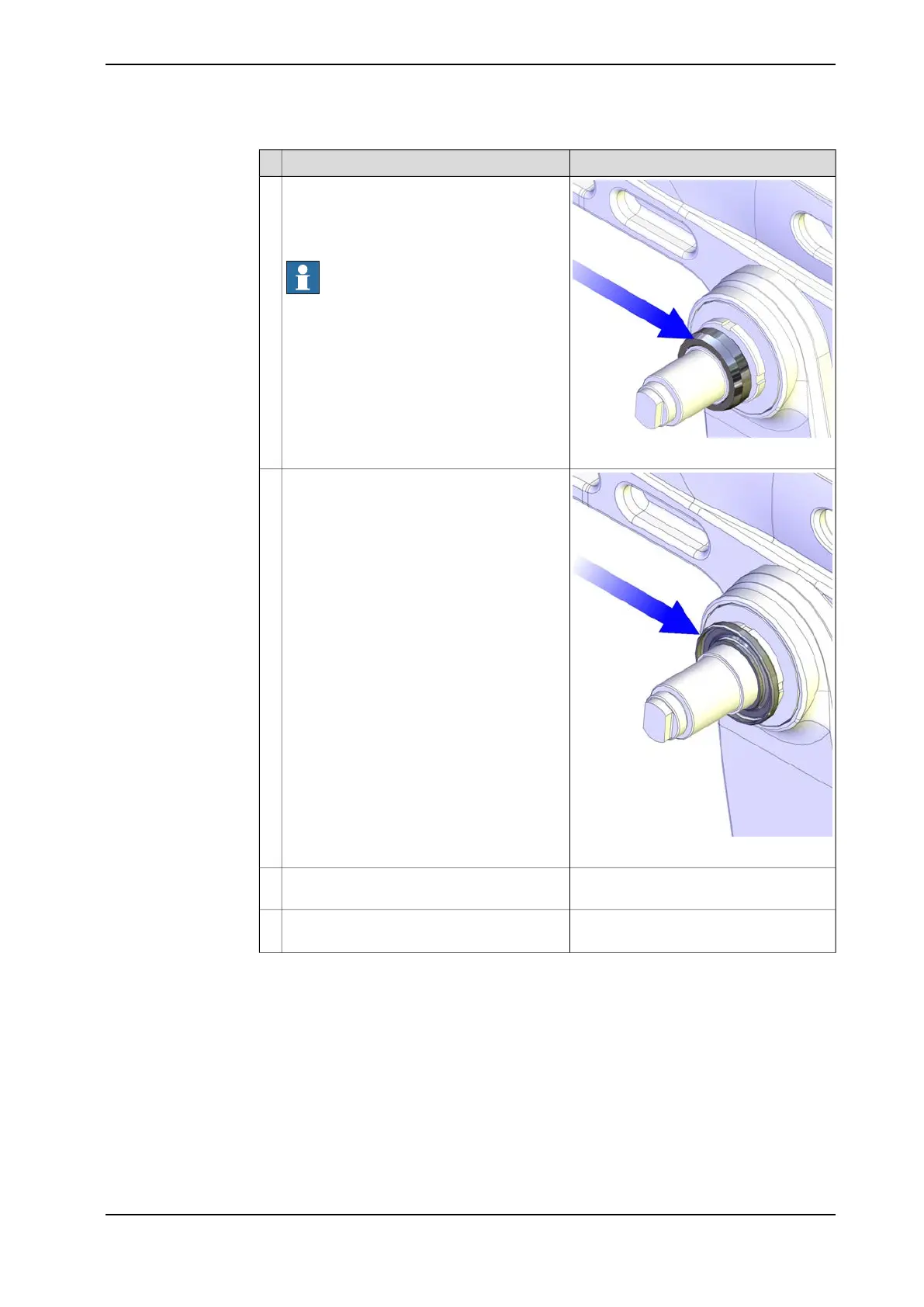

Valid for design with support ring.
Fit the support ring with the included o-ring
on the shaft. Use a plastic mallet, if neces-
sary.
Note
Align the chamfer side of the support ring
with the shaft shoulder as shown in figure.
4
xx1100000200
Valid for design with POM sealing.
Place the POM sealing on the shaft.
5
Secure the link with a roundsling in an over-
head crane and lift it to the mounting position.
6
Art.no. is specified in Required equipment
on page 242
Fit the auxiliary shaft on the shaft.7
Continues on next page
Product manual - IRB 460 251
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.6 Replacing the linkage - link
Continued
