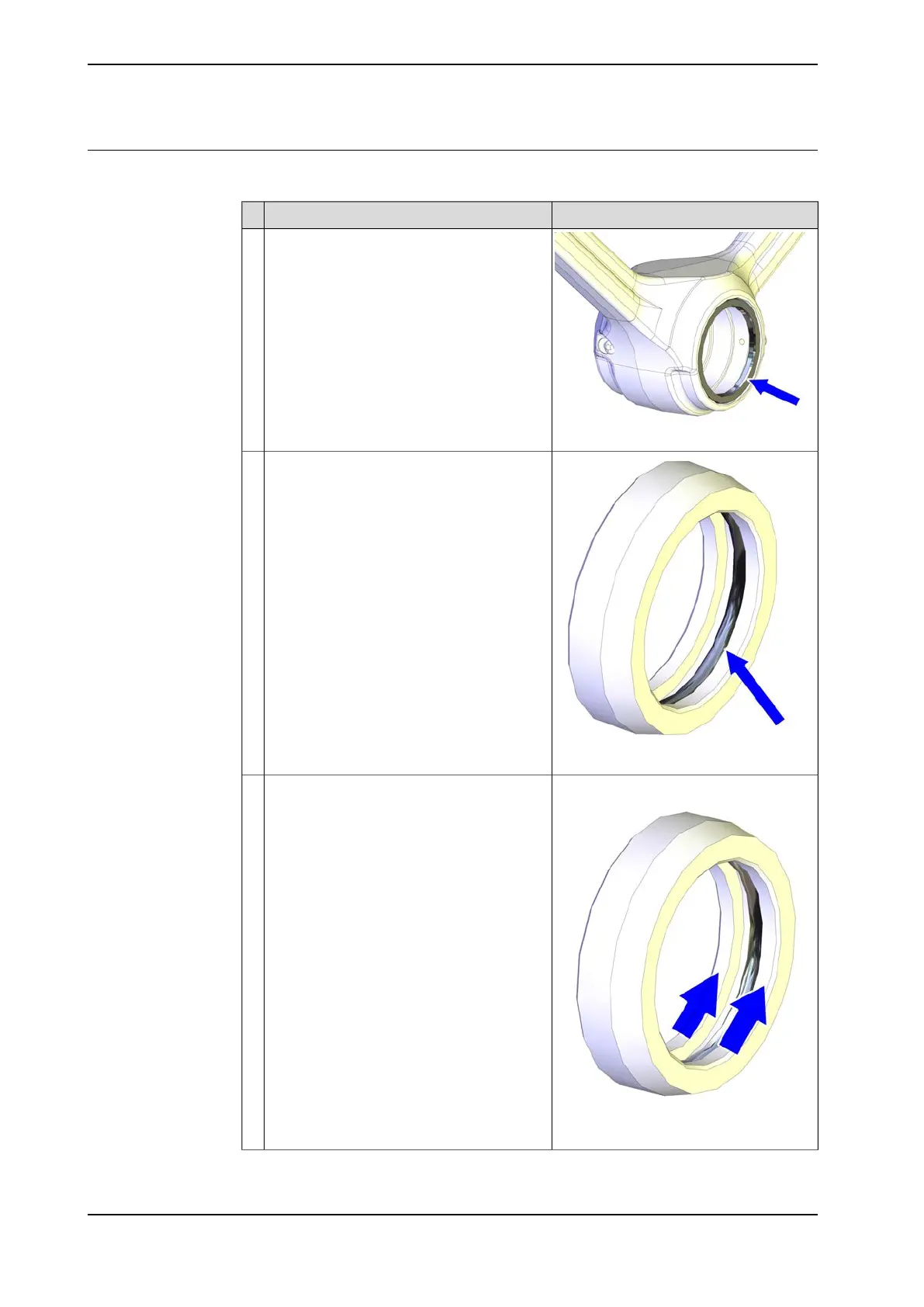

Refitting the link
Use this procedure to refit the link of the linkage.
NoteAction
xx1300000006
Valid for design with support ring.
Place the radial sealing in the link.
1
xx1300000005
Valid for design with support ring.
Place the o-ring inside the groove of the
support ring.
2
Loctite 574
xx1300000008
Valid for design with support ring.
Apply locking liquid on the inner surface of
the support ring.
3
Continues on next page
