NoteAction
Put the link on a workbench.1
Art. no. is specified in Required equip-
ment on page 242
Apply one of the outer race of the bearings
on the pressing tool link and press it in posi-
tion.
2
Check that the parts and the tool are ap-
plied correctly, as shown in the figures
above.
See figure above!
Art. no. is specified in Required equip-
ment on page 242
Apply the other outer race of the bearings on
the pressing tool link and press it in position.
See figure above!
3
Check that the parts and the tool are ap-
plied correctly, as shown in the figures
above.

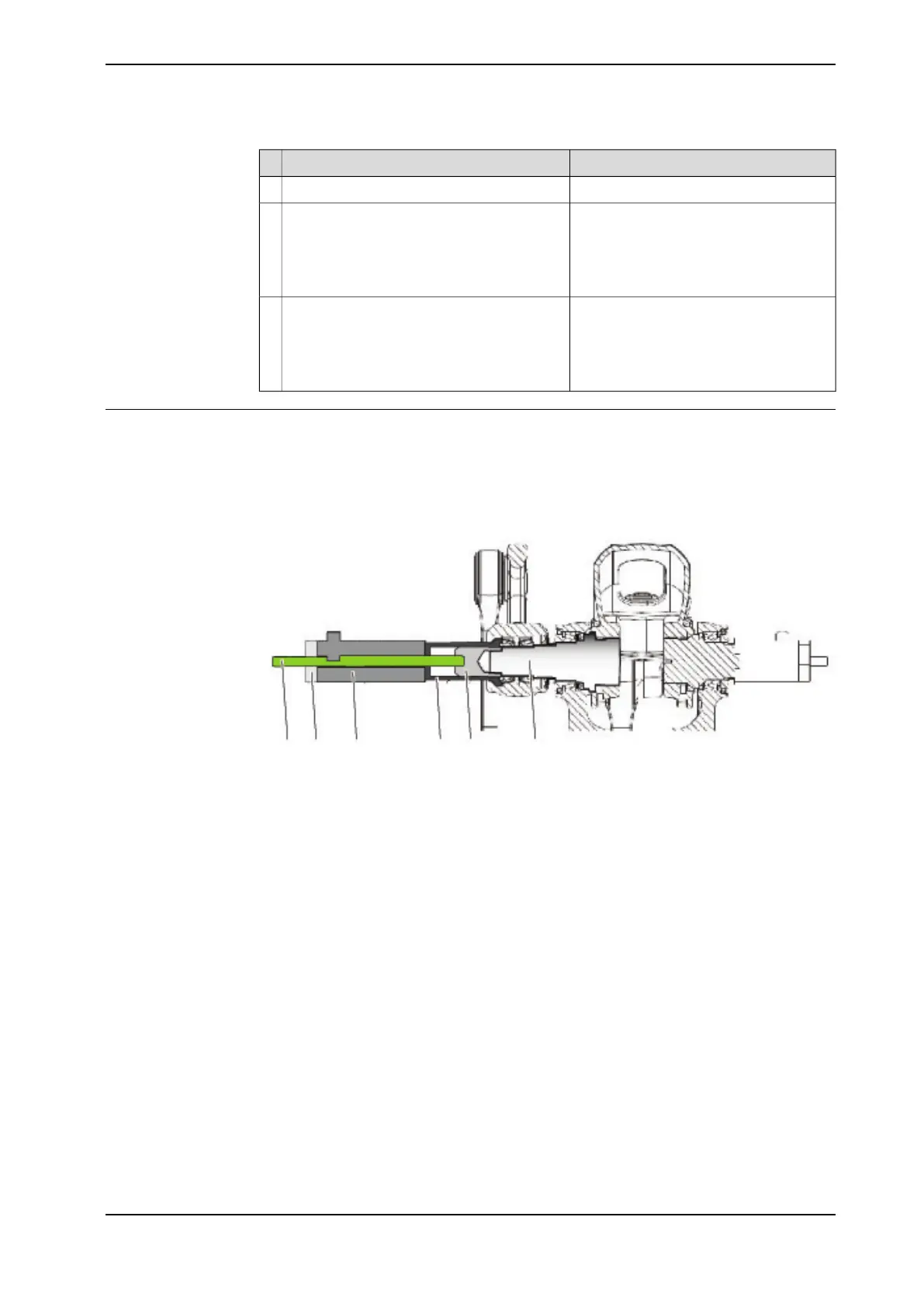

Press tool link
The figure shows the press tool link fitted to a link with the POM sealing. The press
tool is fitted in the same way to a link that has a support ring instead of a POM
sealing.
For art. no. see Required equipment on page 242.
xx1100000211
A Threaded bar M16
B Thread washer
C Hydralic cylinder
D Press bush
E Auxiliary shaft
F Shaft
Continues on next page
Product manual - IRB 460 249
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.6 Replacing the linkage - link
Continued
