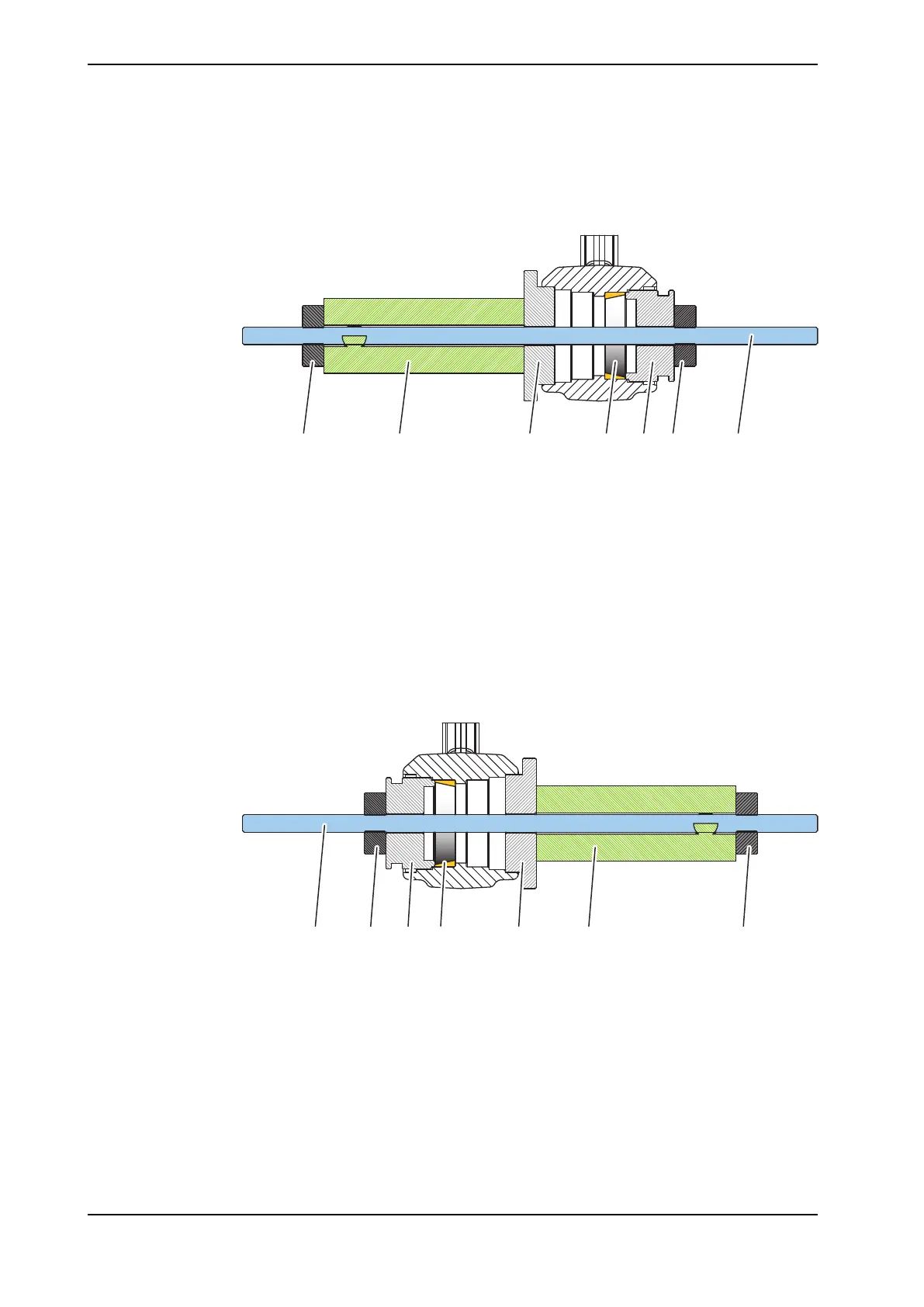

The figure shows the press tool and its parts, placed in the link ready to start the
pressing of the outer races of the bearings.
Pressing the outer race of the inner bearing
B
A
C
DEFG
xx1100000210
A Threaded bar M16
B Stop nut
C Press tool link (bearing outer races)
D Outer race of the inner bearing in link
E Press tool support
F Hydralic cylinder
G Stop nut
Pressing the outer race of the outer bearing
A B C D
E
F G
xx1100000209
A Threaded bar M16
B Thread washer
C Press tool link (bearing outer races)
D Outer race of the outer bearing in link
E Press tool support
F Hydralic cylinder
G Thread washer
