NoteAction
xx1100000199
Remove the POM sealing or the support ring
(depending on version of sealing structure).
12
Wipe off residual grease.13
Valid for design with support ring.14
Remove the radial sealing from the link, if the
link is to be replaced with a new spare part.
Replace the radial sealing, if damaged.
If needed, replace bearings.15

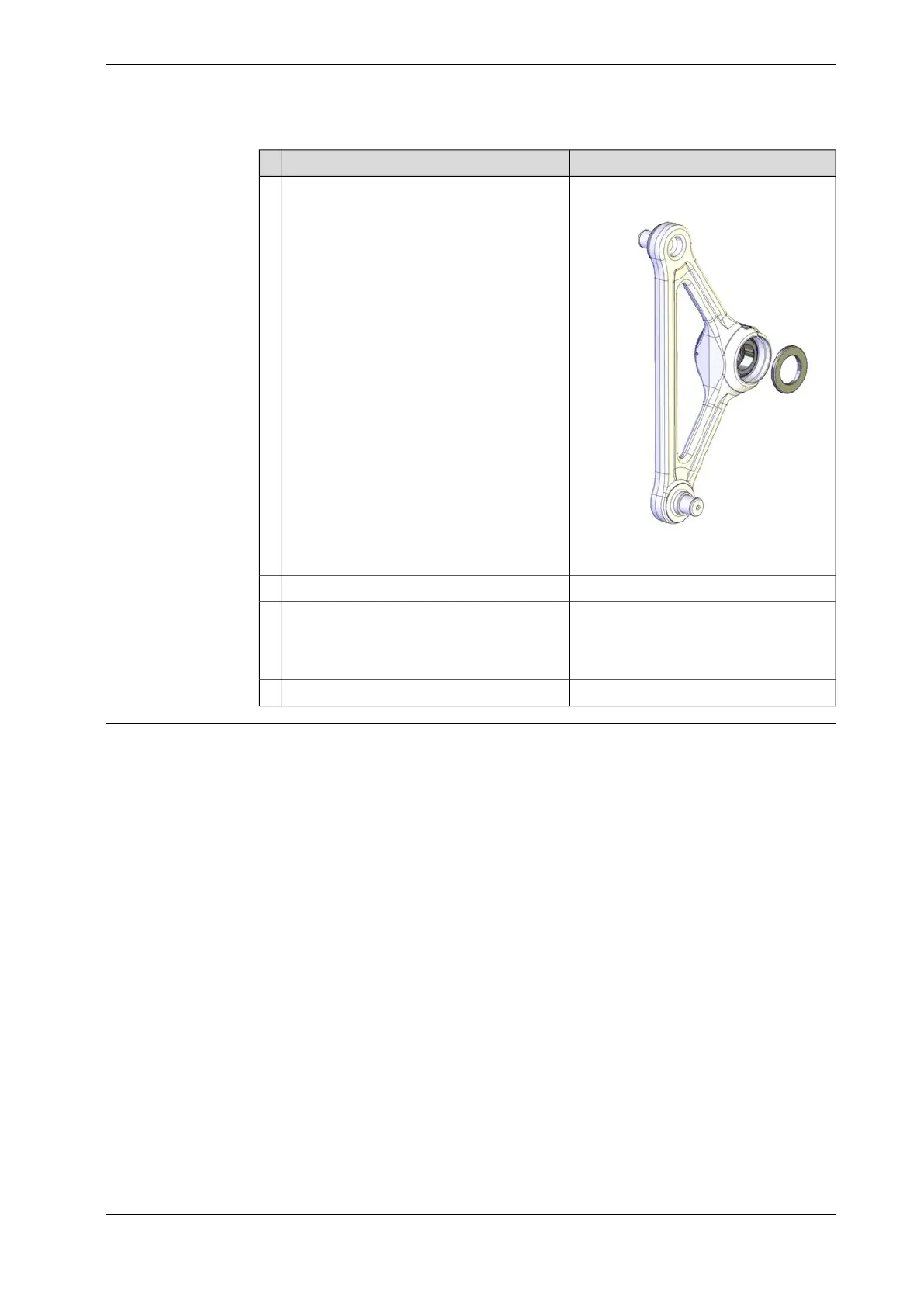

Preparations - fitting outer races of the bearings in link
Use this procedure to fit the outer races of the bearings in the link. Fit the outer
races one at a time using the press tool as shown in the figures. For art. no. see
Required equipment on page 242.
Continues on next page
Product manual - IRB 460 247
3HAC039842-001 Revision: P
