NoteAction
Loctite 243
xx1000001349

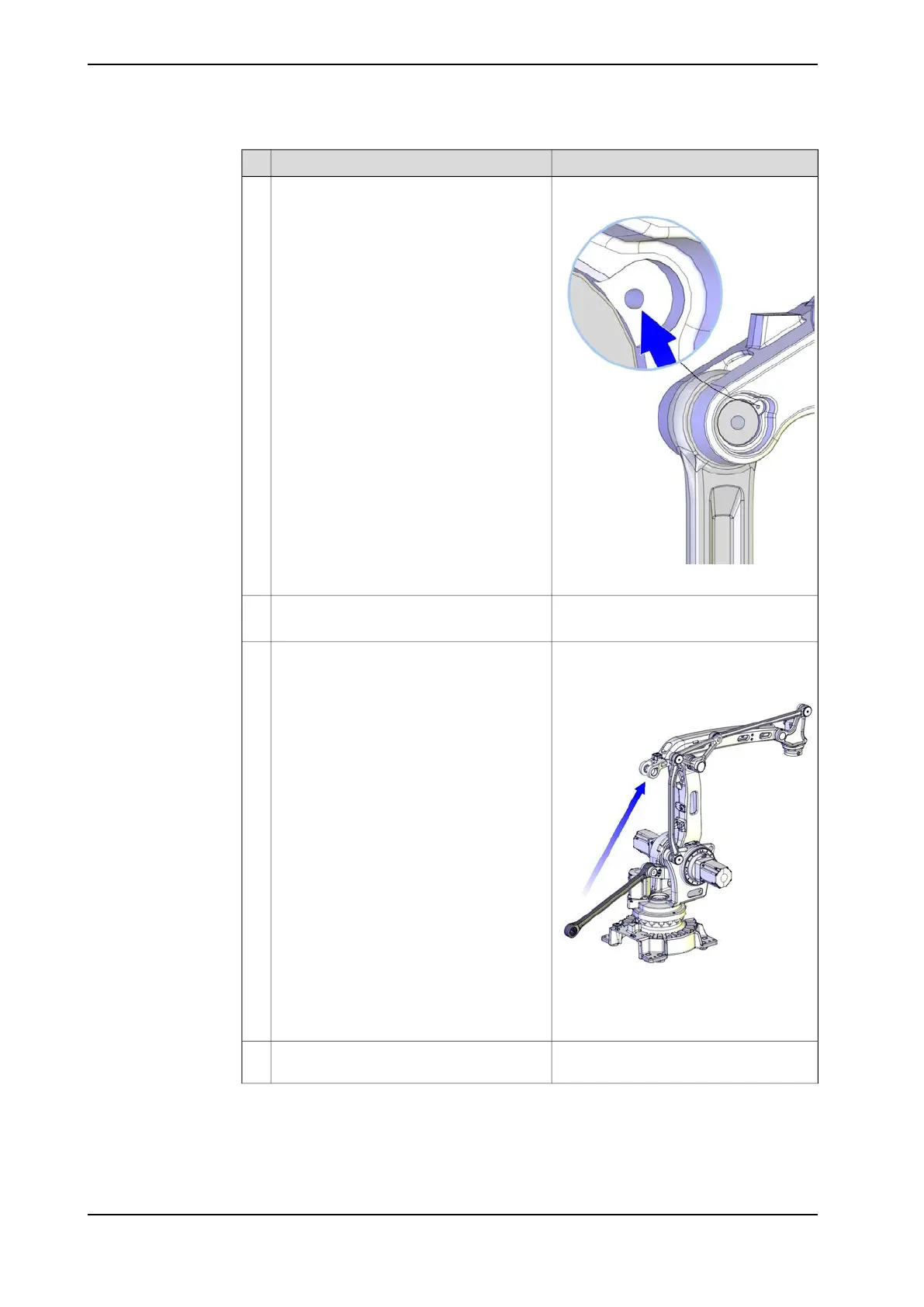

Apply locking liquid in the hole of the lock
screw.
9
Lock screw: M6x 16Refit the lock screw and plain washer.10
Plain washer: 6.4x12x1.6
xx1100000163
Lift the parallel rod up into position for fitting
of the upper end.
11
Refit the upper end of the parallel rod in the
same way.
12
Continues on next page
266 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.8 Replacing parallel rod
Continued
