NoteAction
xx1100000142

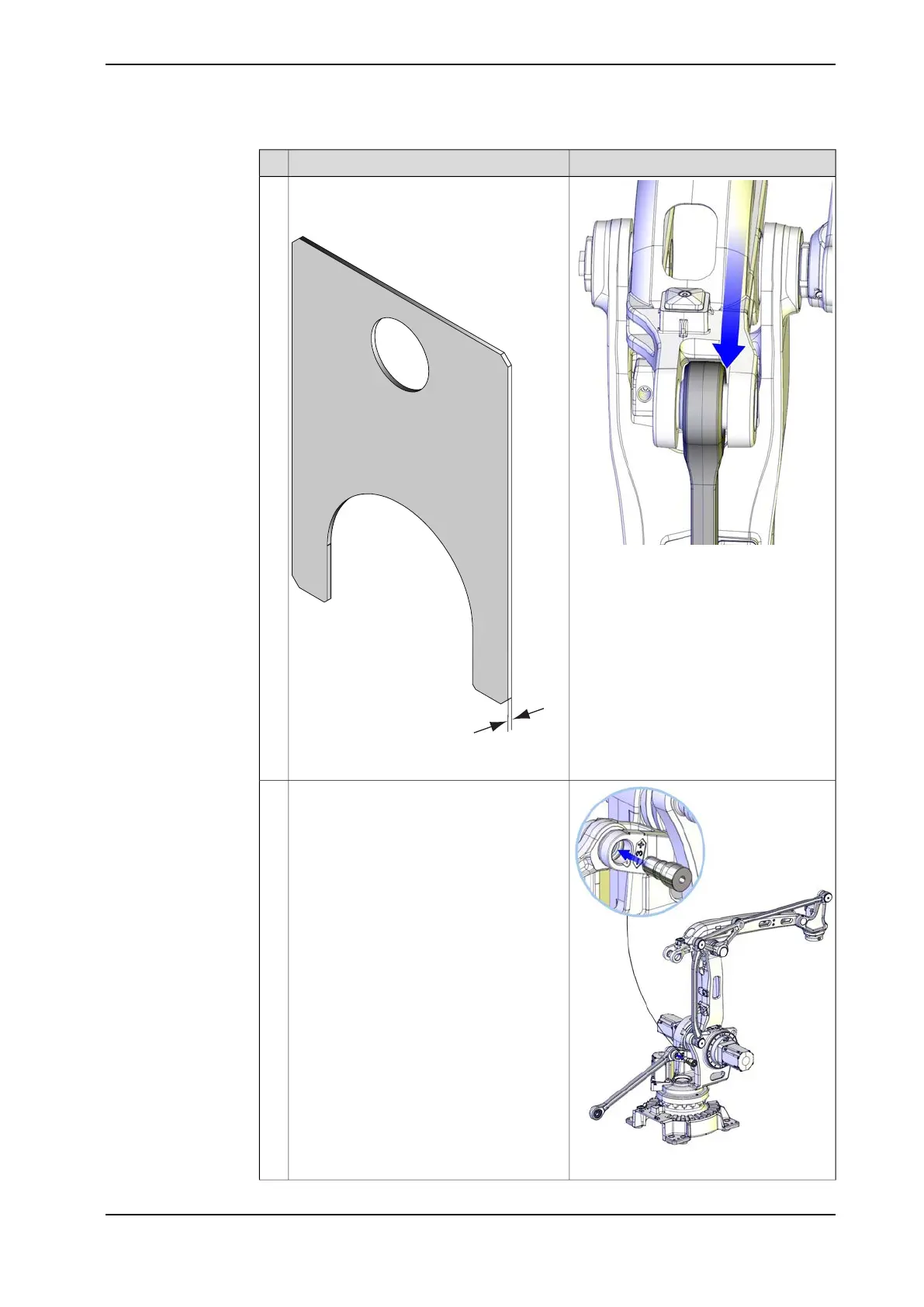

Apply a shims (T= 8 mm) on the axis 3 side,
as shown in the figure to the right.
Do not press the shims down too far.
xx1100000030
7
A = Thickness 8 mm
xx1100000162
Refit the shaft using the mounting/demount-
ing tool.
8
Continues on next page
Product manual - IRB 460 265
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.8 Replacing parallel rod
Continued
