ABB IRB 460 Series - Page 264

NoteAction
xx1100000151

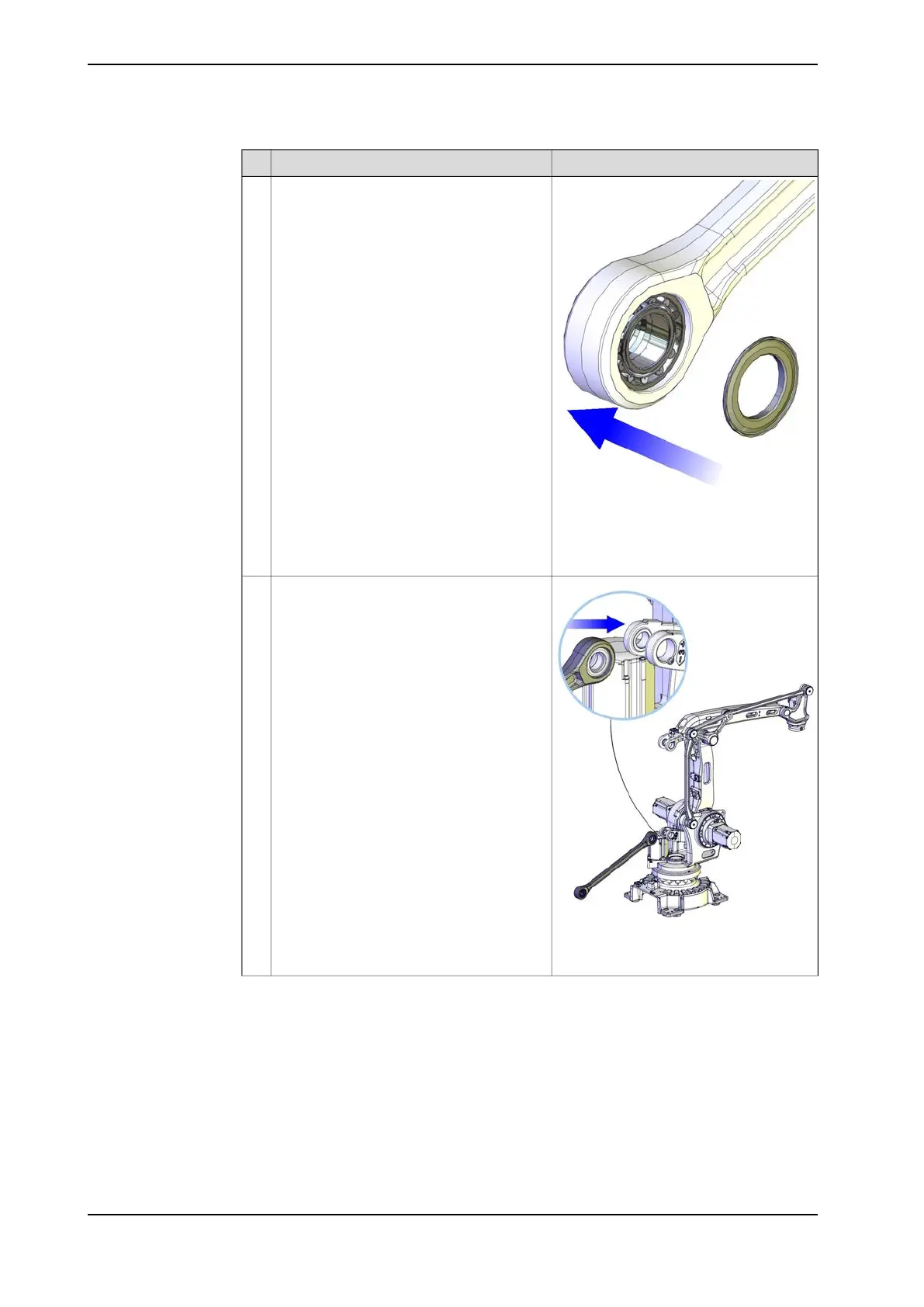

Place the other POM sealing on the axis 3
side.
5
xx1100000161
Place the parallel rod in its mounting posi-
tion in the lower end.
6
Continues on next page
264 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.8 Replacing parallel rod
Continued
