D Tread washer
Refitting the parallel rod
Use this procedure to refit the parallel rod. The procedure is the same in both ends.
NoteAction
Start refitting the lower end of the parallel
rod.
1
Make sure the bearings are in the correct
position in the parallel rod.
2

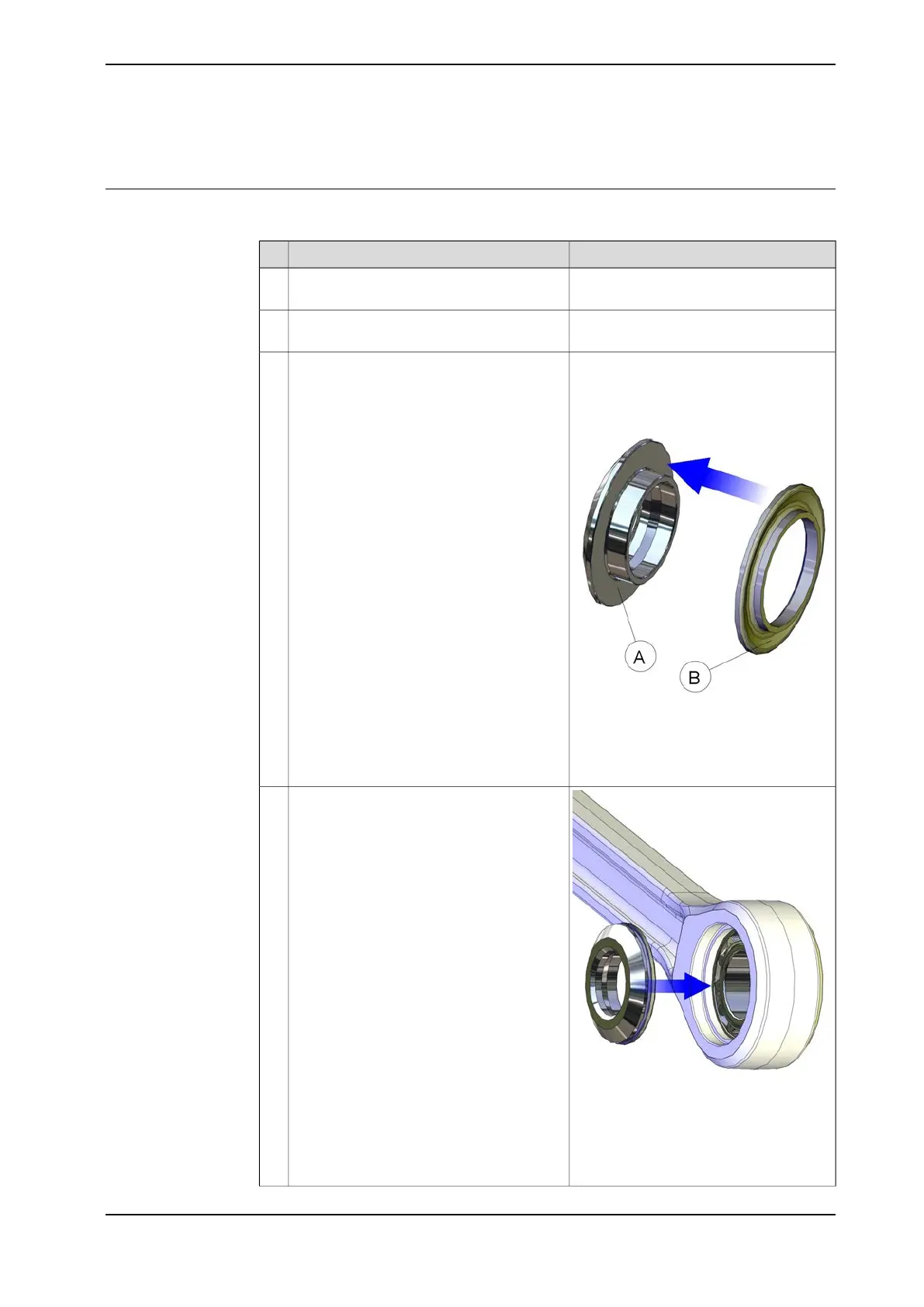

xx1100000148
• A: Thrust washer
• B: POM sealing
Fit a POM sealing on the thrust washer.3
xx1100000149
Put the thrust washer (with a POM sealing
fitted) on the axis 2 side of the parallel rod.
4
Continues on next page
Product manual - IRB 460 263
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.4.8 Replacing parallel rod
Continued
