NoteAction

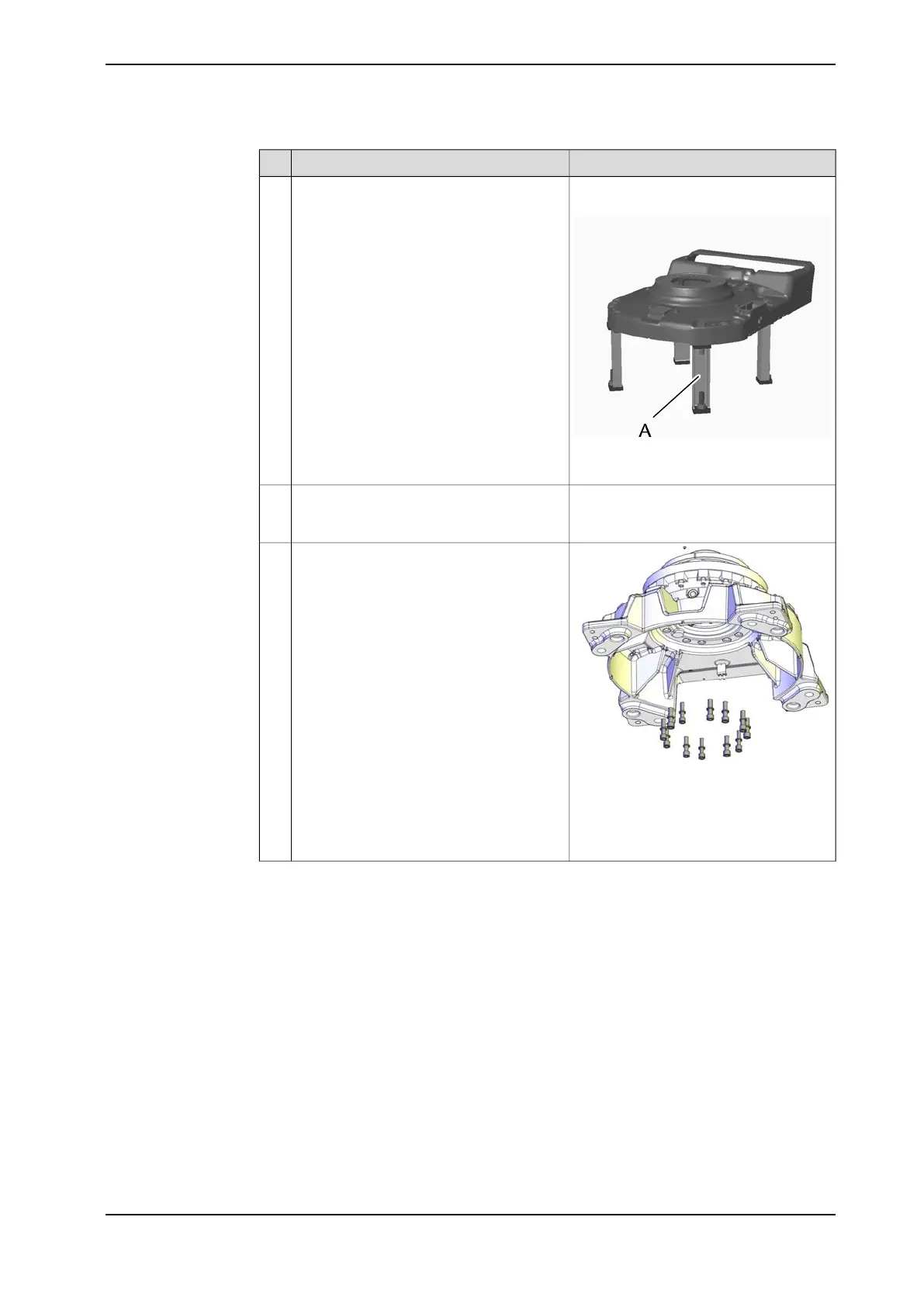

The figure shows IRB 760 but is also valid
for IRB 460.
xx1000000364
A Support base (4 pcs)
Secure the support to the base and to the
foundation.
Make sure the base remains in a stable
position before performing any work under-
neath the base!
10
Remove the bottom plate from underneath
the base in order to get access to the attach-
ment screws.
11
xx1100000207
Attachment screws: 12 pcs.
Washers: 12 pcs.
Unscrew the attachment screws and re-
move the washers.
12
Continues on next page
Product manual - IRB 460 317
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.6.1 Replacing the axis 1 gearbox
Continued
