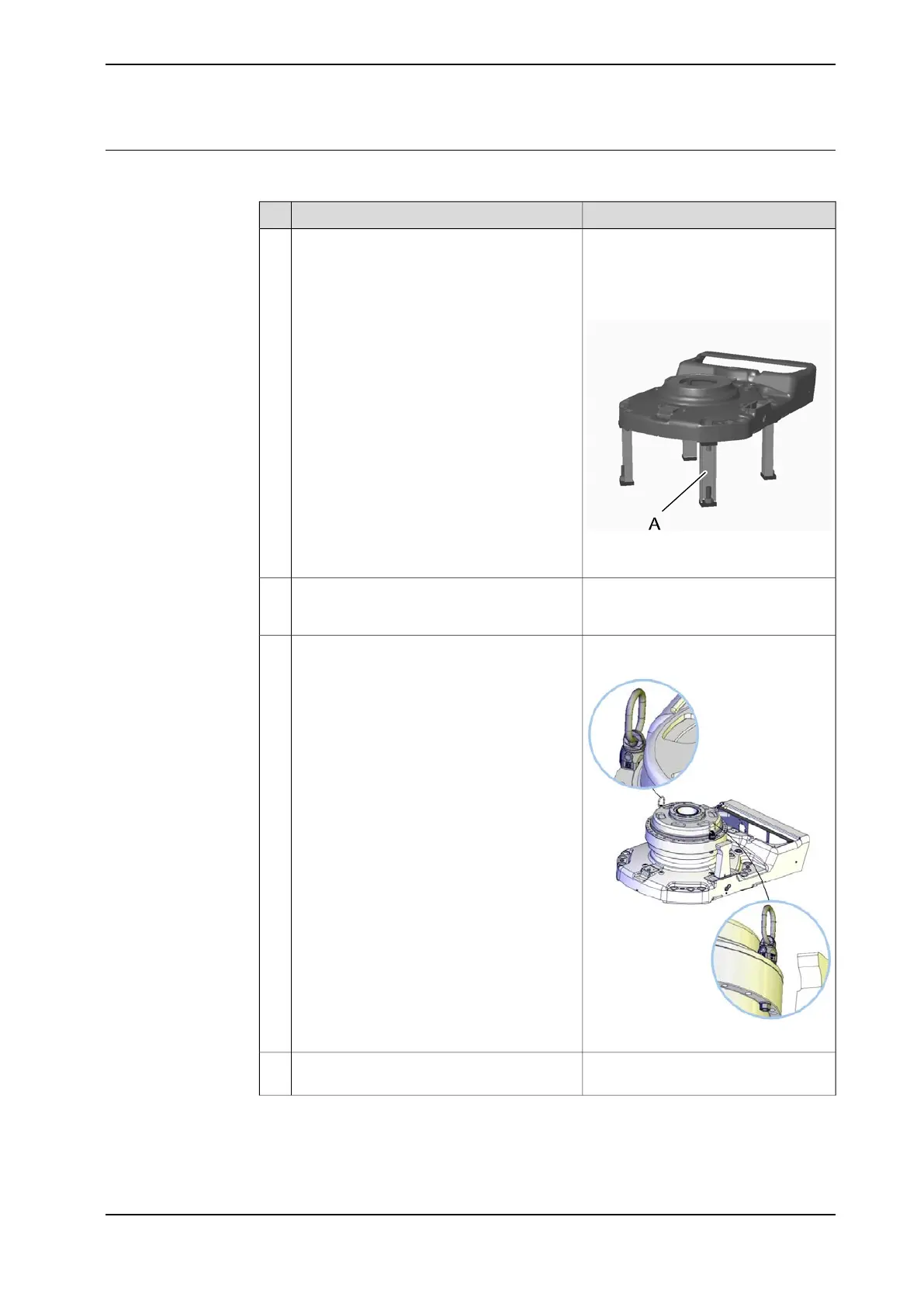

Refitting, gearbox axis 1
Use this procedure to refit gearbox, axis 1.
NoteAction
Mounting of the support, base and gear
1 is detailed in section Removal, gear-
box axis 1 on page 315.
Fit the support, base and gear 1 to the base.1
The figure shows IRB 760 but is also
valid for IRB 460.
xx1000000364
A Support base (4 pcs)
Art no. is specified in Required equip-
ment on page 313.
Make sure the o-ring is seated properly in its
groove on the gearbox. Lightly lubricate the
o-ring with grease.
2
Specified in Required equipment on
page 313.
xx1000001395
Fit two lifting eyes on each side of the gear-
box.
Attach the lifting accessory, base and gear 1
and a roundsling, to the gearbox.
3
Specified in Required equipment on
page 313.
Fit two guide pins in two of the attachment
holes in the gearbox, parallel to each other.
4
Continues on next page
Product manual - IRB 460 319
3HAC039842-001 Revision: P
