NoteAction
CAUTION
The gearbox weighs 108 kg.
All lifting accessories used must be sized ac-
cordingly!
5
xx1300000015

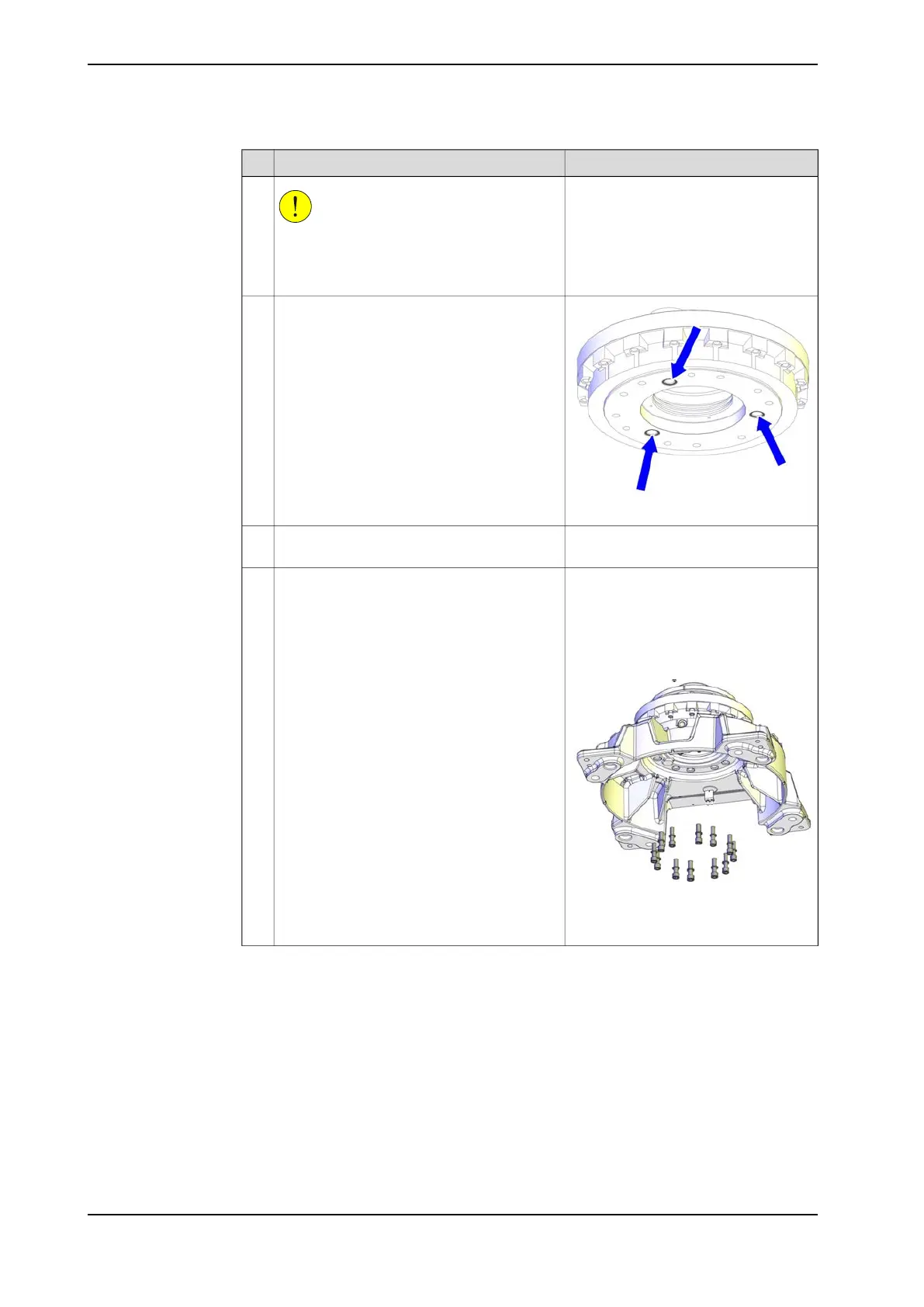

Check the three o-rings. Replace if damaged!6
Always use guide pins in pairs!Lift gearbox axis 1 onto the guide pins and
lower it carefully to its mounting position.
7
12 pcs, M16x60 quality 12.9 GleitmoSecure the gearbox with its attachment
screws and washers.
8
Tightening torque: 300 Nm
Reused screws may be used, providing
they are lubricated as detailed in sec-
tion Screw joints on page 379 before fit-
ting.
xx1100000207
Continues on next page
320 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.6.1 Replacing the axis 1 gearbox
Continued
