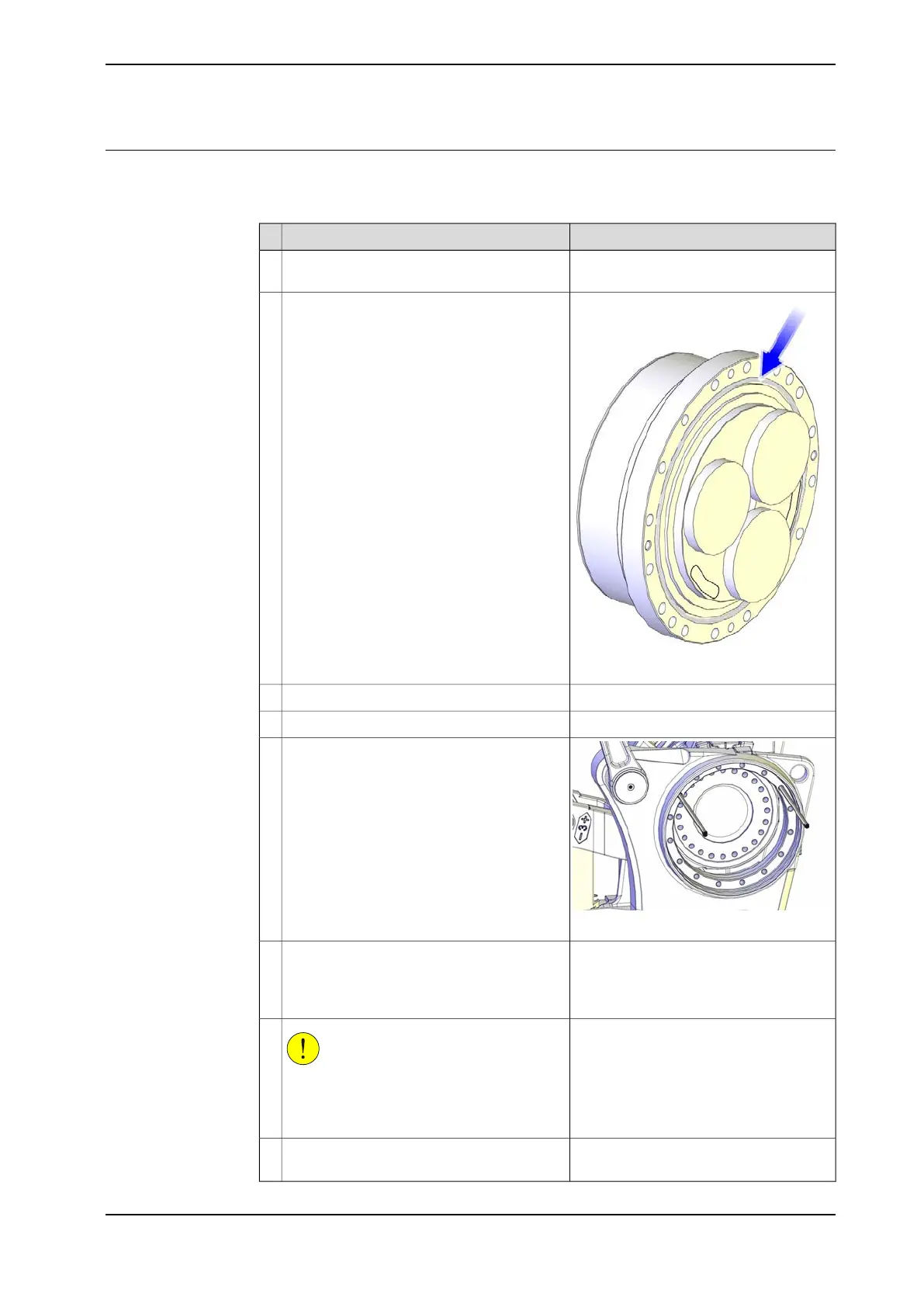

Preparations before refitting the axis 3 gearbox
Use this procedure to do the necessary preparations before removing the axis 3
gearbox.
NoteAction
Clean all contact surfaces from residuals of
paint and contamination.
1
xx1100000223
Make sure that the o-ring is fitted to the
gearbox.
2
Lightly lubricate the o-ring with grease.3
Apply some grease on all contact surfaces.4
xx1100000224
Apply two guide pins in opposite holes for
the gearbox, in the frame.
5
NOTE!Apply two guide pins in opposite holes of the
gearbox.
6
The position of the guide pins must be in
a way that they are possible to be re-
moved later.
One of the guide pins shorter than the other
in order to fascilitate fitting into the lower arm.
CAUTION
The gearbox weighs 51 kg.
All lifting accessories used must be sized
accordingly!
7
Art. no. is specified in Required equip-
ment on page 323.
Fit the lifting tool to the gearbox.8
Continues on next page
Product manual - IRB 460 335
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
4 Repair
4.6.3 Replacing the axis 3 gearbox
Continued
