Illustration of cooling fan

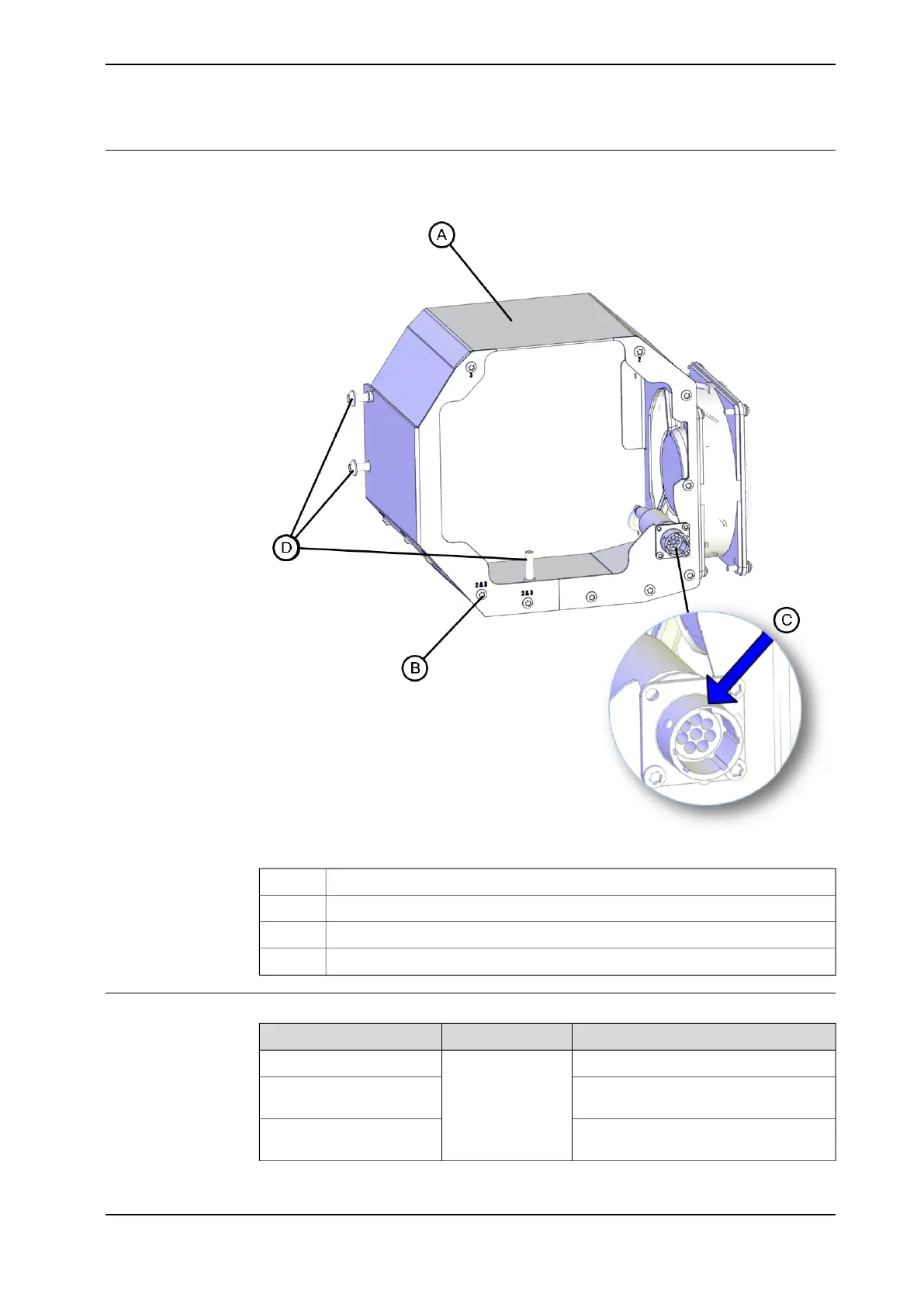

The details of the cooling fan are shown in the figure below.
xx1300000763
Fan boxA
Attachment screws (16 pcs)B
Groove in the connectorC
Tightening screws (3 pcs)D
Required equipment
NoteArt. no.Equipment
See Product manu-
al, spare parts - IRB
460.
Cooling fan
Choose this if equipping the robot with a
cooling fan on the axis-1 motor.
Fan axis-1 cable harness
Choose this if equipping the robot with a
cooling fan on the axis-1 motor.
Motor cover
Continues on next page
Product manual - IRB 460 85
3HAC039842-001 Revision: P
