NoteArt. no.Equipment
Loctite 243. Used for the three tightening
screws.
-Locking liquid
Content is defined in section Standard
tools on page 383.
-Standard toolkit
See chapter Circuit diagrams on page 391.-Circuit diagram
These procedures include references to
the tools required.
Other tools and procedures
may be required. See refer-
ences to these procedures
in the step-by-step instruc-
tions below.

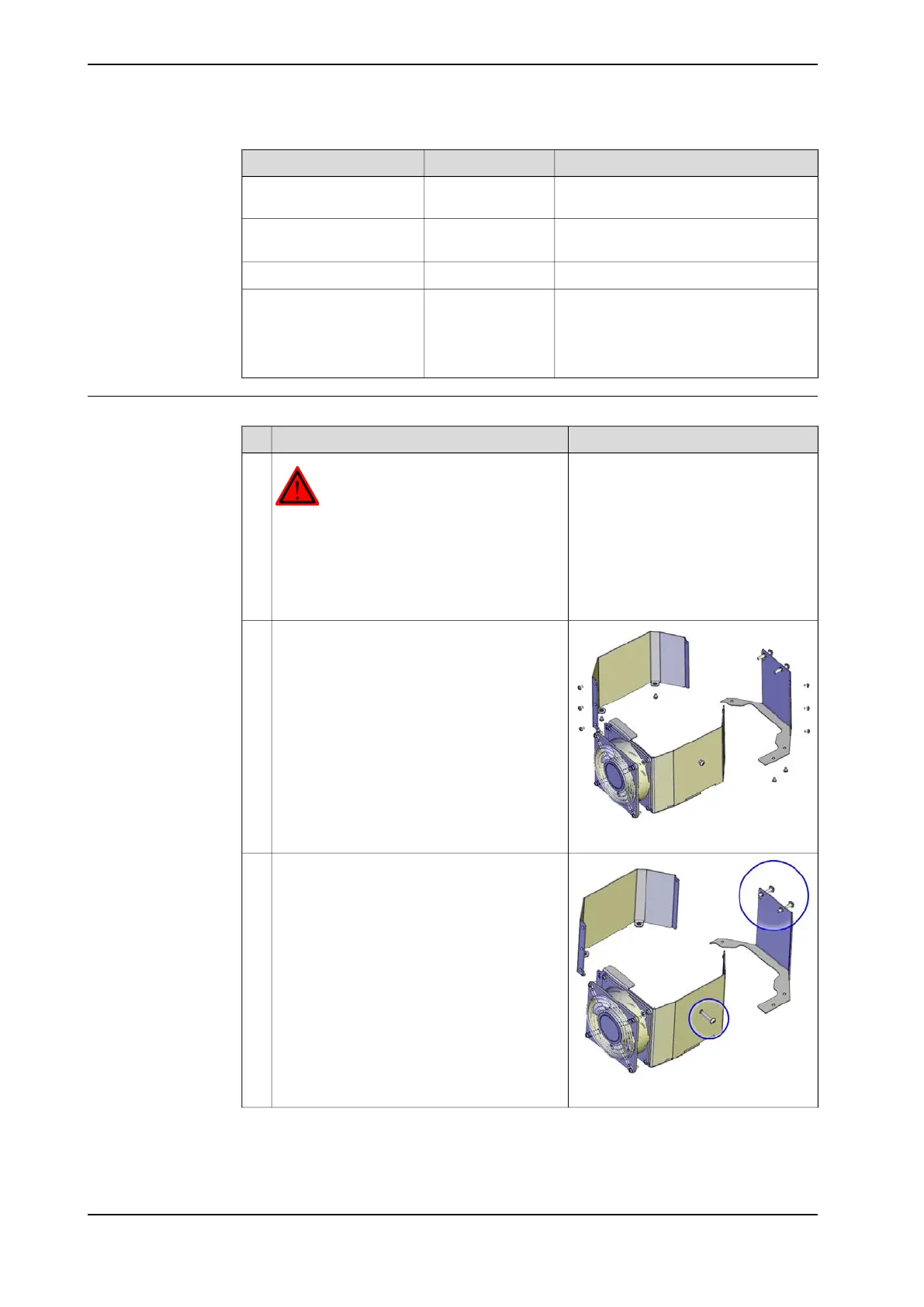

Installing the cooling fan
NoteAction
DANGER
Turn off all:
• electric power supply to the robot
• hydraulic pressure supply to the robot
• air pressure supply to the robot
Before entering the robot working area.
1
xx1300000843
Disassemble the parts of the fan box by remov-
ing the attachment screws.
2
xx1300000844
Loosen the three tightening screws, to avoid
damaging the surfaces of the motor when fit-
ting the fan box.
3
Continues on next page
86 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
2 Installation and commissioning
2.4.1 Option 87-1 - Installing the cooling fan for axis-1 motor
Continued
