NoteAction
xx1300000764

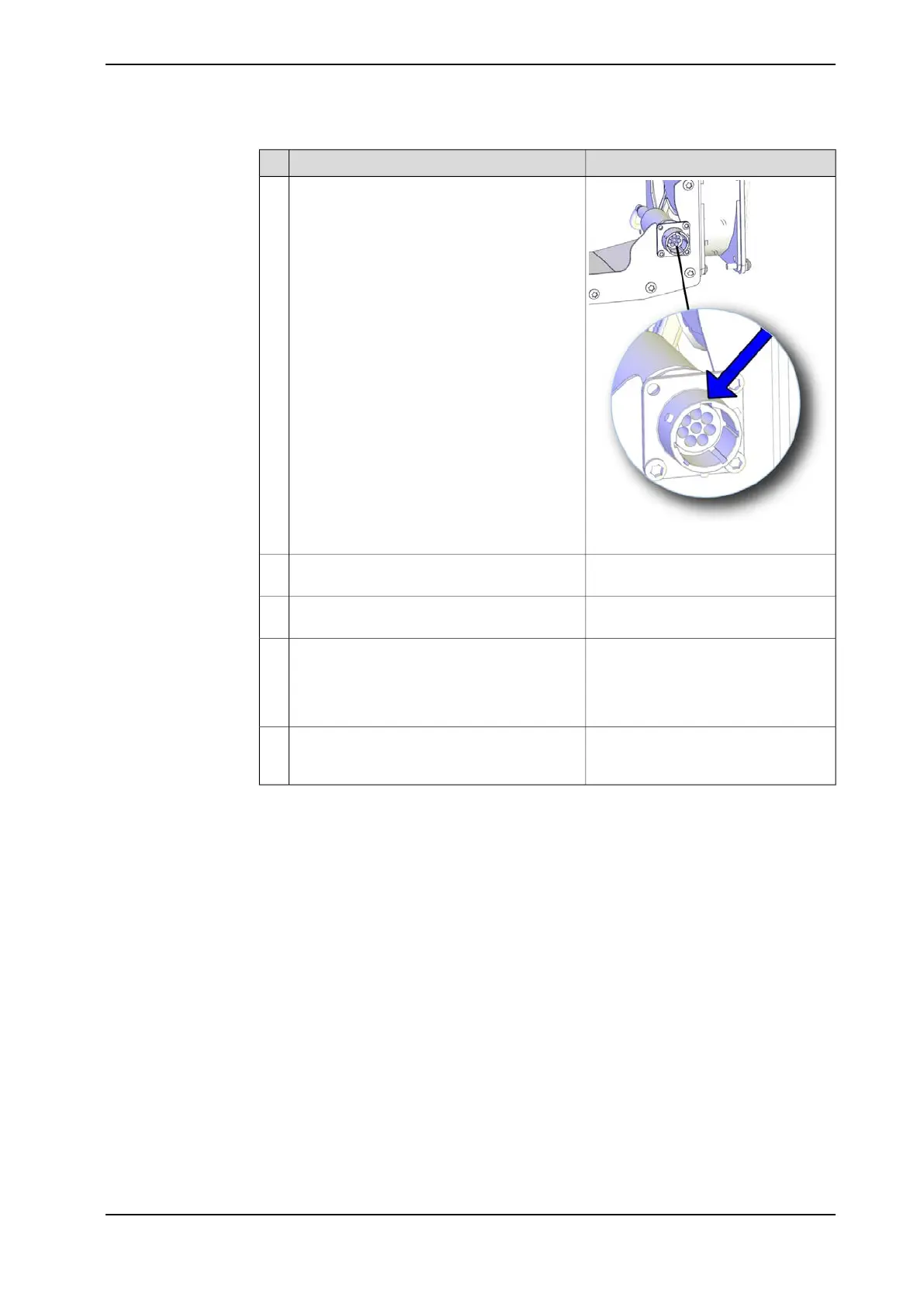

Insert and turn the connector so that the
groove points inwards, as shown in the figure.
4
Temporarily lift the motor cabling out of the
way to make room for the fan box.
5
Fit the parts of the fan box to the motor and
reassemble with the attachment screws.
6
Lift the fan box so that it does not rest directly
on the robot and secure the box with the three
tightening screws, using locking liquid. Tighten
them properly so that the box is firmly attached
to the motor.
7
Install the cabling and make adjustments in
RobotWare, as described in the following pro-
cedures.
8
Continues on next page
Product manual - IRB 460 87
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
2 Installation and commissioning
2.4.1 Option 87-1 - Installing the cooling fan for axis-1 motor
Continued
