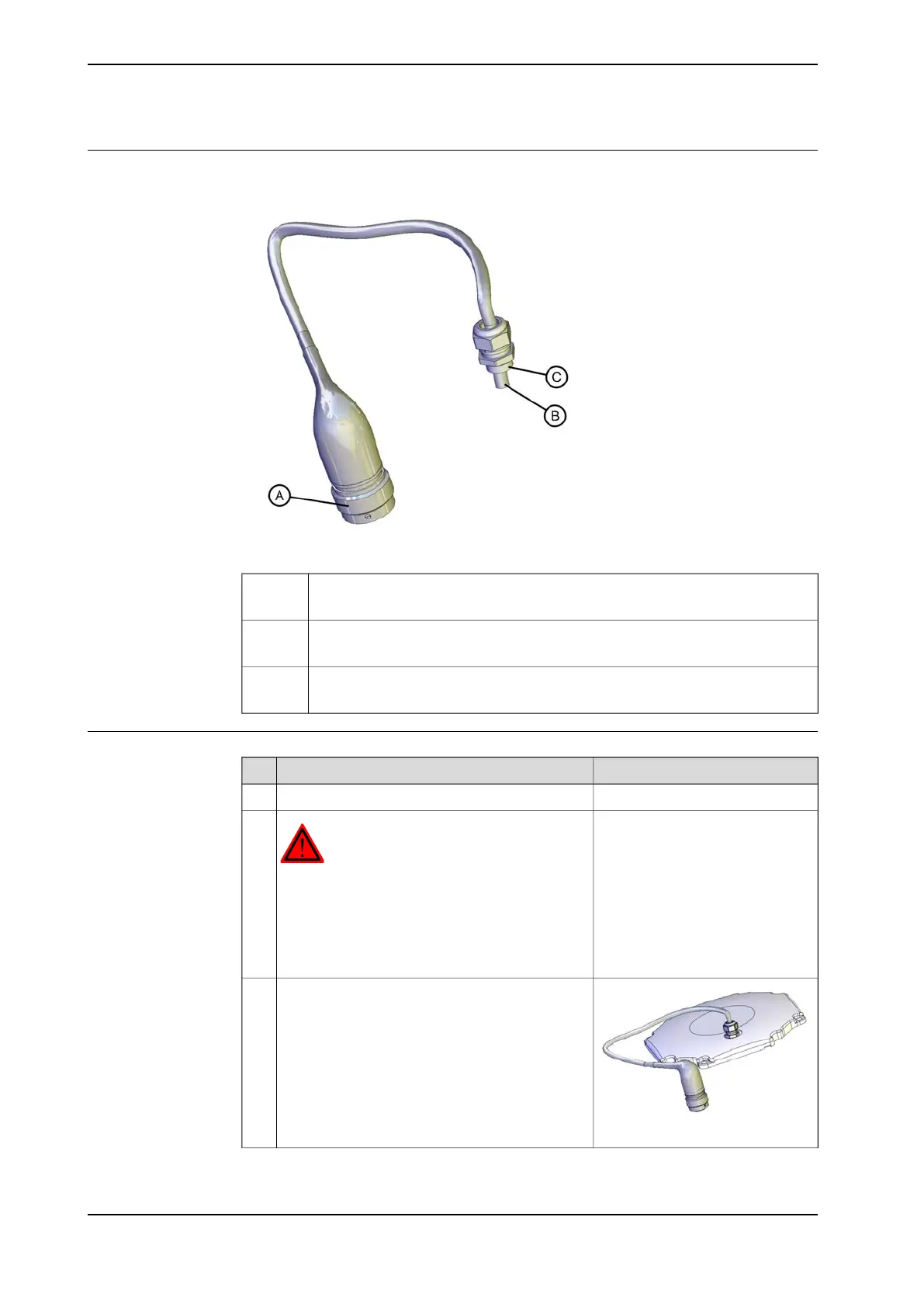

Illustration of separate cable for the fan
The figure below shows the cabling used for the fan on axis 1.
xx1300000765
Connector R3.FAN.A
Connected to the fan box.
Connector R2.FAN.B
Connected to the robot cable harness.
Screw M12x1.5.C
Secures the cable to the motor cover.
Installing the separate cable for the fan
NoteAction
Move the robot to its calibration position.1
DANGER
Turn off all:
• electric power supply to the robot
• hydraulic pressure supply to the robot
• air pressure supply to the robot
Before entering the robot working area.
2
xx1300000766
Insert the fan cable through the motor cover and
tighten the screw.
3
Continues on next page
88 Product manual - IRB 460
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
2 Installation and commissioning
2.4.1 Option 87-1 - Installing the cooling fan for axis-1 motor
Continued
