ABB IRB 460 Series - Page 89

NoteAction
R2.FB1
R2.MP1
R2.FAN1
xx1300000767

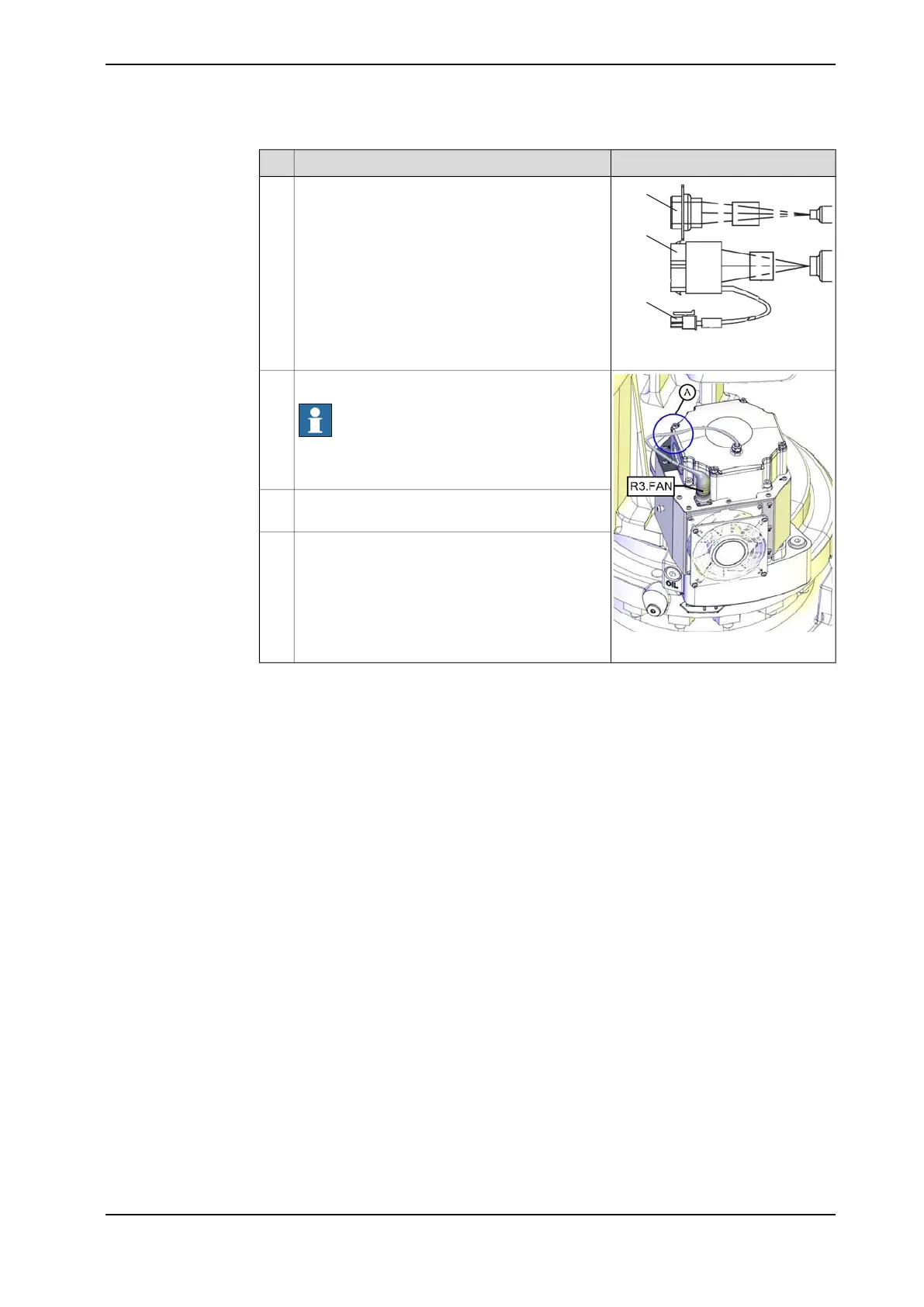

Connect the connector R2.FAN to the connector
R2.FAN1 on the robot cable harness.
4
xx1300000768
Fit the motor cover to the motor.
Note
Make sure to fit the motor cover at the correct
direction, see the figure.
5
Connect the connector R3.FAN to the connector
on the fan box.
6
Strap the cable onto the axis-1 motor cables (at
position A).
7
Product manual - IRB 460 89
3HAC039842-001 Revision: P
© Copyright 2012-2018 ABB. All rights reserved.
2 Installation and commissioning
2.4.1 Option 87-1 - Installing the cooling fan for axis-1 motor
Continued
