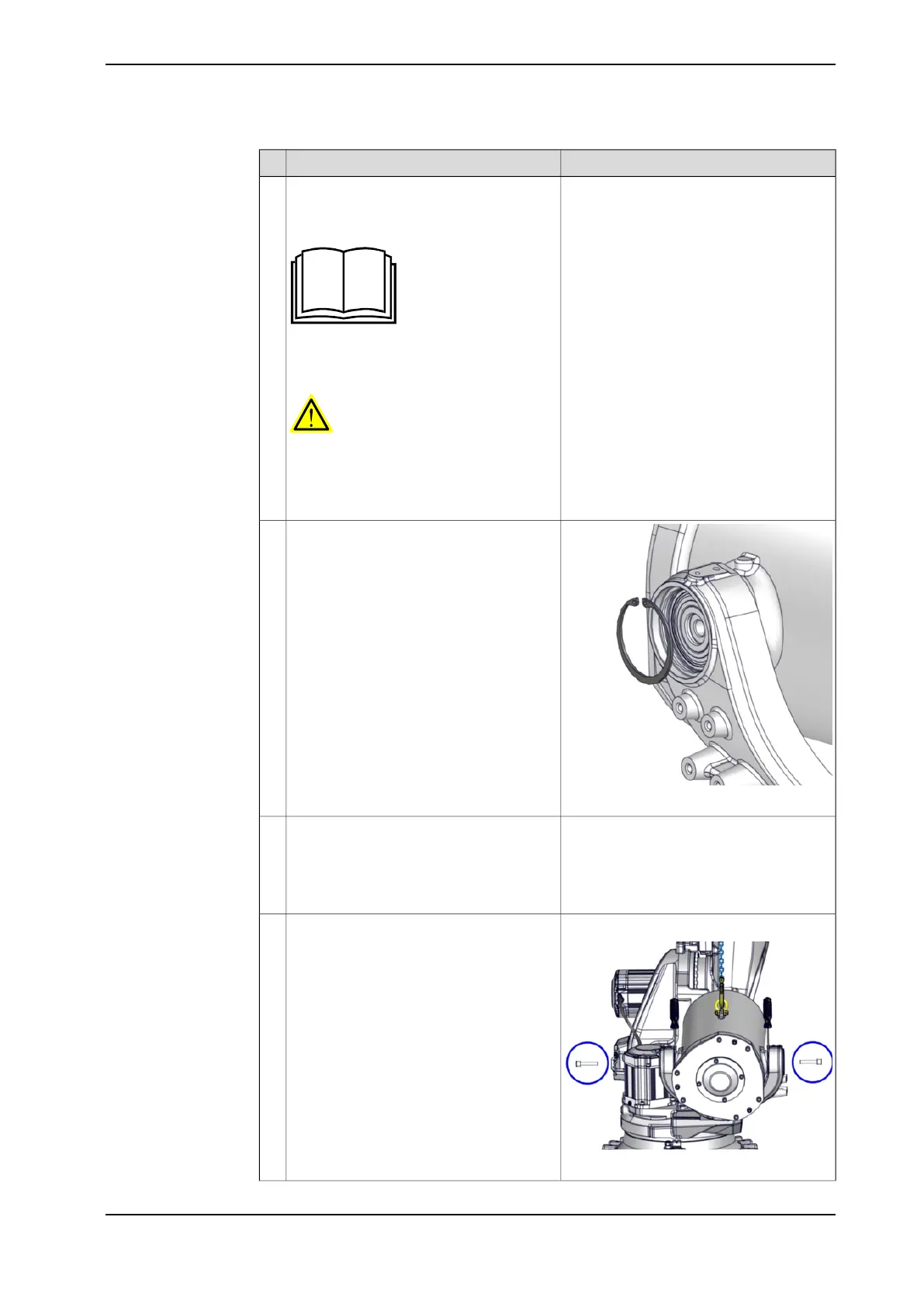

NoteAction
Dismantle and mounting tool:
3HAC028920-001
Apply a threaded bar into the hole in the
balancing device and use the dismantle
and mounting tool, according to user in-
structions enclosed with the equipment.
4
User instructions are enclosed with the
tool.
xx0900000813
Go to the user instructions enclosed with
the press tool.
DANGER
Handling the tool incorrectly will cause
serious injury.
Read and follow enclosed user instructions
for the tool.
xx2300000006
Fit the retaining ring bore.5
Hex socket head cap screw: M16x70 12.9
Gleitmo 603+Geomet 500
Apply locking liquid on the attachment
screw.
6
Washer: 3HAC047681-001
Locking liquid: Loctite 2400 (or equivalent
Loctite 243)
Tightening torque: 280 Nm.While using the screw driver between the
cradle and balancing device as a distance
tool, tighten the attachment screw com-
pletely.
7
xx2200001475
Secure the balancing device.
Continues on next page
Product manual - IRB 6710 227
3HAC085695-001 Revision: A
© Copyright 2023 ABB. All rights reserved.
5 Repair
5.3.3 Replacing the rear bearings on the balancing device
Continued
