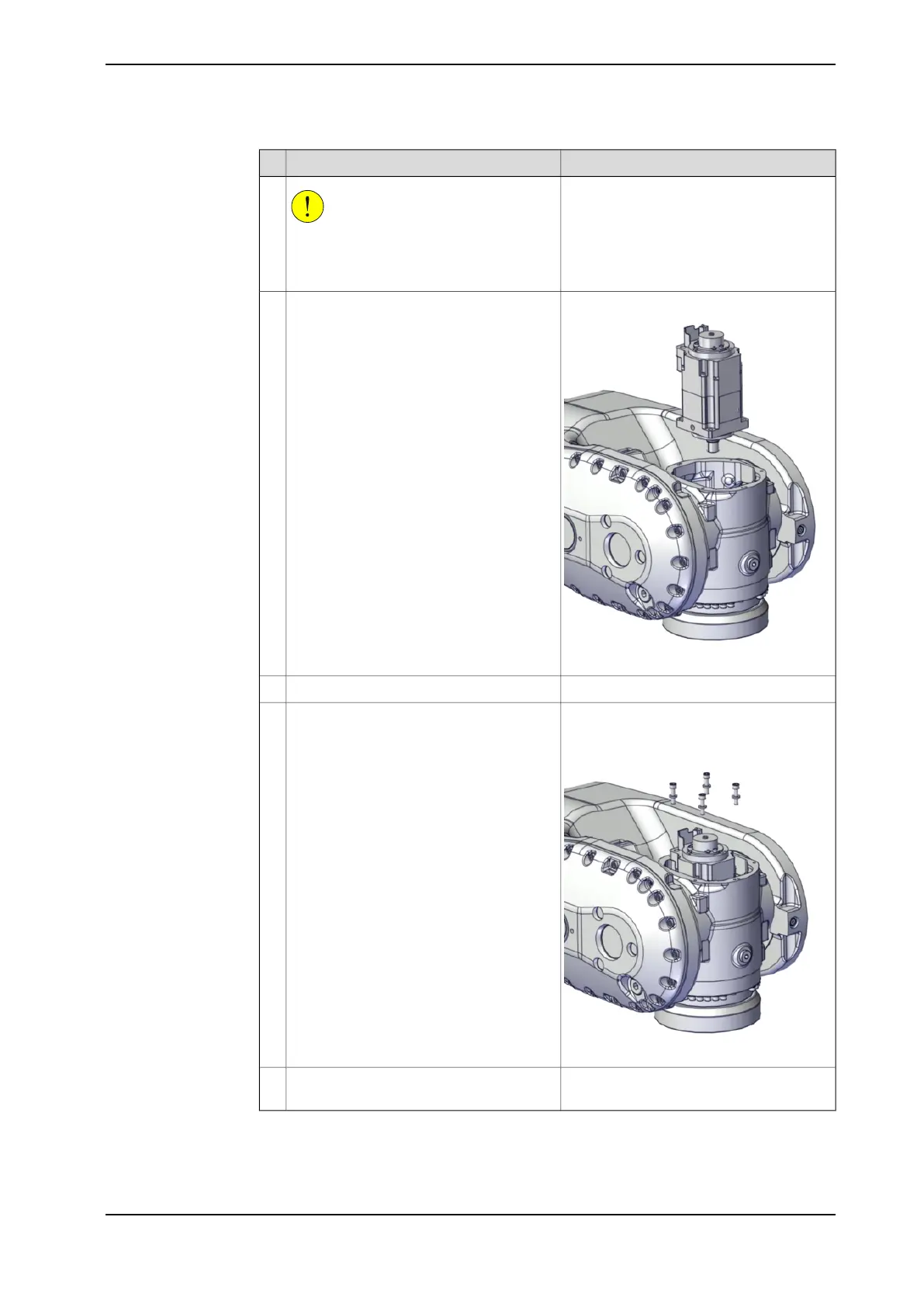

NoteAction
CAUTION
Whenever parting/mating motor and gear-
box, the gears may be damaged if excess-
ive force is used.
4
Rotation tool M3, 3HAB7887-1Use caution and lower the motor into posi-
tion on the guide pins, while at the same
time rotating the motor pinion slightly.
5
xx2000000378
Make sure that:
• the motor pinion is properly mated
to the gear of the gearbox.
• the motor pinion does not get dam-
aged.
Remove the guide pins.6
Hex socket head cap screw: M8x30 12.9
Gleitmo 603+Geomet 500 (4 pcs)
Secure the motor with its attachment
screws.
7
Tightening torque: 10 Nm
xx2000000377
See Performing a leak-down test on
page 178.
Perform a leak-down test.8
