NoteAction
Rust preventive: 3HAC034903-001 (Mer-
casol 3110 Waxcoat. Recommended dry-
ing time is 24h.)

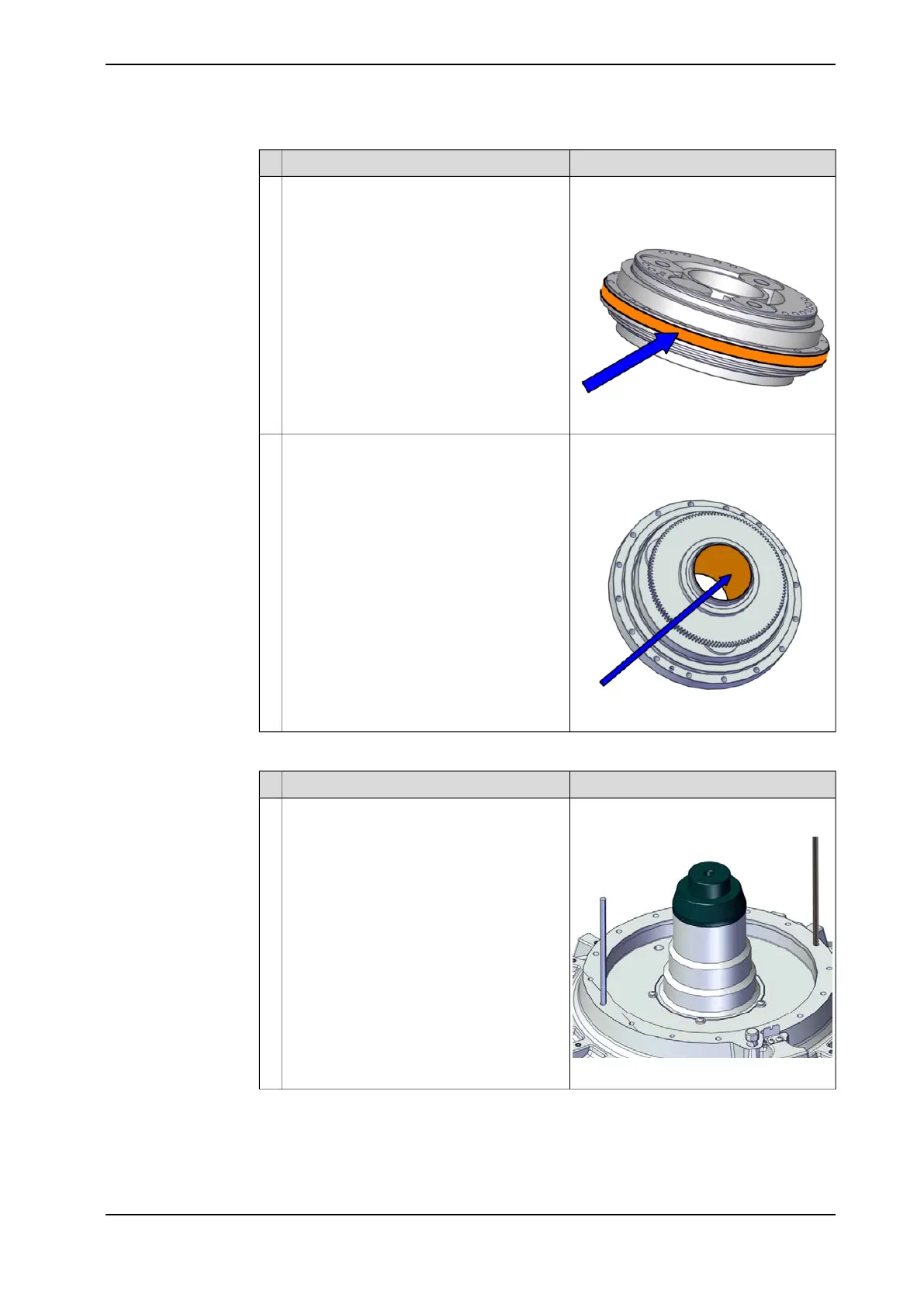

Apply rust preventive to the gearbox surface
shown in the figures.
6
xx2200001418
Rust preventive: 3HAC034903-001 (Mer-
casol 3110 Waxcoat. Recommended dry-
ing time is 24h.)
Wipe clean the inner surfaces of the hole in
axis-1 gearbox.
Protection type Foundry Plus:
7
xx2100001169
Apply rust preventive to the inner surface of
the hole, as shown in the figure.
Refitting the axis-1 gearbox to the base
NoteAction
Guide for reduction gear: 3HAC043870-
009.
Fit the guide for the gear on top of the sealing
tube.
1
xx1700002037
It protects the tube from getting damaged
when the gearbox is being fitted and later the
radial sealing from getting damaged when
the arm system is fitted.
Continues on next page
Product manual - IRB 6710 455
3HAC085695-001 Revision: A
© Copyright 2023 ABB. All rights reserved.
5 Repair
5.8.1 Replacing the axis-1 gearbox
Continued
