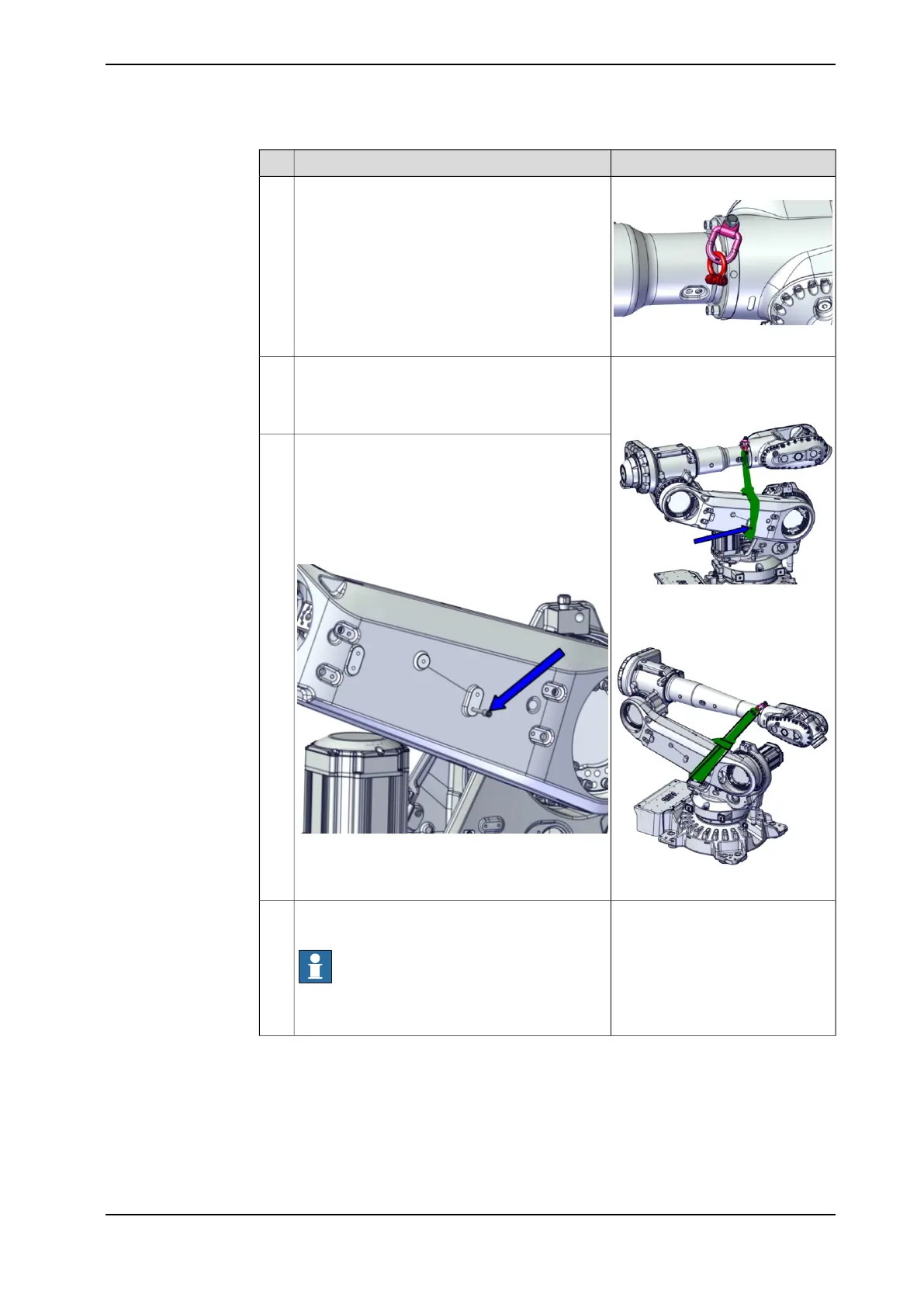

Lifting shackle: SA-10-8-NA1Fit a lifting shackle in the wrist lifting eye.3
xx2100001414
Roundsling, 1.5 mRun a roundsling around the lower arm.4
Example where securing screw is
needed:
If DressPack cable package is installed: place the
roundsling beneath the ball joint housing on the
outside of the lower arm instead.
xx2100001415
Attach the roundsling to the shackle on the wrist.
If there is a risk that the roundsling will slide (de-
pends on robot variant), insert a M12x50 securing
screw, not more than 10-15 mm, into the screw
hole shown in the figure.
If DressPack cable package is installed: use the
ball joint housing instead, in the same way.
xx2100001412
5
Example where securing screw is
not needed:
xx2100001469
Stretch the roundsling between the wrist and the
lower arm by slowly jogging the axis-3.
Note
Make sure the roundsling is stretched, in order to
carry the weight of the lower arm.
6
Continues on next page
Product manual - IRB 6710 485
3HAC085695-001 Revision: A
© Copyright 2023 ABB. All rights reserved.
5 Repair
5.8.2 Replacing the axis-2 gearbox
Continued
